Sony HCD-FX10 - Motor (Roller) Assy (Roller)(M781); Motor (Mode) Assy (Mode)(M771)

16
HCD-FX10
1 belt (roller V)
4 ROLLER MOTOR board
2 Remove two solders.
5 motor (roller) assy
(roller)(M781)
3 two screws
(+BVTP2.6)
1 Remove five solders
of rotary encoder.
2 Remove two solders
of motor (M771)
MODE MOTOR
board
4 MODE MOTOR board
5 belt (mode V)
6 motor (mode) assy
(mode) (M771)
3 two screws
(+BVTP2.6)

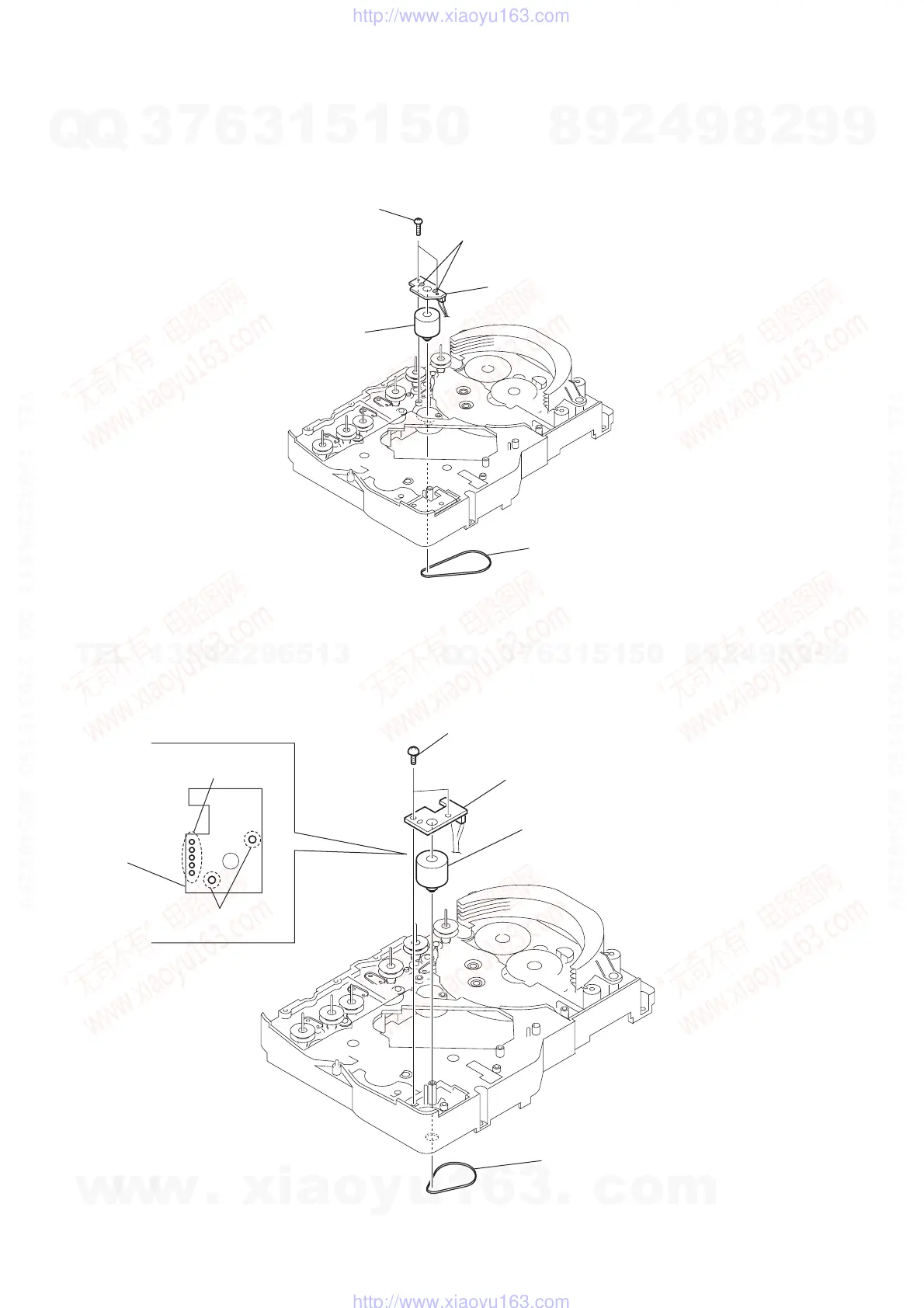

3-14. MOTOR (ROLLER) ASSY (ROLLER)(M781)
3-15. MOTOR (MODE) ASSY (MODE)(M771)
