HCD-FX10
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
301 1-686-725-13 STOCKER MOTOR BOARD
302 3-087-053-01 +BVTP2.6 (3CR)
303 4-239-690-01 CAM (STOCKER U/D)
304 4-239-618-02 SCREW (+PWH, 2X6), STEP TAPPING
305 4-239-676-01 STOCKER
306 4-239-687-01 GEAR (STOCKER COMMUNICATION)
307 A-4731-113-A RELAY BOARD, COMPLETE
(including ST ENCODER BOARD)
308 4-239-689-01 GEAR (STOCKER DECELERATION)
309 4-239-699-01 PULLEY
310 4-211-237-01 BELT (MODE)
311 1-828-399-11 WIRE (FLAT TYPE) (27 CORE)
312 4-986-156-01 PULLEY, MOTOR
313 1-763-967-11 MOTOR, DC
M761 A-4735-953-A MOTOR (STOCKER) ASSY (STOCKER)
S702 1-477-299-11 ENCODER, ROTARY (STOCKER POSITION)
#7 7-685-902-21 SCREW +PTPWH 2.6X8 (TYPE2)

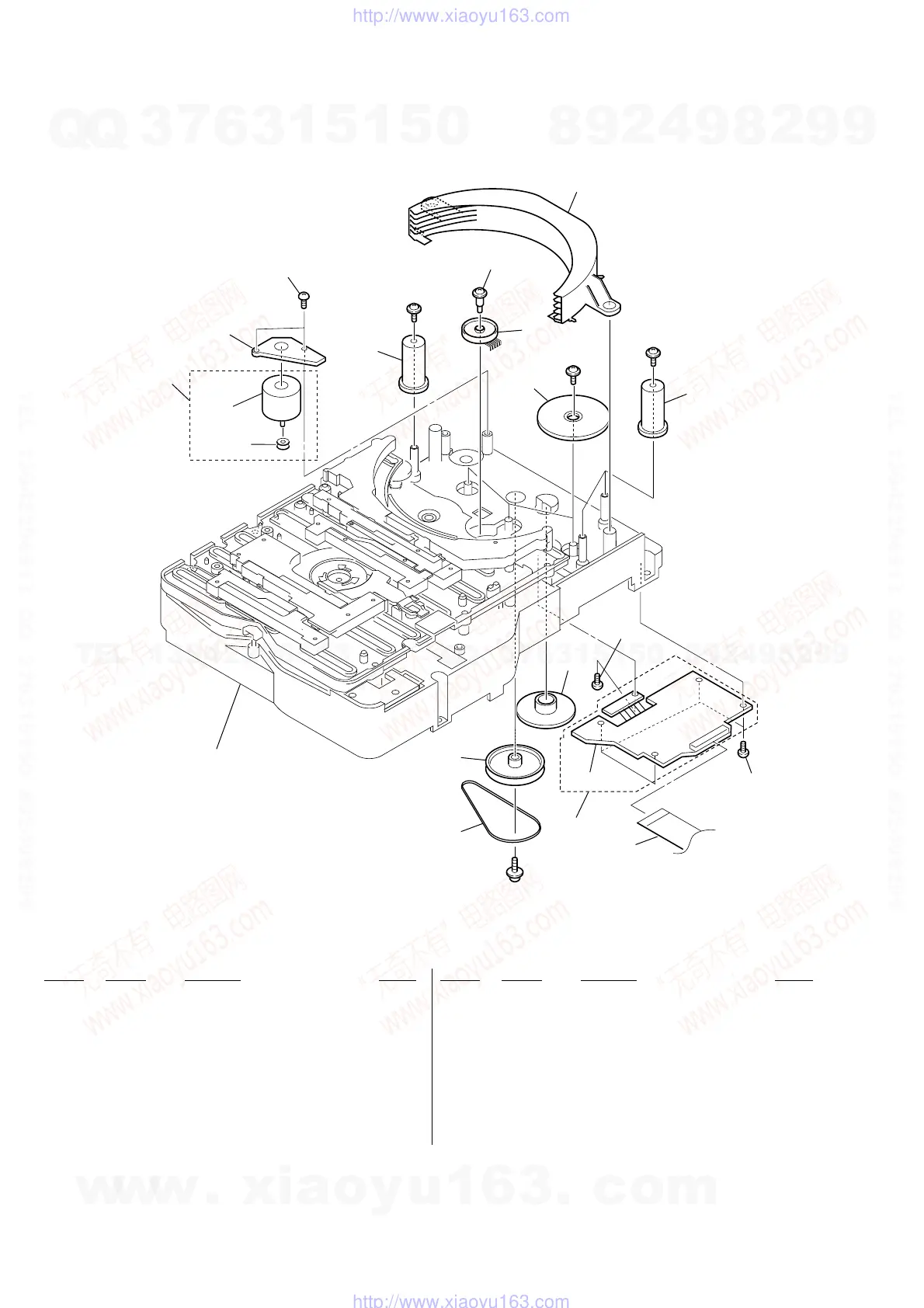

7-5. DVD MECHANISM DECK SECTION-1 (CDM69EH-DVBU101)
308
302
307
309
310
311
302
306
301
302
303
304
M761
#7
#7
#7
#7
303
S702
305
DVD mechanism deck section-2
not supplied
312
313
