Sony HCD-FX10 - Optical Pick-Up (KHM-310 CAB;C2 NP); SW Board, Bracket (Top) Assy

14
HCD-FX10

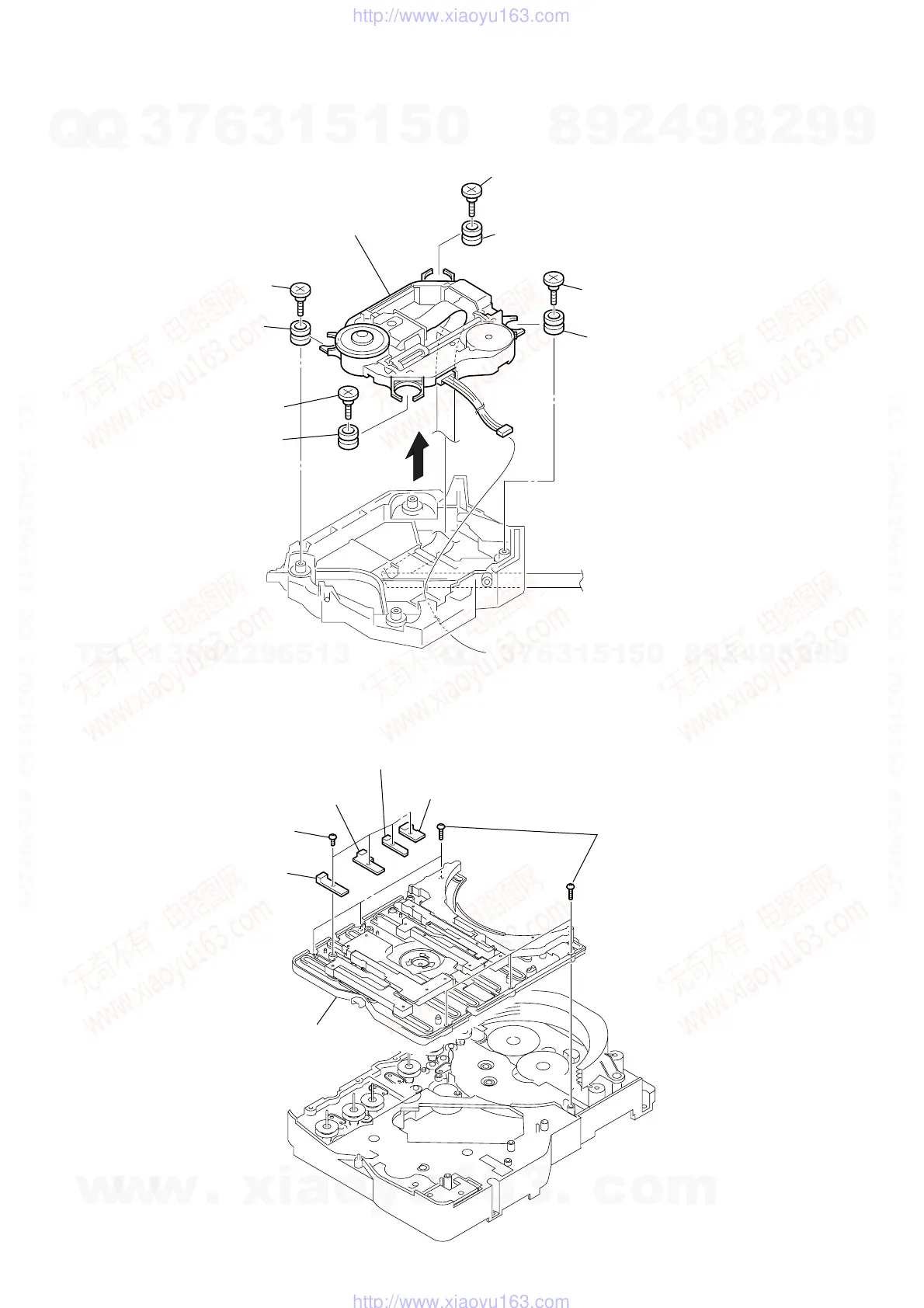

3-11. SW BOARD, BRACKET (TOP) ASSY
3-10. OPTICAL PICK-UP (KHM-310CAB/C2NP)
3 insulator screw
4 insulator screw
2 insulator screw
1 insulator screw
8 insulator
9 insulator
7 insulator
6 insulator
0 optical pick-up
(KHM-310CAB/C2NP)
5
6 six screws
(+BVTP2.6)
5 SW (4) board
4 SW (3) board
3 SW (2) board
2 SW (1) board
7 bracket (top) assy
1 four screws
(+BTP2.6
× 6)
