Sony HCD-FX10 - Top Panel Sub Assy

9
HCD-FX10

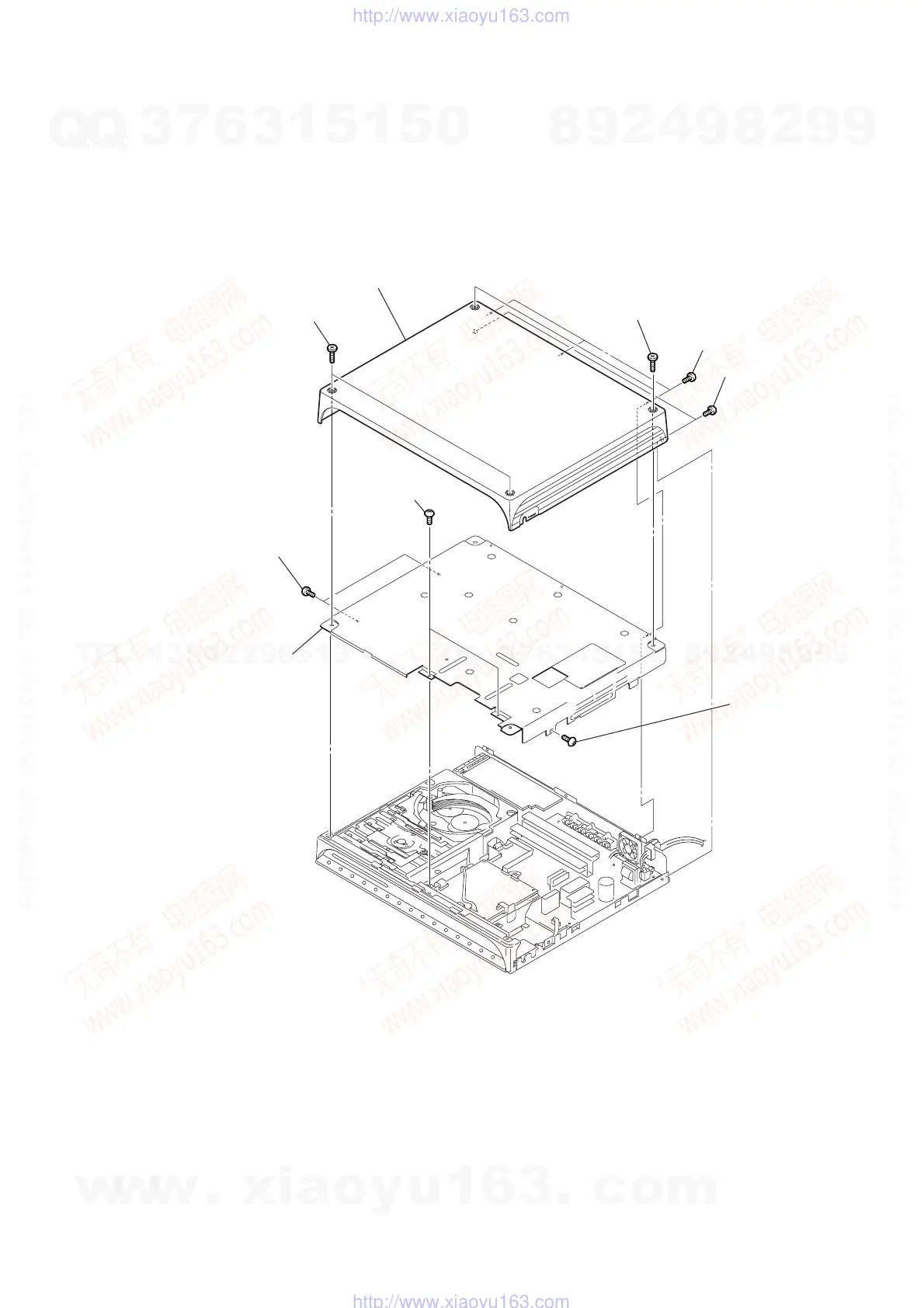

3-2. TOP PANEL SUB ASSY
Note: Follow the disassembly procedure in the numerical order given.
2 two flat head screws (TP)
1 two flat head screws (TP)
5 top panel sub assy
9 chassis (top) sub assy
3 two screws
(+BVTP 3
× 8)
4 three screws
(+BVTP 3
× 6)
8 screw
(+BVTP 3
× 6)
7 two screws
(+BVTP 3
× 6)
6 two screws
(+BVTP 3
× 6)
