Sony HCD-FX10 - Printed Wiring Board - FL;KEY Section

5151
HCD-FX10
HCD-FX10

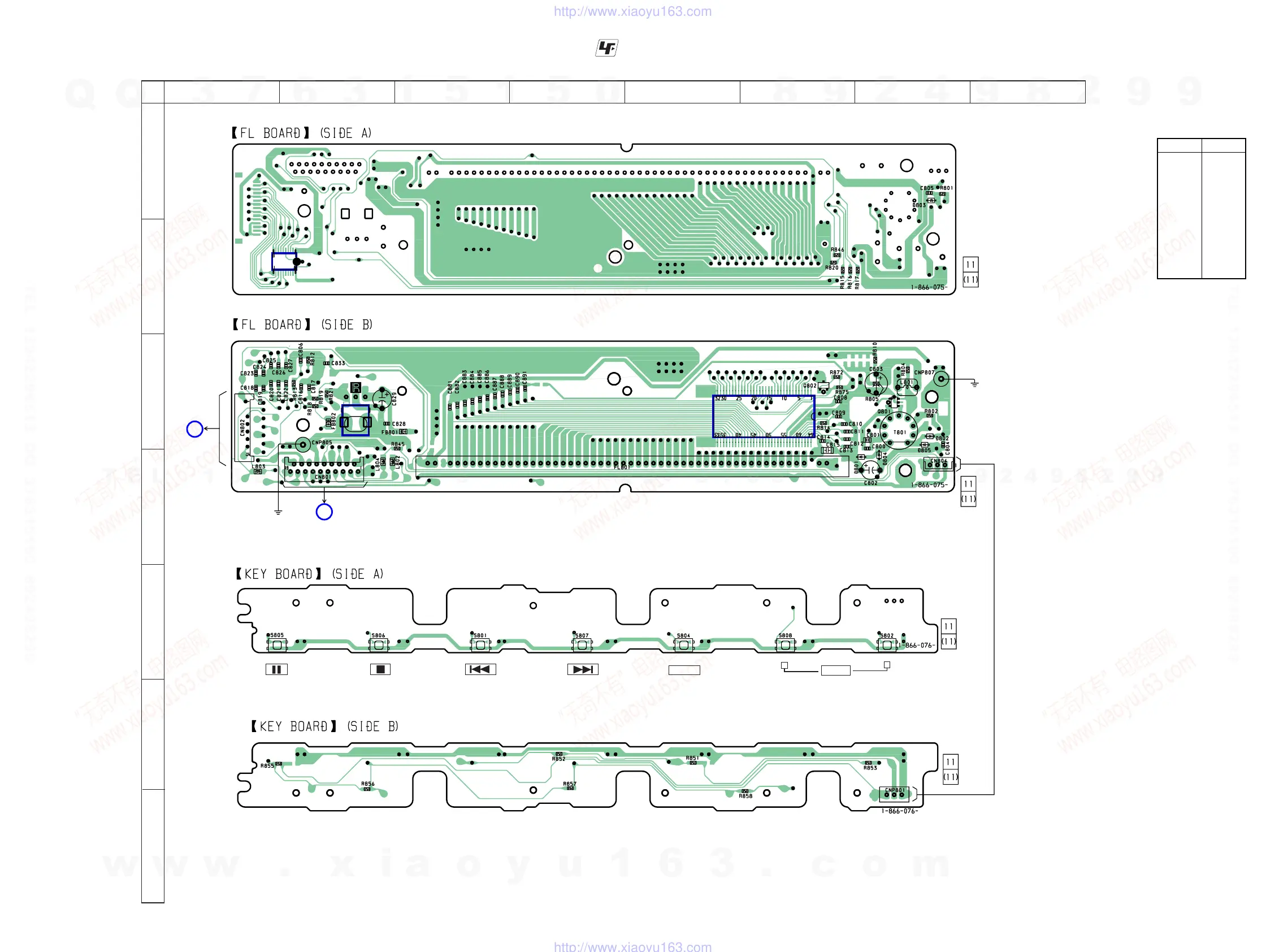

6-20. PRINTED WIRING BOARD – FL/KEY SECTION –
• Semiconductor
Location
Ref. No. Location
D801 D-7
D802 C-7
D803 B-7
D804 D-7
D805 C-7
IC801 C-2
IC802 B-2
IC803 C-6
Q801 C-7
Q802 C-6
• See page 27 for Circuit Boards Location. :Uses unleaded solder.
IC802
IC801
IC803
E
MAIN BOARD
CN509
(Page 42)
(CHASSIS)
3
1
2
4
5
1
E
(FLUORESENT INDICATOR TUBE)
54
J
LED BOARD
CN803
(Page 53)
(CHASSIS)
18
2
1
3
FUNCTION
+
-
VOLUME
12
A
B
C
D
E
G
F
34567
8
