Sony HCD-FX10 - Printed Wiring Board - LED; H;P Section

5353
HCD-FX10
HCD-FX10

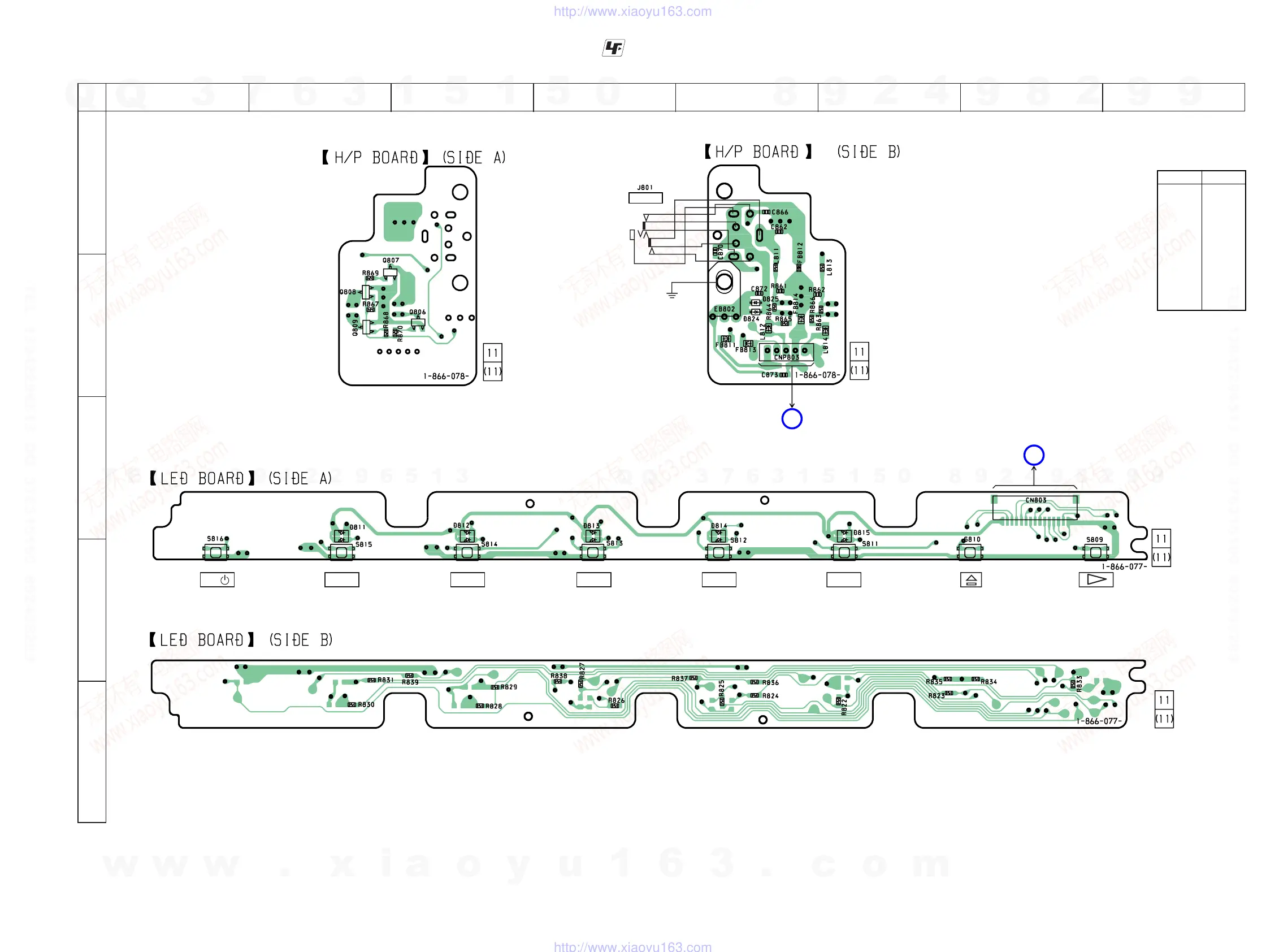

6-22. PRINTED WIRING BOARD – LED / H/P SECTION –
• Semiconductor
Location
Ref. No. Location
D811 D-2
D812 D-3
D813 D-4
D814 D-5
D815 D-6
D824 B-5
D825 B-5
Q806 B-3
Q807 B-3
Q808 B-2
Q809 B-2
• See page 27 for Circuit Boards Location. :Uses unleaded solder.
DISC1 DISC2 DISC3 DISC4 DISC5
J
FL BOARD
CN802
(Page 51)
1
15
I /
E
E
E
E
PHONES
(CHASSIS)
H
MAIN BOARD
CN309
(Page 42)
51
12
A
B
C
D
E
34567
8
