81
HCD-FX10

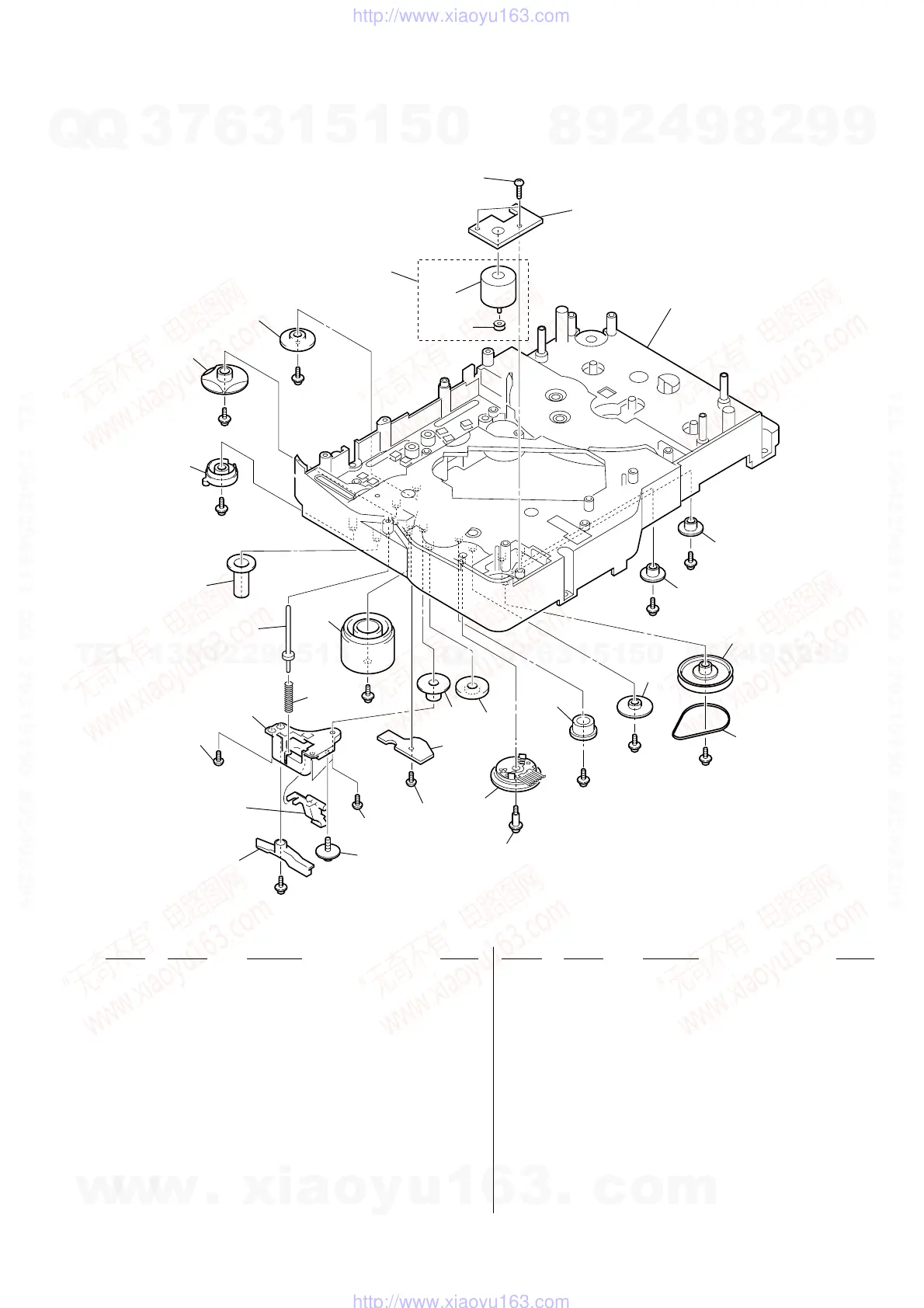

7-10. DVD MECHANISM DECK SECTION-6 (CDM69EH-DVBU101)
558
559
563
568
575
576
551
569
570
564
554
565
553
#7
#7
#7
#7
#7
#7
#7
#7
#7
#7
not
supplied
not supplied
M771
557
562
572
560
552
563
563
571
563
566
567
561
S771
555
555
551 4-239-693-02 CAM (GEAR)
552 1-686-723-13 SENSOR BOARD
553 4-239-696-01 GEAR (EJECT LOCK)
554 4-239-695-02 CAM (EJECT LOCK)
555 4-240-019-01 GEAR (MODE 5)
557 4-243-682-01 GEAR (MODE C)
558 4-239-683-01 PULLEY (MODE DECELERATION)
559 4-243-702-01 BELT (MODE V)
560 4-243-683-01 GEAR (MODE D)
561 4-239-618-02 SCREW (+PWH, 2X6), STEP TAPPING
562 4-243-681-01 GEAR (MODE B)
563 3-087-053-01 +BVTP2.6 (3CR)
564 4-239-692-02 CAM (BU U/D)
565 4-239-694-01 GEAR (MODE CAM)
566 4-241-731-01 SHUTTER (A), LEVER
567 4-241-732-01 SHUTTER (B), LEVER
568 1-763-967-11 MOTOR, DC
569 4-241-734-01 SHAFT (SHUTTER)
570 4-241-735-01 SPRING (SHUTTER), COMPRESSION
571 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
572 4-243-680-01 GEAR (MODE A)
575 1-686-724-13 MODE MOTOR BOARD
576 4-986-156-01 PULLEY, MOTOR
M771 A-4735-953-A MOTOR (STOCKER) ASSY (MODE)
S771 1-477-300-11 ENCODER, ROTARY (MODE)
#7 7-685-902-21 SCREW +PTPWH 2.6X8 (TYPE2)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
