Sony HCD-GN77D - Disassembly: DVD Mechanism and Game Board; 3-5. DVD Mechanism Deck Disassembly; 3-6. Game In Board and Tape Mechanism Deck Disassembly

10
HCD-GN77D

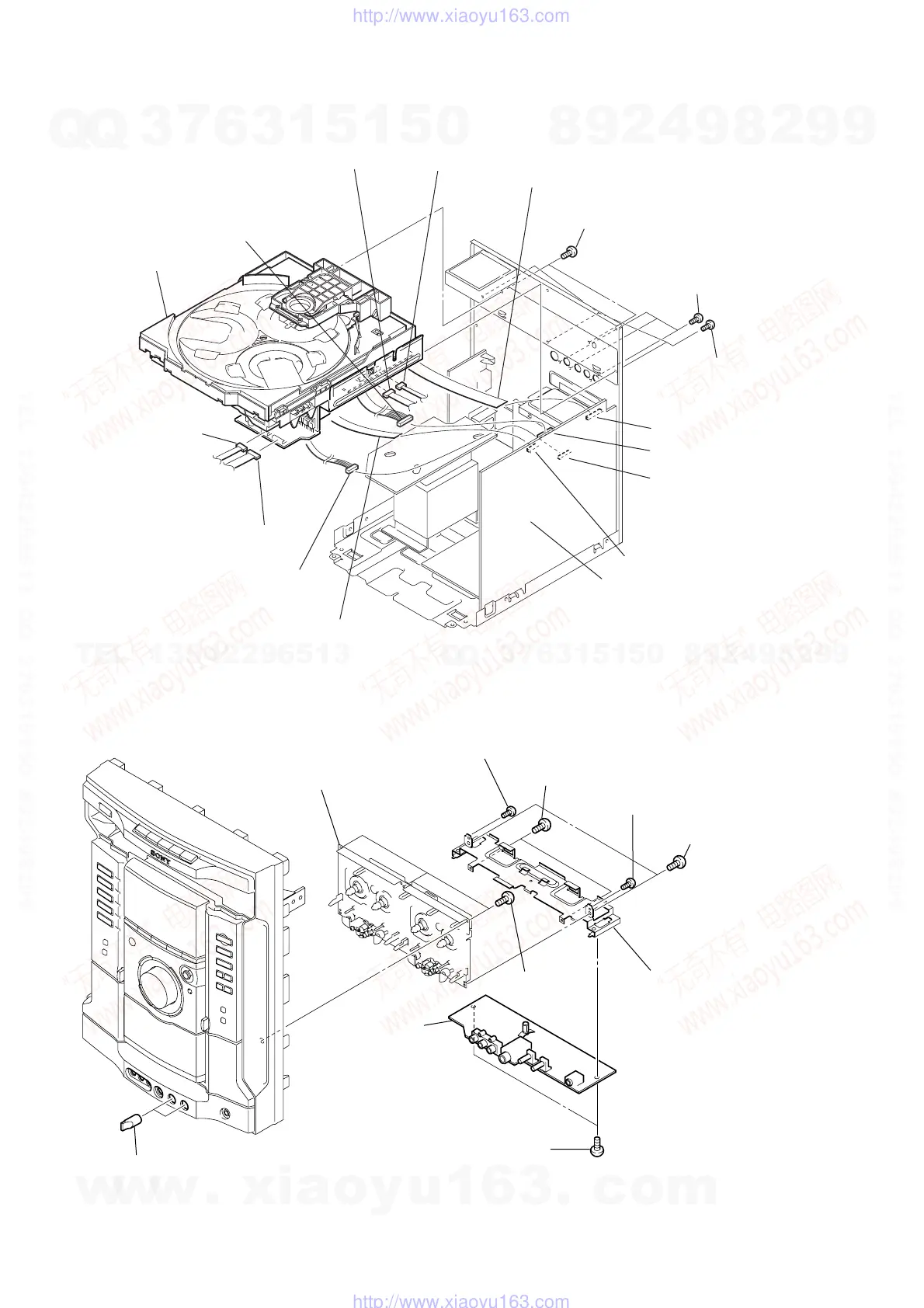

3-5. DVD MECHANISM DECK
3-6. GAME IN BOARD, TAPE MECHANISM DECK
qs DVD mechanism deck
4 Wire (flat type) (20 core)
5 Connector
(CN711)
3 Two screws (BVTP3 x 10)
1 Three screws
(BVTP3 x 10)
2 Three screws
(BVTT3 x 6)
6 Connector
(CN710)
MAIN board
CN206
CN202
CN203
CN201
qa Connector
q; Connector
9 Connector
(CN713)
8 Connector
(CN714)
7 Wire (flat type)
(7 core)
8 Tape mechanism deck
7 Three screws
(+BVTP2.6 x 8)
Shield plate (GHX)
2 Screw (+PTT2 x 4)
2 Screw (+PTT2 x 4)
4 Tw o screws (+BVTP2.6 x 8)
3 Tw o screws
(+BVTP2.6 x 8
)
5 Tw o screws
(+BVTP2.6 x 8)
6 GAME IN board
1 Tw o knobs (MIC)
