Sony HCD-GN77D - Disassembly: Sensor and Motor Boards; 3-15. Sensor Board Disassembly; 3-16. Motor (TB) Board Disassembly

15
HCD-GN77D

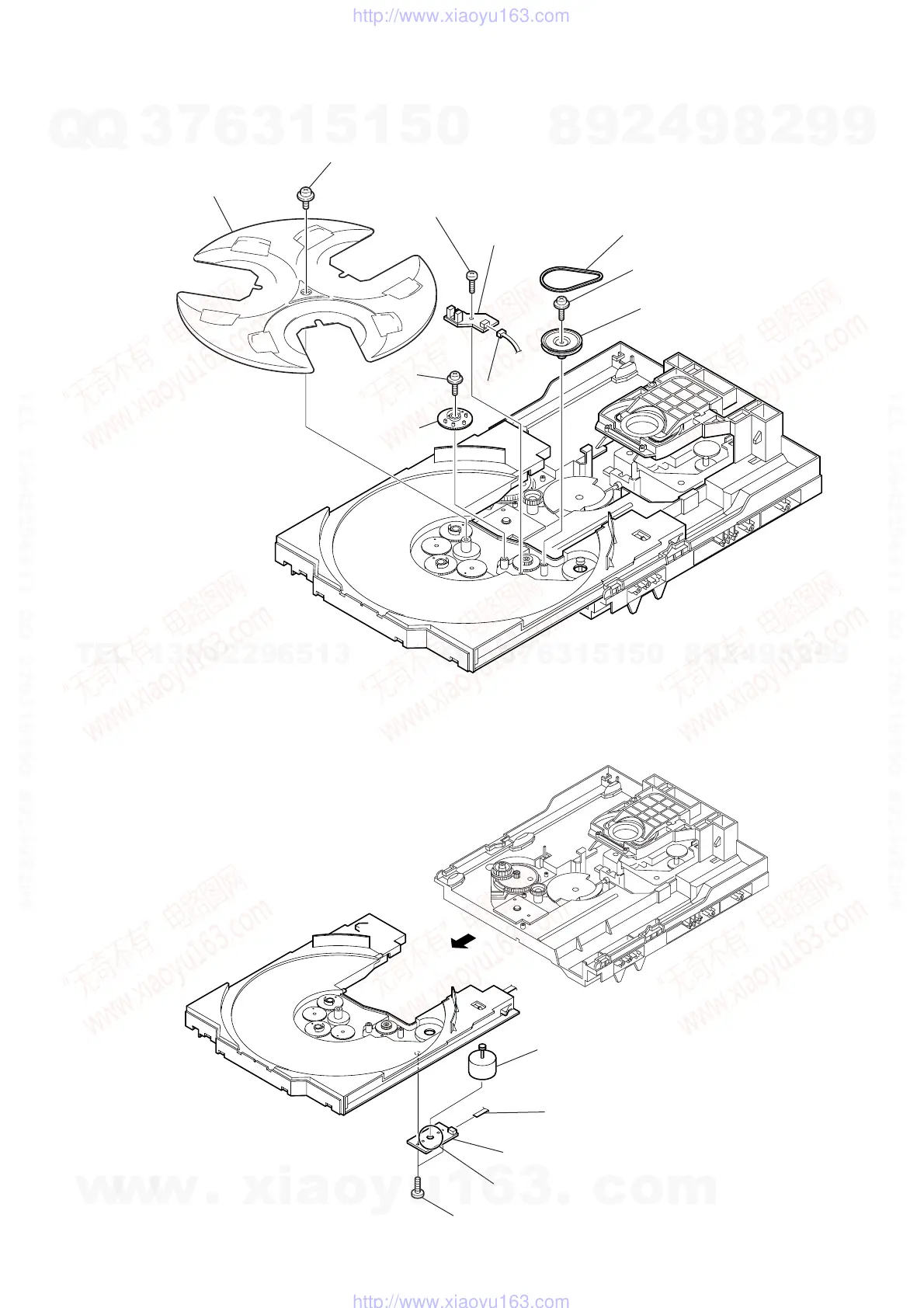

3-15. SENSOR BOARD
3-16. MOTOR (TB) BOARD
2 Tray
3 Belt (table)
5 Pulley (table)
8 Screw
(+BTTP (M2.6))
9 SENSOR board
7 Gear (geneva)
0 CN731
1 Floating screw
(+PTPWH M2.6)
6 Floating screw
(+PTPWH M2.6)
4 Foating screw
(+PTPWH M2.6)
5 Remove the two solderings of motor.
4 MOTOR (TB) board
2 CN742 (flat type)
6 Table motor ASSY (M741)
3 Two screws
(+BTTP (M2.6))
1
