Sony HCD-GN77D - Disassembly: SW Board and RF Board; 3-13. SW Board and Driver Board Disassembly; 3-14. RF Board and Pick-up Unit Disassembly

14
HCD-GN77D

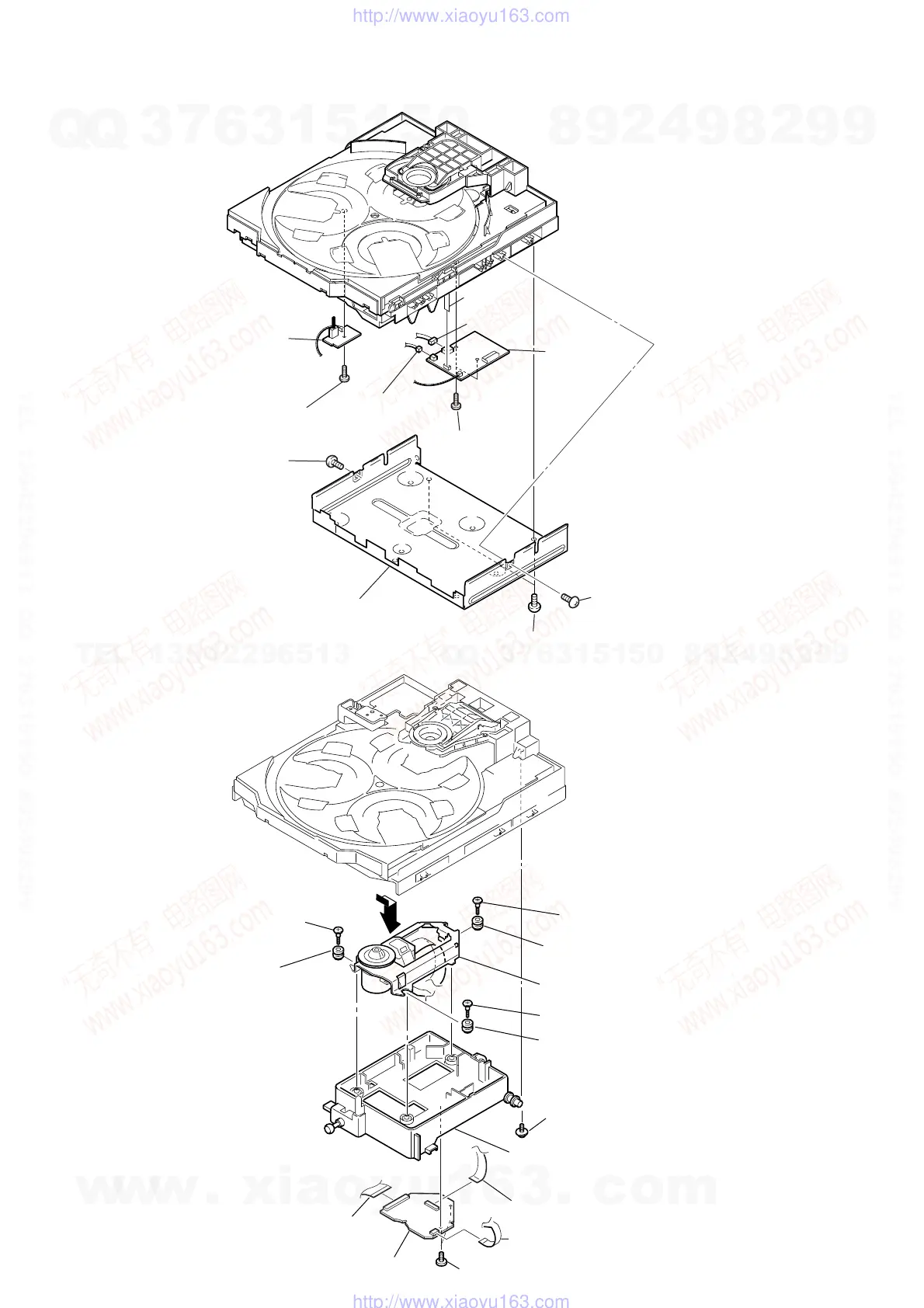

3-13. SW BOARD, DRIVER BOARD
3-14. RF BOARD, PICK-UP UNIT
9 DRIVER board
5 SW board
6 CN704
7 CN703
0 CN702
(flat type)
8 Two screws
(+BTTP (M2.6))
4 Screw
(+BTTP (M2.6))
1 Screw
(+BVTP 3x8
)
3 Bracket DVD
2 Tw o screws
(+BVTP 3x8)
1 Screw
(+BVTP 3x8)
qs Insulator
7
qd
Insulator
qa Insulator
qg Holder (DBU) assy
3 Flat type wire
4 Flat type wire
2 Two screws (+BTTP 2.6)
5 RF board
1 Flat type wire
9 Step screw (M)
0 Step screw (M)
6 Floating screw (PTPWH M2.6
)
8 Step screw (M)
qf Pick-up unit
