83
HCD-GN77D
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

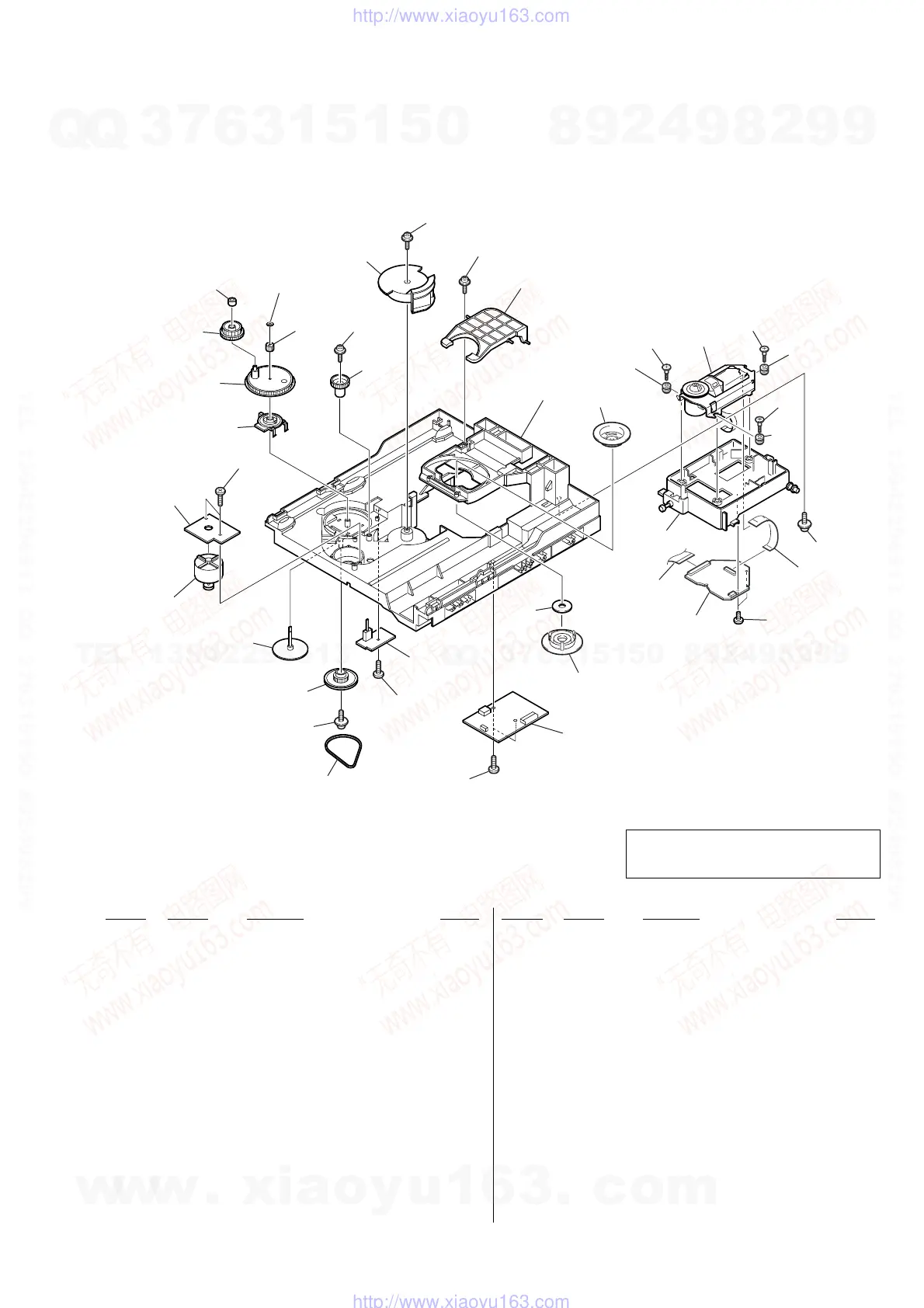

8-5. DVD MECHANISM DECK SECTION-2
(CDM74D-DVBU23)
201
202
202
202
203
204
205
206
207
208
210
211
212
213
214
215
216
217
219
222
222
224
227
225
228
226
223
223
222
223
229
209
220
230
218
205
205
205
M751
RE701
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
201 1-687-135-11 DRIVER BOARD
202 4-218-253-31 SCREW (M2.6), +BTTP
203 1-687-669-11 SW BOARD
204 4-244-034-01 BELT (LOADING)
205 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING
206 4-225-844-01 GEAR (LOADING A)
207 4-224-613-01 GEAR (SHAFT)
208 1-687-133-11 MOTOR (LD) BOARD
209 4-243-817-11 CHASSIS
210 4-244-108-01 GEAR, SWING
211 4-224-609-01 GEAR (LOADING C)
212 4-224-608-01 COLLAR, SWING
213 3-016-533-01 WASHER (FR), STOPPER
214 4-224-611-01 GEAR (LOADING B)
215 4-224-606-01 GEAR (RV)
216 4-243-818-01 GEAR (U/D)
217 4-243-822-01 LEVER (LIFTER)
218 X-4954-450-1 PULLEY (240) ASSY
219 4-233-594-01 PULLEY (B) (DVD), CHUCKING
220 X-4955-538-1 HOLDER (DBU) ASSY
222 3-053-847-31 INSULATOR
223 4-981-923-01 SCREW (M), STEP
224 4-218-252-51 SCREW (+PTPWH M2.6), FLOATING
225 4-218-253-11 SCREW (M2.6), +BTTP
226 1-775-265-11 WIRE (FLAT TYPE) (29 CORE)
227 1-824-106-12 CABLE, FLEXIBLE FLAT (24 CORE)
228 A-4728-690-A RF BOARD, COMPLETE
0229 1-477-263-11 OPTICAL PICK-UP (TDP022W)
230 3-053-844-01 YOKE
M751 A-4737-553-A MOTOR ASSY, LOADING
RE701 1-477-680-11 ENCODER, ROTARY
