HCD-GN77D
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

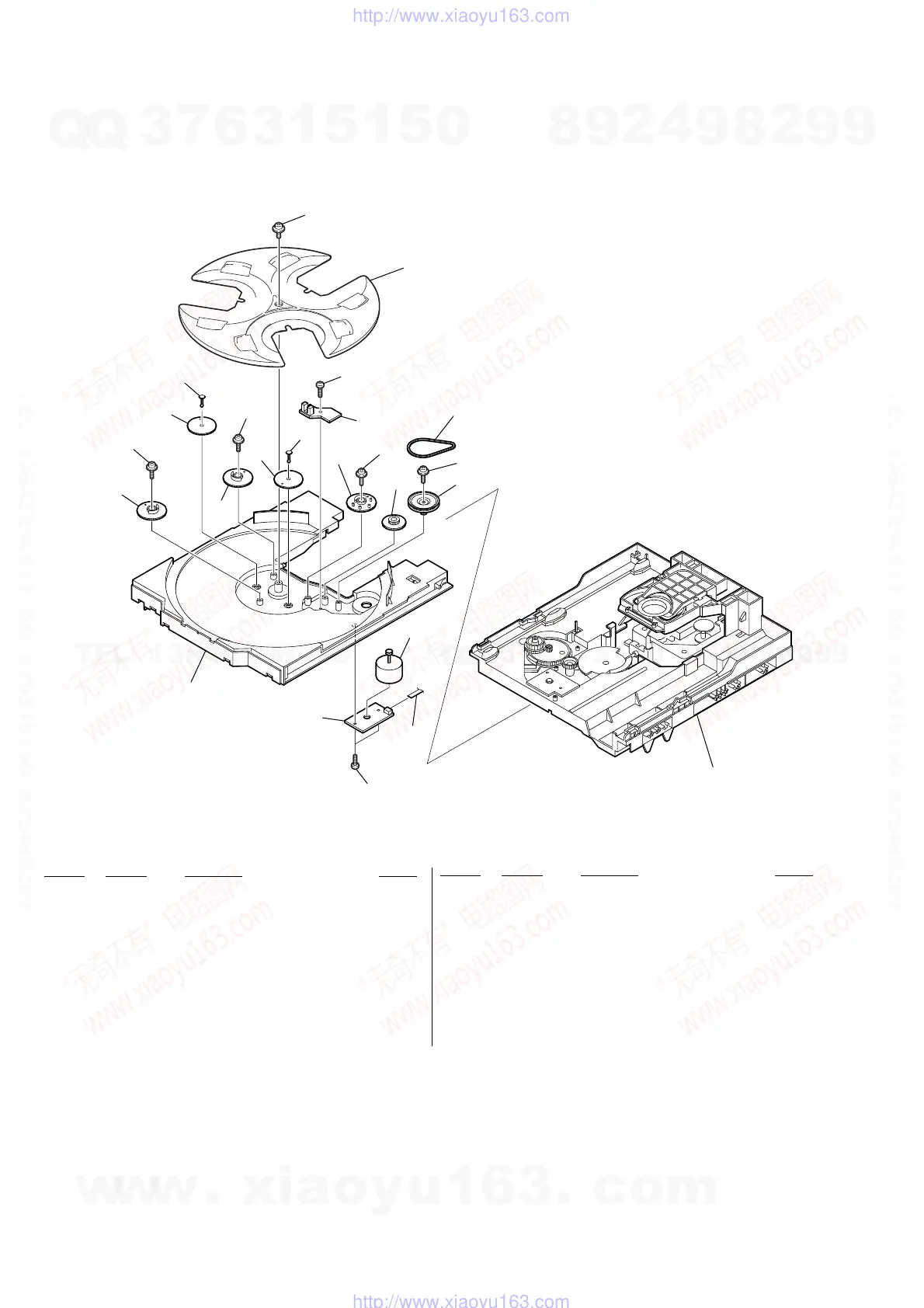

8-4. DVD MECHANISM DECK SECTION-1
(CDM74D-DVBU23)
151
152
153
154
155
155
156
156
157
157
158
158
159
151
156
162
163
164
165
160
161
164
M741
chassis assy
151 4-218-253-21 SCREW (M2.6), +BTTP
152 1-776-182-11 WIRE (FLAT TYPE) (5 CORE)
153 1-687-134-11 MOTOR (TB) BOARD
154 4-243-815-01 TABLE (LOADING)
155 4-245-571-01 GEAR (STOPPER)
156 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING
157 4-245-570-01 GEAR (JOINT)
158 4-245-572-01 BUSHING (GEAR)
159 1-687-132-11 SENSOR BOARD
160 4-243-820-01 GEAR (TABLE)
161 4-243-819-01 GEAR (GENEVA)
162 4-243-816-01 TRAY
163 4-243-823-01 BELT (TABLE)
164 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
165 4-243-821-01 PULLEY (TABLE)
M741 A-4723-963-A MOTOR ASSY, TABLE
