HCD-GN77D

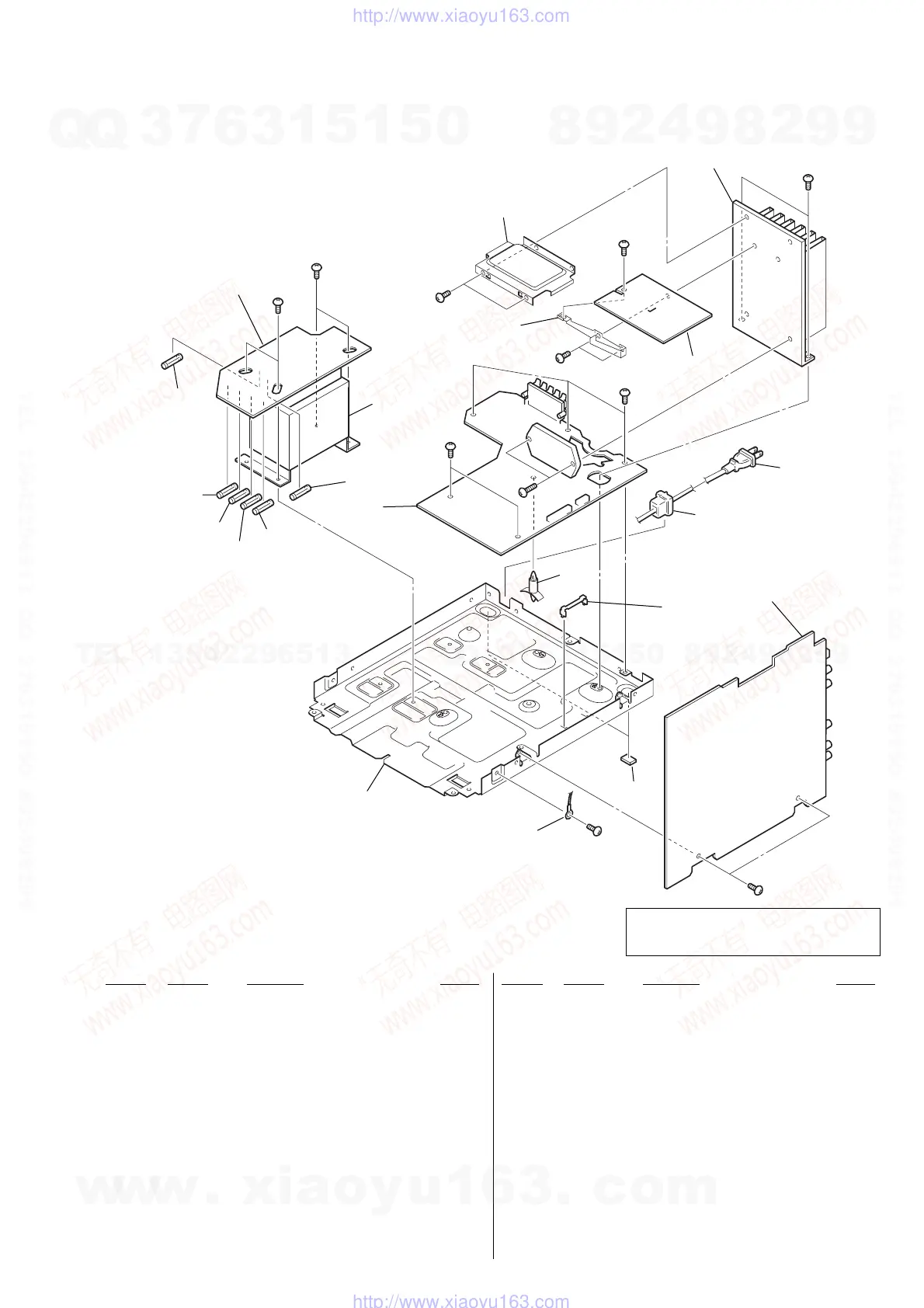

8-3. CHASSIS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
102
107
108
103
104
105
109
106
101
not
supplied
not
supplied
not
supplied
not
supplied
F976
T910
F977
F975
F978
F979
not
supplied
#5
#5
#1
#1
#3
#1
#1
#1
#3
#1
#1
F974
101 1-686-930-11 TRANS BOARD
102 A-4732-880-A SURROUND BOARD, COMPLETE (EXCEPT TH)
102 A-4734-255-A SURROUND BOARD, COMPLETE (TH)
0103 1-777-071-53 CORD, POWER (EA,SP,MY)
0103 1-824-818-11 CORD, POWER (TH)
0103 1-827-226-11 CORD, POWER (E15,E3)
* 104 3-703-244-00 BUSHING (2104), CORD (EA,SP,MY,TH)
104 3-703-571-11 BUSHING (S) (4516), CORD (E15,E3)
105 A-4732-874-A MAIN BOARD, COMPLETE (E15,E3,EA)
105 A-4733-140-A MAIN BOARD, COMPLETE (SP,MY)
105 A-4734-500-A MAIN BOARD, COMPLETE (TH)
106 4-225-252-01 CUSHION (FOOT)
107 A-4732-894-A POWER BOARD, COMPLETE (EXCEPT TH)
107 A-4734-595-A POWER BOARD, COMPLETE (TH)
108 4-943-687-01 HOLDER, PC BOARD
* 109 4-988-533-01 HOLDER, PWB
0F974 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) (T6.3AL 250V)
0F975 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) (T6.3AL 250V)
0F976 1-576-655-11 FUSE, GLASS TUBE (DIA. 5) (T8AL 250V)
0F977 1-576-655-11 FUSE, GLASS TUBE (DIA. 5) (T8AL 250V)
0F978 1-533-471-11 FUSE, GLASS TUBE (DIA. 5) (T4AL 250V)
0F979 1-533-470-11 FUSE, GLASS TUBE (DIA. 5) (T3.15AL 250V)
0T910 1-439-742-11 TRANSFORMER, POWER (E15,E3,SP,MY,TH)
0T910 1-439-841-11 POWER TRANSFORMER (EA)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#3 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
#5 7-685-881-09 SCREW +BVTT 4X8 (S)
