Sony HCD-GN77D - Printed Wiring Boards: DMB03 Board (Side B); IC Component Locations

HCD-GN77D
3737

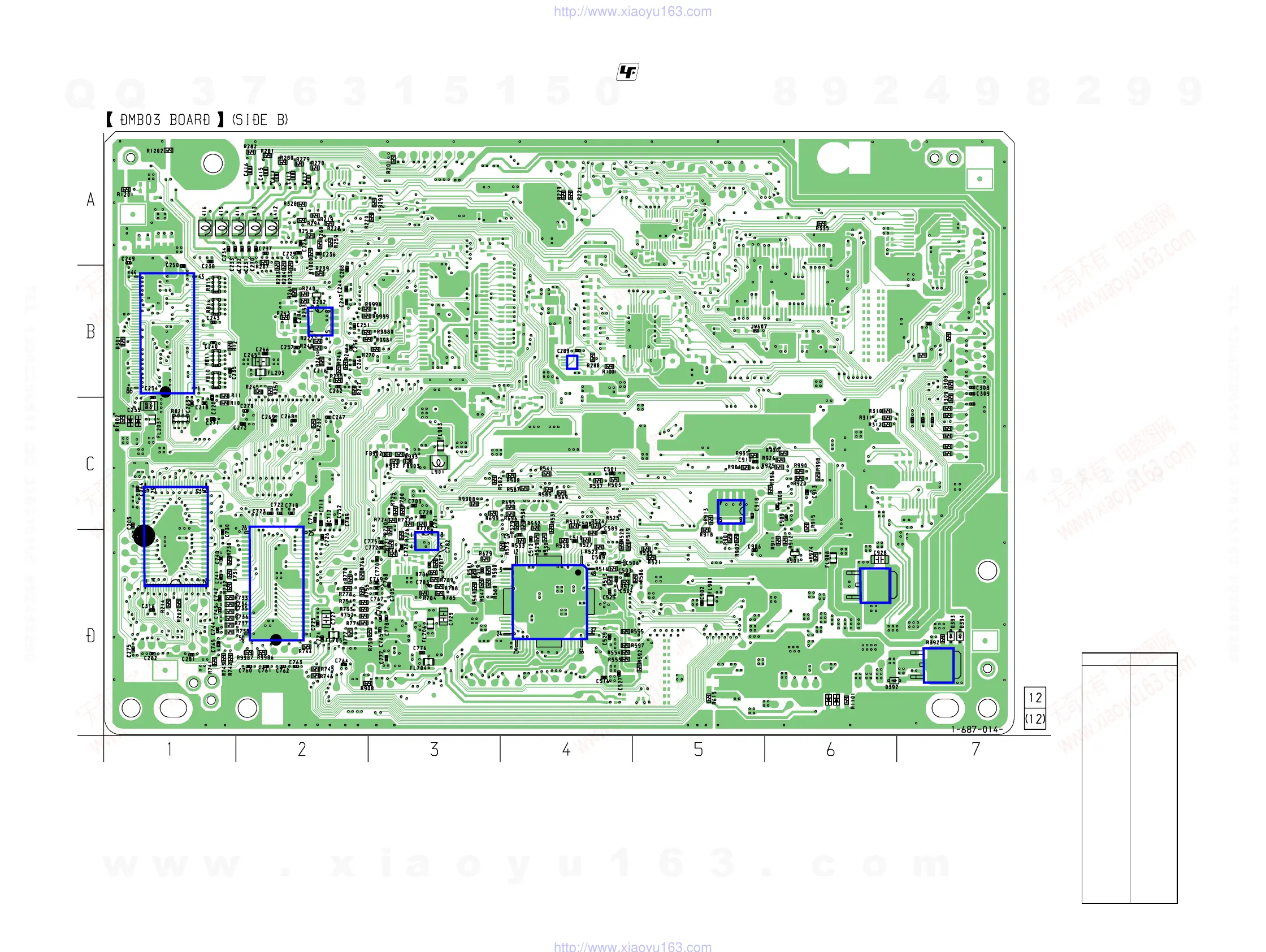

PRINTED WIRING BOARDS – DMB03 Board (SIDE B) – • See page 24 for Circuit Boards Location.
Ref. No. Location
• Semiconductor
Location
D392 D-6
D393 D-7
D394 D-7
D1101 D-6
D1102 D-6
D1803 C-1
D1804 C-1
IC203 B-1
IC204 B-2
IC206 D-1
IC252 B-4
IC392 D-7
IC501 D-4
IC703 D-3
IC706 D-2
IC903 C-5
IC907 D-6
Q202 B-2
Q901 D-6
: Uses unleaded solder.
IC392
IC907
IC903
IC204
IC501
IC252
IC703
IC706
IC206
IC203
D1804 D1803
R307
R306
R313
R303
R305
R304
R302
C307
C326
C324 C323 C322
D1102 D1101
1
2
3
1
2
3
1
4
5
8
R367
