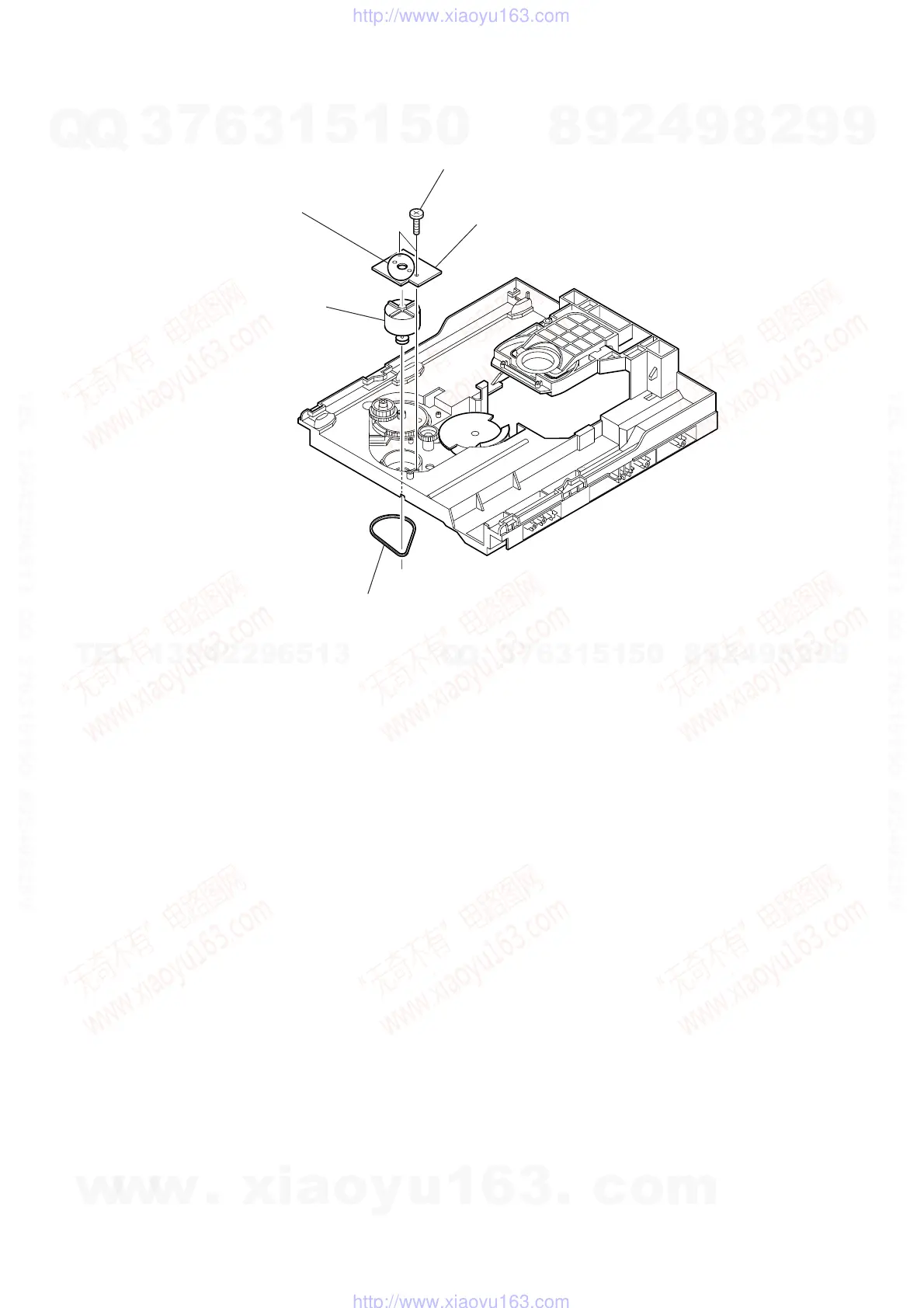

3-17. MOTOR (LD) BOARD
4 Remove the two solderings of motor.
3 MOTOR (LD) board
1 Belt (loading)
5 Loading motor ASSY (M751)
2 Two screws
(+BTTP (M2.6))
