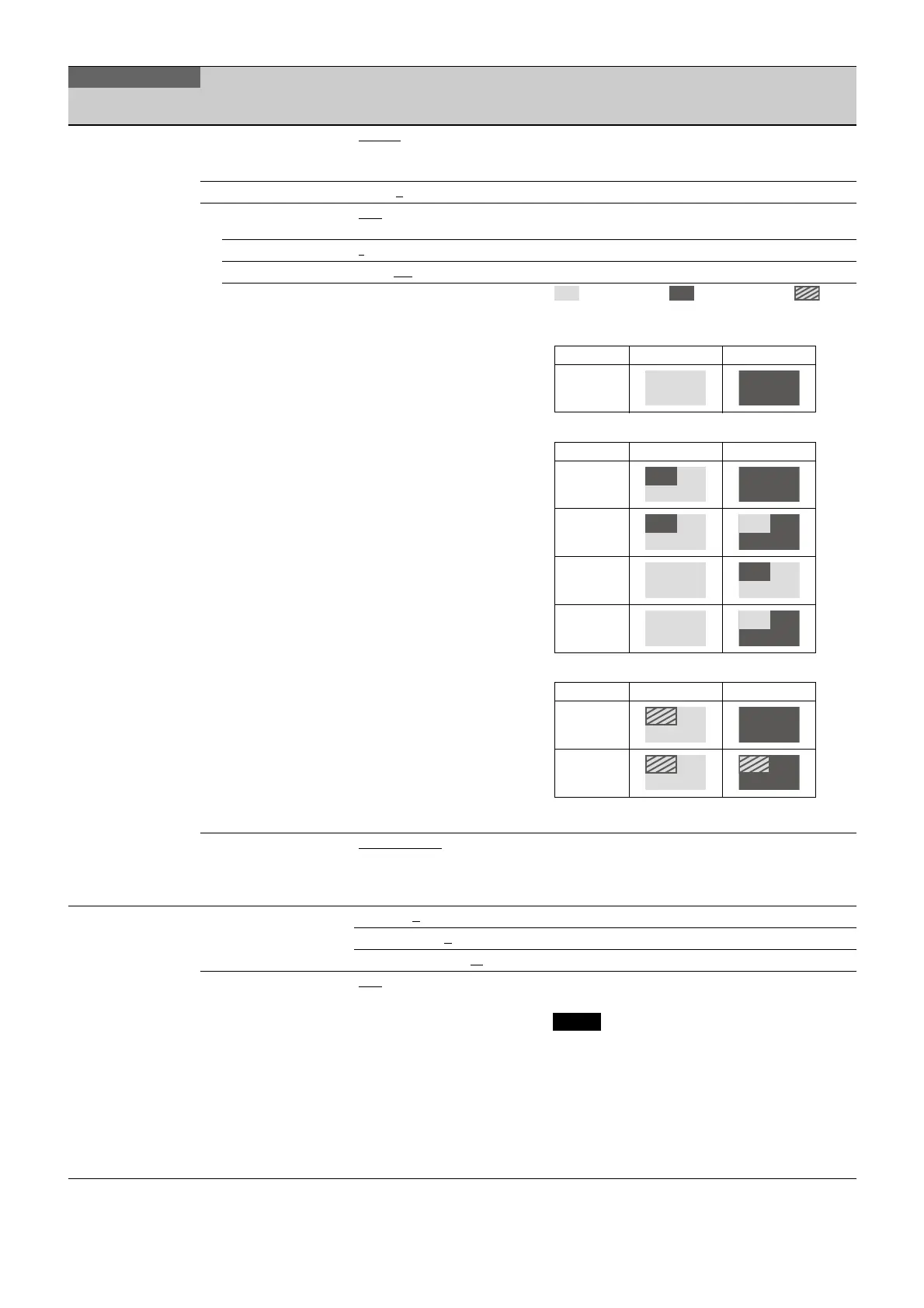

44
<VF OUT>
14 (U01)
VF OUT COLOR
, Y, R, G, B,
(COLOR), (Y), (R), (G), (B), (RET),
(R+G), (R+B), (G+B)
Settings in ( ): When HDLA is attached (cannot be
changed)
CHARACTER LEVEL 1 to 5, 4
PinP OFF, RETURN, HD PROMPTER OFF and RETURN displayed only when the HKC-TR37
is installed.
POSITION 1
, 2, 3, 4
SIZE 1/2.5, 1/3
, 1/4
MODE PinP OFF: ---
PinP RETURN: 1, 2, 3, 4
PinP HD PROMPTER: 1, 2
: Main picture, : Return picture, : HD
Prompter picture
Cannot be used during standalone operation.
HFR MODE (HD) ACCUMULATE
, SINGLE Output images as follows to the viewfinder when in
HD HFR format.
ACCUMULATE: Accumulated image
SINGLE: Single image
<SWITCH ASSIGN1>
15 (U09)
*1
*1: See
page 53
.
GAIN L: –6, –3, 0
, 3, 6, 9, 12 dB
M: –6, –3, 0, 3, 6
, 9, 12 dB
H: –6, –3, 0, 3, 6, 9, 12
dB
ASSIGNABLE OFF
, RETURN1 SW, RETURN2
SW, RETURN3 SW, INCOM1,
INCOM2, EXTENDER,
D.EXTENDER, 5600K, VF DETAIL,
SPIRIT LEVEL INDICATOR, FOCUS
ASSIST INDICATOR, PinP, VF
ASSIGN SW1, VF ASSIGN SW2,
RET1 SW TOGGLE, RET2 SW
TOGGLE, RET3 SW TOGGLE, VTR
S/S, TALLY R, TALLY G, TALLY Y,
FAN MAX, CURSOR ALL OFF,
FLAG, AWB, CALL, ZOOM(T),
ZOOM(W)
When HDLA is attached: OFF, EXTENDER, 5600K,
FAN MAX, D.EXTENDER, PinP, FLAG
Notes
• When you turn D.EXTENDER ON or OFF, noise may
be generated. This is not a malfunction.
D.EXTENDER does not operate when 4K or 2×
speed format is selected.
• TALLY R, TALLY G, TALLY Y are displayed only in
standalone operation.
• INCOM1 and INCOM2 are displayed on the UCJ
model only. ENG and PROD are displayed instead
on the CE model.
OPERATION
Page name
Page No.
Item Settings Description
PinP: OFF
PinP: RETURN
PinP: HD PROMPTER
Mode RET SW OFF RET SW ON
---
Mode RET SW OFF RET SW ON
1
2
3
4
Mode RET SW OFF RET SW ON
1
2
To Next Page
