Sony KP-44PS2 - HB, HA and Control Panel Block Removal; Beznet Block Removal

– 23 –
KP-44PS2/44PS2U/51PS2
RM-903

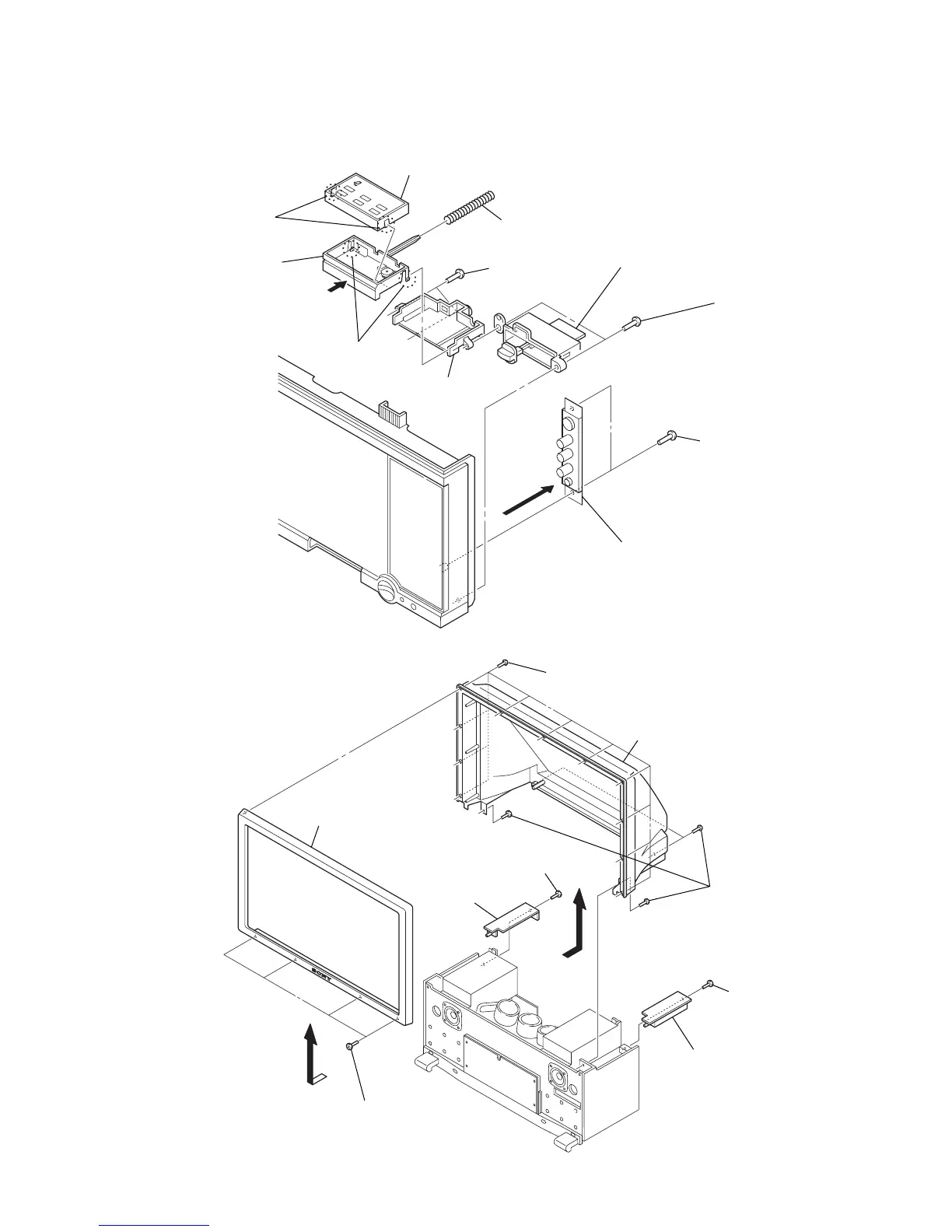

3-7. BEZNET BLOCK REMOVAL
• KP-44/51
3-6. HB, HA AND CONTROL PANEL BLOCK REMOVAL
• KP-44/51
9 Tray
!= Control panel block
0 Spring (T)
5 Two screws
(+BVTP 4 x 16)
6 Tray bracket
8 Two claws
7
3 Two screw
(+BVTP 4 x 16)
1 Two screw
(+BVTP 3 x 12)
2 HB board
4 HA board
!- Two claws
8 Four screws
(Hexagon head)
5 Four screws
(Hexagon head)
3 Screw
(Hexagon head)
(KP-51)
9 Beznet block
4 Cabinet cover (L)
(KP-51)
2 Cabinet cover (R)
(KP-51)
6 Eleven screws
(+BVTP 4 x 16)
7 Mirror cover block
1 Screw
(Hexagon head)
(KP-51)
