Sony KP-44PS2 - Control Panel and Cabinet Block (KP-51)

– 152 –
KP-44PS2/44PS2U/51PS2
RM-903

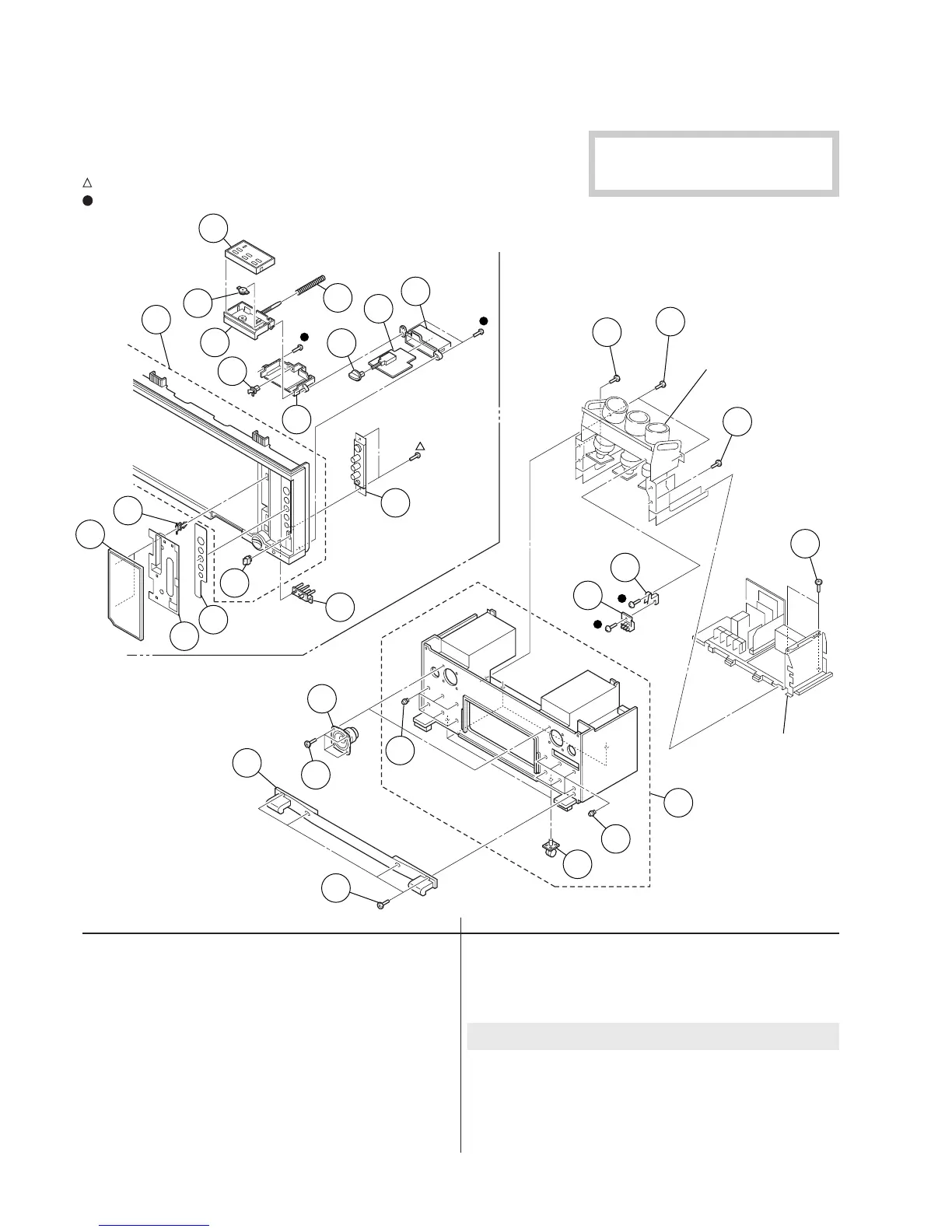

8-4. CONTROL PANEL AND CABINET BLOCK (KP-51)
: 7-685-648-79 +BTP 3X12
: 7-685-663-71 +BVTP 4X16
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡ are critical for safety.
Replace only with part number specified.
157
156
155
163
161
162
159
160
165
166
169
175
175
171
170
174
173
174
172
175
175
168
167
164
158
152
151
153
154
PICTURE TUBE
BLOCK
MAIN BRACKET
BLOCK
175
176
151 X-4038-780-1 PANEL ASSY, DOOR
152 4-054-250-31 DAMPER
153 X-4038-779-1 PANEL (51) ASSY, CONTROL 167
154 4-074-464-01 CATCHER, PUSH
155 *4-082-242-01 TRAY (PAINTED)
156 4-205-682-01 DAMPER
157 1-476-692-11 PANEL BLOCK, CONTROL
158 4-083-469-01 LABEL, FRONT TERMINAL
159 *A-1372-922-A HA BOARD, COMPLETE
160 *4-081-933-01 BRACKET, HA
161 4-082-040-01 SPRING (T)
162 4-083-097-01 BUTTON, POWER (PAINTED)
163 *4-081-932-01 BRACKET, TRAY
164 4-083-930-01 COVER, DOOR (PAINTED)
165 *A-1372-923-A HB BOARD, COMPLETE
166 4-081-608-01 GUIDE, LED
167 4-072-192-01 CATCHER, PUSH
168 *4-082-238-01 SKIRT (51) (PAINTED), FRONT
169 1-544-880-11 SPEAKER (13 CM)
170 ! 1-223-925-71 RESISTOR ASSY (HIGF-VOLTAGE)
(FOCUS PACK)
171 *4-054-825-01 BRACKET, FOCUS PACK
172 *X-4038-778-1 CABINET (51) ASSY, BOTTOM 173,174
173 4-075-244-01 CASTER (30 DIA.)
174 4-063-421-02 LATCH (K)
175 4-378-522-31 SCREW, TAPPING, HEXAGON HEAD
176 4-052-894-01 SCREW (4X20), HEAD TAPPING
