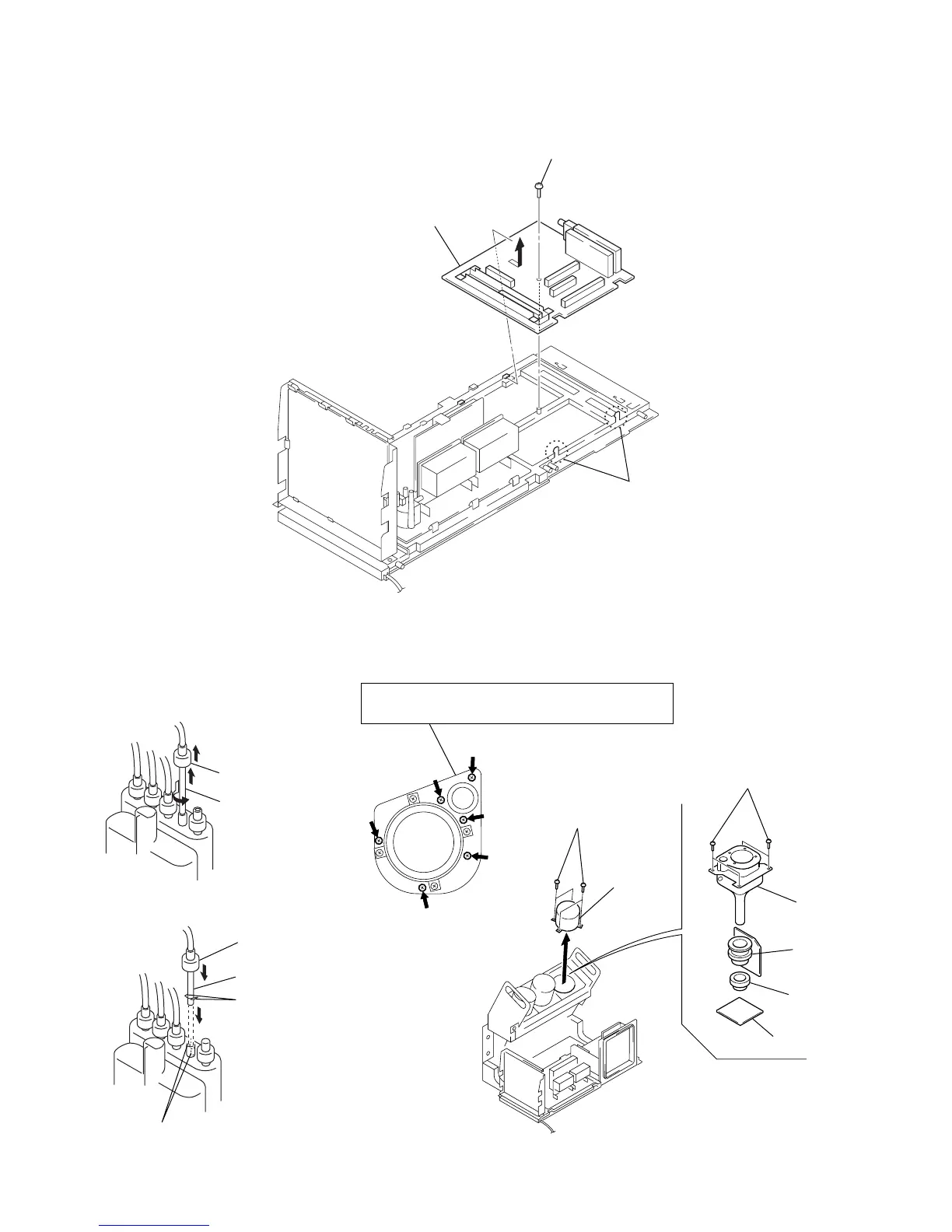

Sony KP-44PS2 - A Board Removal; High-Voltage Cable Removal and Installation; Picture Tube Removal

– 27 –
KP-44PS2/44PS2U/51PS2
RM-903
3-14. HIGH-VOLTAGE
CABLE REMOVAL
AND INSTALLATION
3-13. A BOARD REMOVAL
1 Rubber cap
2 HV cable
turn 90°
2 Rubber cap
1 HV cable
Hook
Gutter
(1) Removal
(2) Installation
Removing the arrow-marked screw is strictly inhibited.
If removed, it may cause liquid spill
1 Four screws
(+BVTP 4 x 16)
2 Lens
6 Four screws
(+BVTP 4 x 16)
7 Picture
tube
5 Deflection
yoke
4 Neck
assembly
3 CR board
3-15. PICTURE TUBE REMOVAL
3 A board
2 Two claws
1 Screw
(+BVTP 3 x 12)
