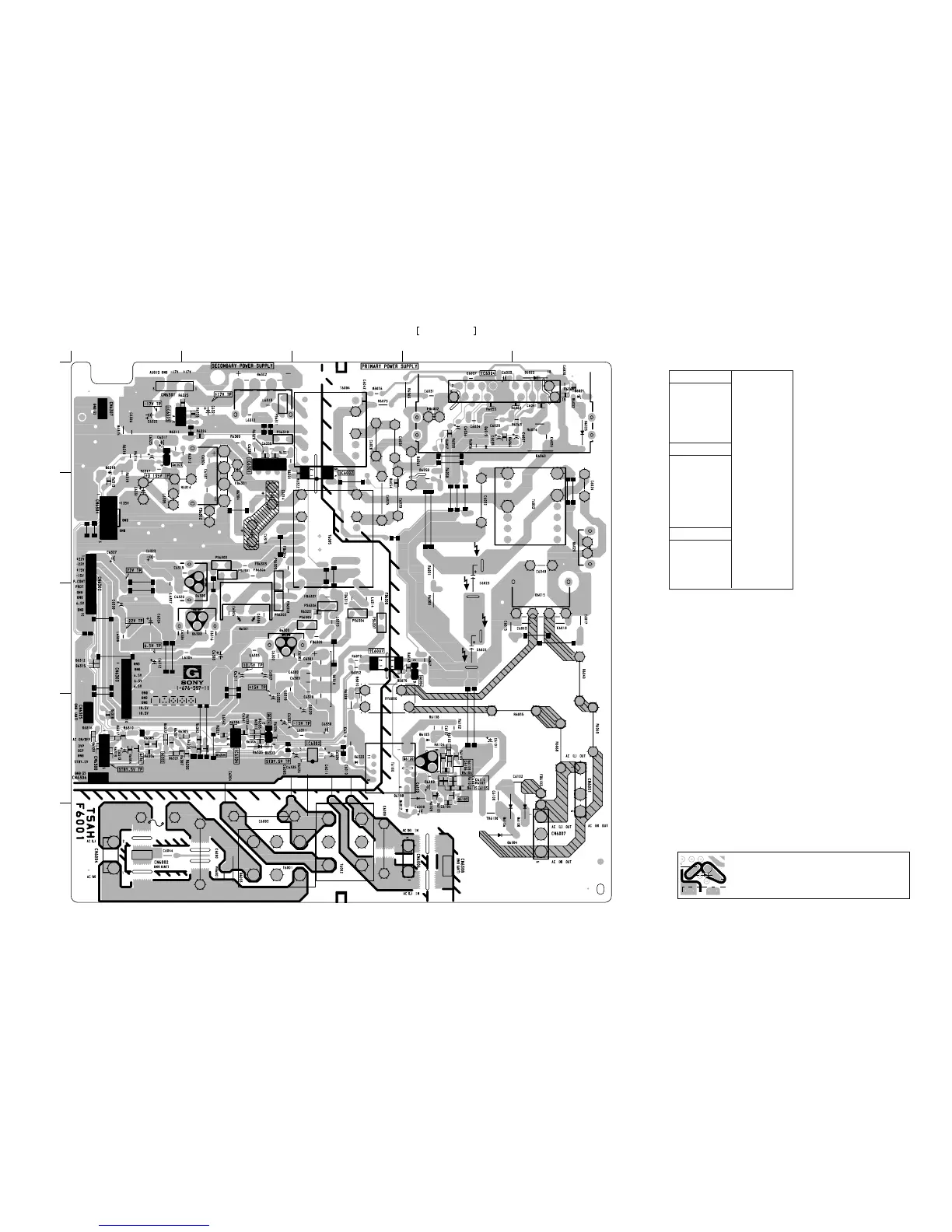

– G BOARD –

POWER SUPPLY

– 141 – – 142 –

2345

IC6002 B-3

IC6004 A-4

IC6007 C-3

IC6301 A-2

IC6302 D-3

IC6303 A-1

IC6304 D-2

TRANSISTOR

Q6004 C-4 –

Q6100 D-4 –

Q6102 D-4 1

Q6300 D-2 1

Q6301 D-1 1

Q6302 D-1 1

Q6303 A-1 –

Q6304 D-2 –

DIODE

D6010 C-3 3

D6015 C-5 –

D6017 E-4 –

D6019 A-4 –

D6020 B-5 –

• G BOARD SEMICONDUCTOR LOCATION

: Refer to Terminal name of semiconductors in silk

screen printed circuit (see page 79)

D6021 A-5 –

D6022 A-5 –

D6023 A-5 –

D6100 E-5 –

D6101 D-4 –

D6102 D-4 3

D6103 D-4 3

D6104 E-4 –

D6105 D-4 –

D6106 E-4 –

D6108 D-4 –

D6300 C-2 –

D6301 C-2 –

D6302 A-2 –

D6303 D-2 –

D6304 B-2 –

D6305 D-2 3

D6306 D-2 3

D6307 D-1 3

D6308 C-2 –

D6309 C-2 –

D6310 C-3 –

D6311 D-2 3

D6312 C-1 3

D6315 C-1 3

D6316 D-1 3

D6317 D-1 3

D6318 A—1 –

D6319 D-1 3

D6320 D-1 3

D6323 D-3 –

NOTE:

The circuit indicated as left contains high voltage of over

600 Vp-p. Care must be paid to prevent an electric shock in

inspection or repairing.
