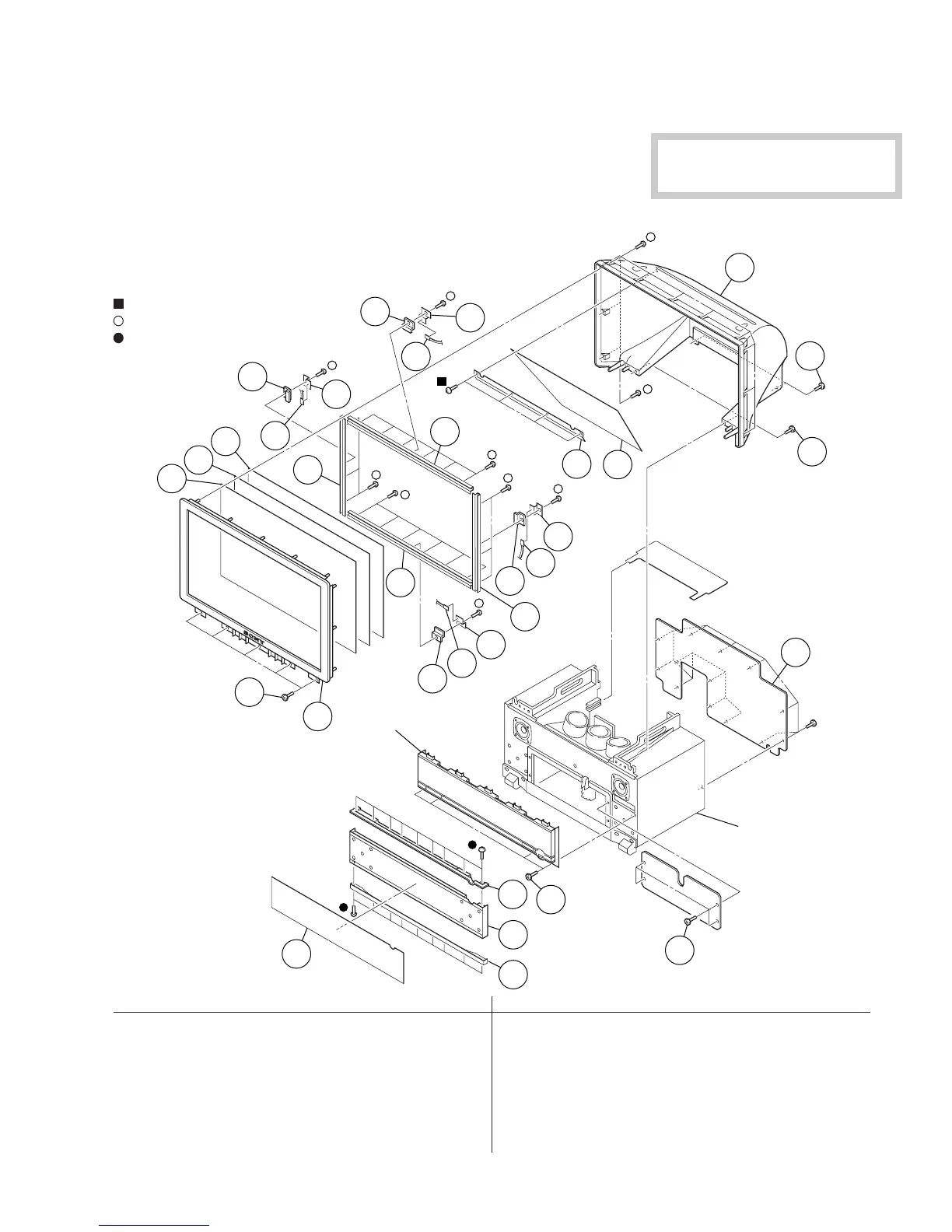

8-1. SCREEN AND COVER BLOCK (KP-44)
: 7-685-661-79 +BVTP 4X12
: 7-685-663-79 +BVTP 4X16
: 7-685-663-71 +BVTP 4X16
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
SECTION 8
EXPLODED VIEWS
The components identified by shading
and mark
¡ are critical for safety.
Replace only with part number specified.
1 X-4038-781-1 BEZEL (44) ASSY
2 4-378-522-31 SCREW, TAPPING, HEXAGON HEAD
3 4-081-957-11 SCREEN (44W), DIFFUSION
4 4-081-955-11 PLATE (44WL), DIFFUSION
5 4-081-956-11 PLATE (44WF), DIFFUSION
6 * 4-205-155-01 COVER, SENSOR
7 1-528-864-11 BATTERY, SOLER
8 * 4-066-132-01 HOLDER, SENSOR
9 * 4-082-036-01 HOLDER (44), MIRROR
10 * 4-076-698-01 HOLDER, SCREEN
11 * 4-076-698-41 HOLDER, SCREEN
12 4-082-042-01 MIRROR (44)
13 * 4-082-319-01 COVER (44), MIRROR (PAINTED)
14 * 4-082-046-01 BOARD (44), REAR
15 4-082-317-01 HOLDER (U), GLASS (44) (PAINTED)
16 4-082-316-01 COVER (44), FRONT (PAINTED)
17 4-082-318-01 HOLDER (L), GLASS (44) (PAINTED)
18 4-082-056-11 GLASS, ORNAMENTAL
NOTE:
