Sony KP-44PS2 - Control Panel and Cabinet Block (KP-44)

– 150 –
KP-44PS2/44PS2U/51PS2
RM-903

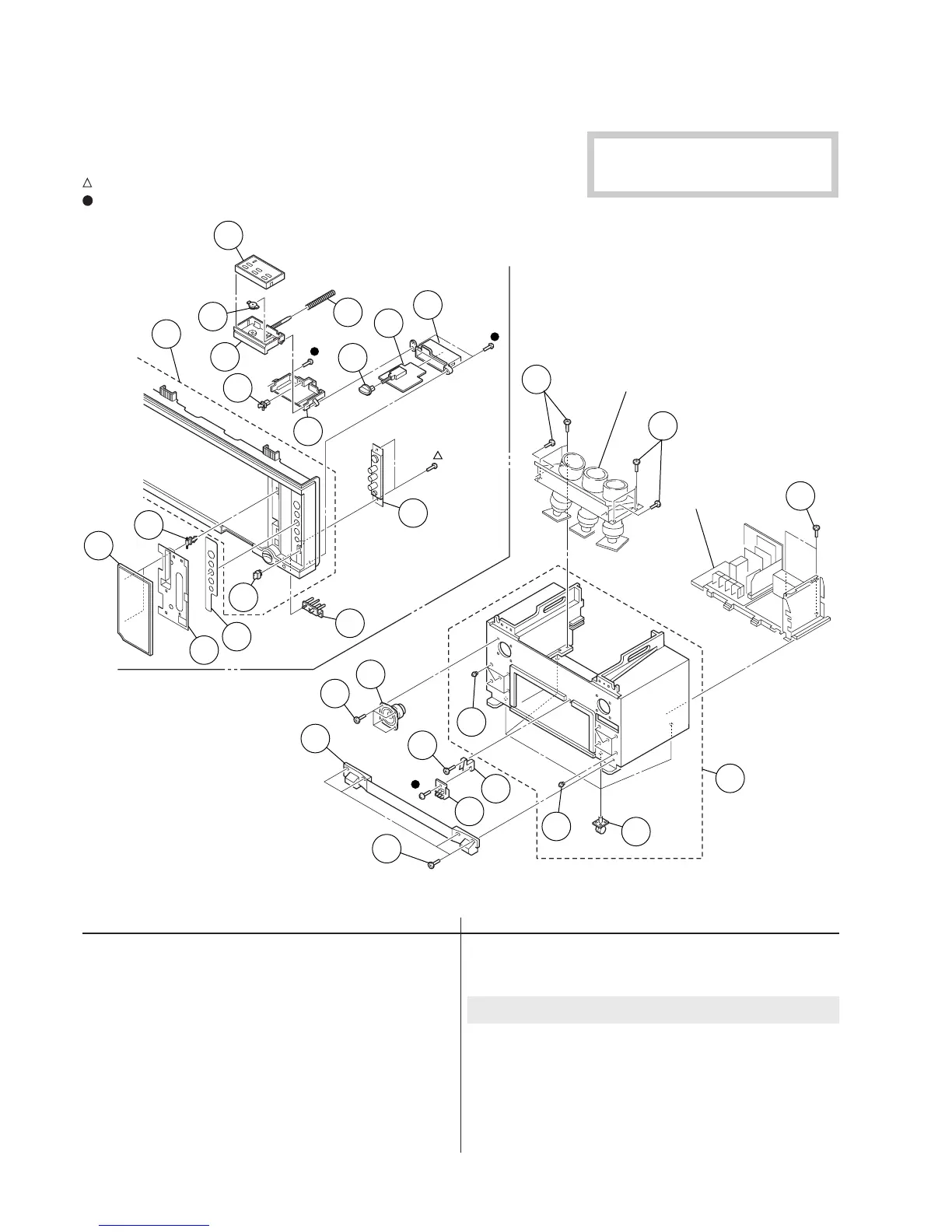

8-2. CONTROL PANEL AND CABINET BLOCK (KP-44)
: 7-685-648-79 +BVTP 3X12
: 7-685-663-71 +BVTP 4X16
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡ are critical for safety.
Replace only with part number specified.
57
56
55
61
62
63
59
60
65
66
71
75
75
75
69
70
74
74
73
72
77
76
68
67
58
64
52
51
53
54
76
PICTURE TUBE
BLOCK
MAIN BRACKET
BLOCK
51 X-4038-780-1 PANEL ASSY, DOOR
52 4-045-250-31 DAMPER
53 X-4038-782-1 PANEL (44) ASSY, CONTROL 67
54 4-074-464-01 CATCHER, PUSH
55 * 4-082-242-01 TRAY (PAINTED)
56 4-205-682-01 DAMPER
57 1-476-692-11 PANEL BLOCK, CONTROL
58 4-083-469-01 LABEL, FRONT TERMINAL
59 * A-1372-922-A HA BOARD, COMPLETE
60 * 4-081-933-01 BRACKET, HA
61 4-082-040-01 SPRING (T)
62 4-083-097-01 BUTTON, POWER (PAINTED)
63 * 4-081-932-01 BRACKET, TRAY
64 4-083-930-01 COVER, DOOR (PAINTED)
65 * A-1372-923-A HB BOARD, COMPLETE
66 4-081-608-01 GUIDE, LED
67 4-072-192-01 CATCHER, PUSH
68 4-082-315-01 SKIRT (44), FRONT (PAINTED)
69 ! 1-223-925-71 RESISTOR ASSY (HIGH-VOLTAGE)
(FOCUS PACK)
70 * 4-054-825-01 BRACKET, FOCUS PACK
71 1-544-880-11 SPEAKER (13 CM)
72 * X-4038-777-1 CABINET (44) ASSY, BOTTOM 73,74
73 4-075-244-01 CASTER (30 DIA.)
74 4-063-421-02 LATCK (K)
75 4-378-522-31 SCREW, TAPPING, HEXAGON HEAD
76 4-052-894-01 SCREW (4X20), HEAD TAPPING
77 4-378-522-01 SCREW, TAPPING, HEXAGON HEAD
