– 4 –
KP-44PS2/44PS2U/51PS2
RM-903
SECTION 1
SELF DIAGNOSIS FUNCTION

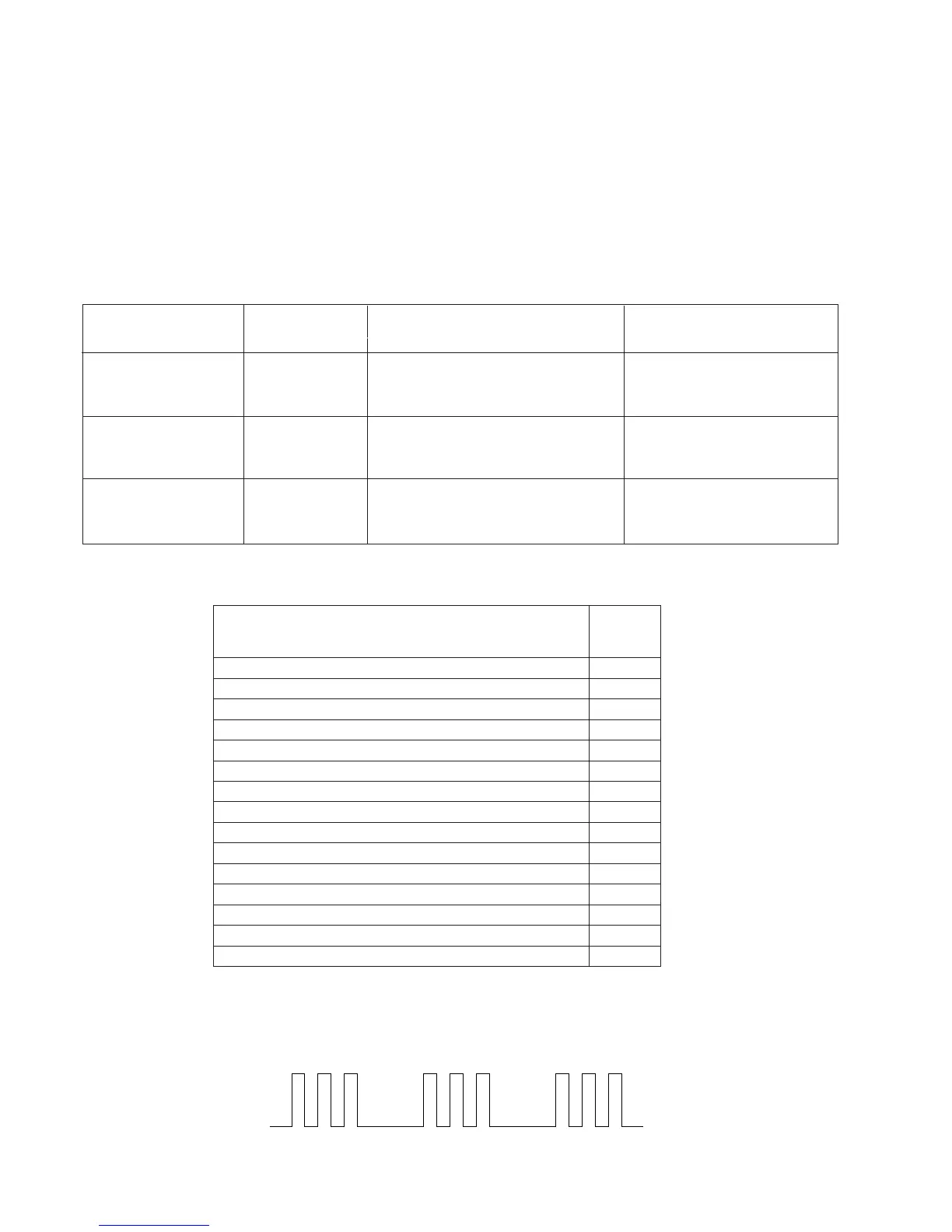

1-1. RE-3W SELF DIAGNOSTIC SOFTWARE
The identification of errors within the RE-3W chassis is triggered in one of two ways : - 1: Busy or 2: Device failure to respond to IIC.
In the event of one of these situations arising the software will first try to release the bus if busy (Failure to do so will report with a
continuous flashing LED) and then communicate with each device in turn to establish if a device is faulty. If a device is found to be
faulty the relevant device number will be displayed through the LED (Series of flashes which must be counted) See table 1., non fatal
errors are reported using this method.
Power cord is not plugged in
Power does not come on
Power does not turn on Does not light
Fuse is open circuit
No power is supplied to the TV
AC power supply is faulty
H. OUT (Q5104) is shorted (D Board)
Power does not come on
+B Overcurrent (OCP) 2 times Linearity FET (Q5105) is shorted (D Board)
IC6004 Power IC is shorted (G Board)
Load on power line has shorted
+15 V is not supplied R5340 open (D Board)
Vertical deflection pulse has stopped
Vertical Deflection stopped 4 times –15 V is not supplied R5341 open (D Board)
Power line has shorted
IC5302 is shorted (D Board)
No. of times Standby
LED Flashes
Detected Symptoms
LED
ERROR ERROR
COUNT
No error 00
Not allowed (may be confused with Sircs response flash) 01
Over Current Protection 02
Over Voltage Protection 03
Vertical Protection 04
Not used 05
Horizontal Protection 06
Speaker Protection 07
General IIC Line 0 error 08
MEGATEXT (IC9502) 09
NVM (IC9108) 10
Main colour decoder (IC8301) 11
Backend (IC4301) 14
Multi sound processor (IC4702) 15
External RAM (IC9107) 17
Diagnostic Item
Description
Probable cause Location
Flash Timing Example : e.g. error number 3
ON
OFF OFF
ON ONStandby LED
