Sony KP-44PS2 - Main Bracket Block

– 153 –
KP-44PS2/44PS2U/51PS2
RM-903

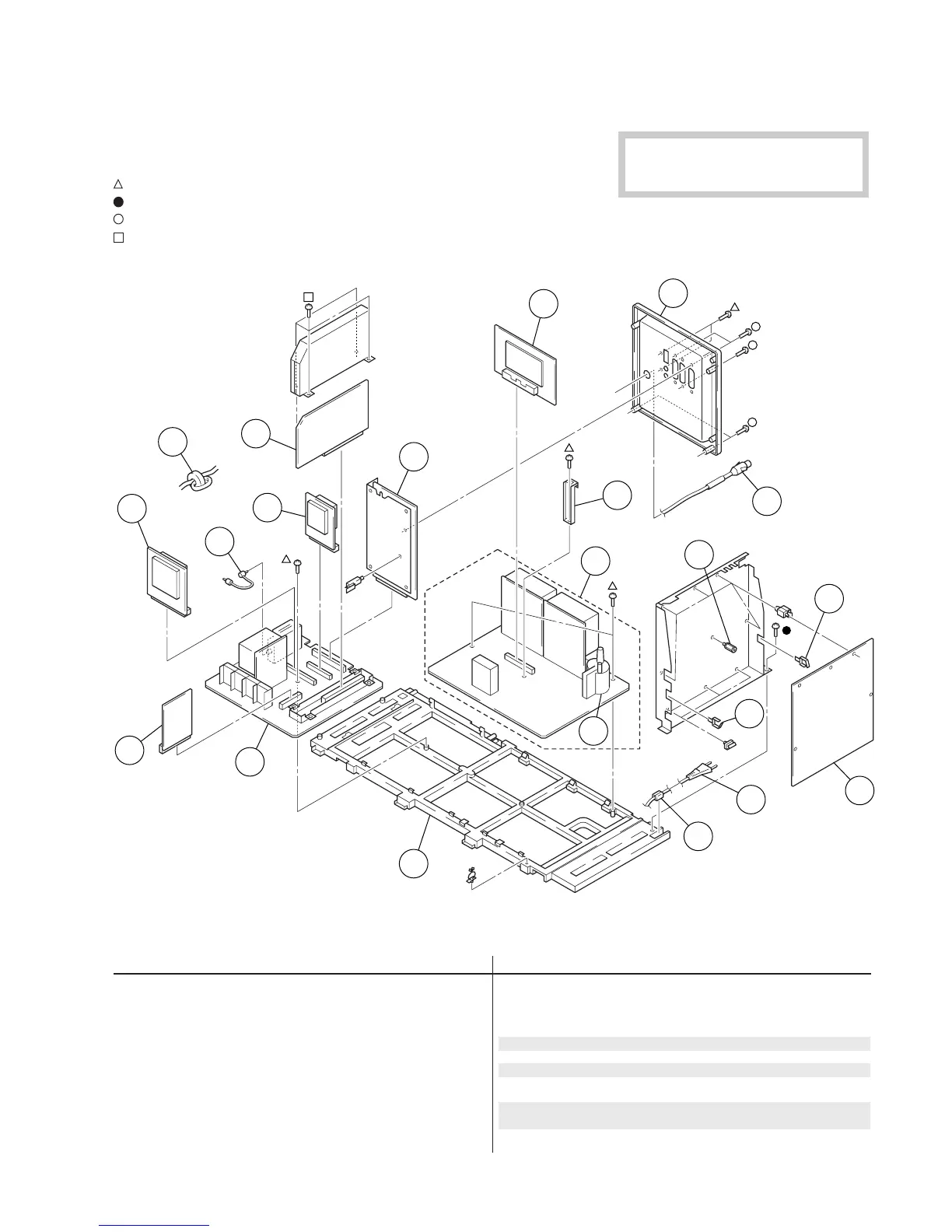

8-5. MAIN BRACKET BLOCK
: 7-685-648-79 +BVTP 3X12
: 7-685-663-71 +BVTP 4X16
: 7-685-663-79 +BVTP 4X16
: 7-685-872-09 +BVTT 3X8
REF.NO. PART NO. DESCRIPTION REMARKREF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡ are critical for safety.
Replace only with part number specified.
208
206
207
205
204
203
202
201
217
216
215
214
218
213
212
220
209
210
211
219
214
201 *4-062-537-01 BRACKET, MAIN
202 *A-1299-119-A A BOARD, COMPLETE
203 *A-1348-063-A E BOARD, COMPLETE
204 *A-1306-599-A M BOARD, COMPLETE
205 *1-555-110-00 CABLE, PIN
206 1-543-982-11 CORE, FERRITE
207 *A-1394-969-A S BOARD, COMPLETE
208 *A-1620-145-A B3 BOARD, COMPLETE
209 *A-1395-023-A J BOARD, COMPLETE
210 *A-1299-413-A AP BOARD, COMPLETE
211 4-075-243-03 BOARD, TERMINAL
212 1-790-082-11 CABLE, RF
213 *3-657-516-11 SUPPORT, PC BOARD
214 *4-316-015-00 HOLDER, WIRE
215 *A-1316-512-A G BOARD, COMPLETE
216 ! 1-765-286-11 CORD, POWER (44PS2/51PS2)
216 ! 1-776-860-11 POWER CORD, FILTER (UK) (44PS2U)
217 4-022-115-00 HOLDER, AC CORD
218 *A-1348-062-A D BOARD, COMPLETE 219
219 ! 1-453-335-11 TRANSFORMER ASSY, FLYBACK
(NX-4010//M3P4)
220 *4-046-677-11 HOLDER (B), PWB
