Sony MJ100 - 4 Output Connector

English
14 (E)

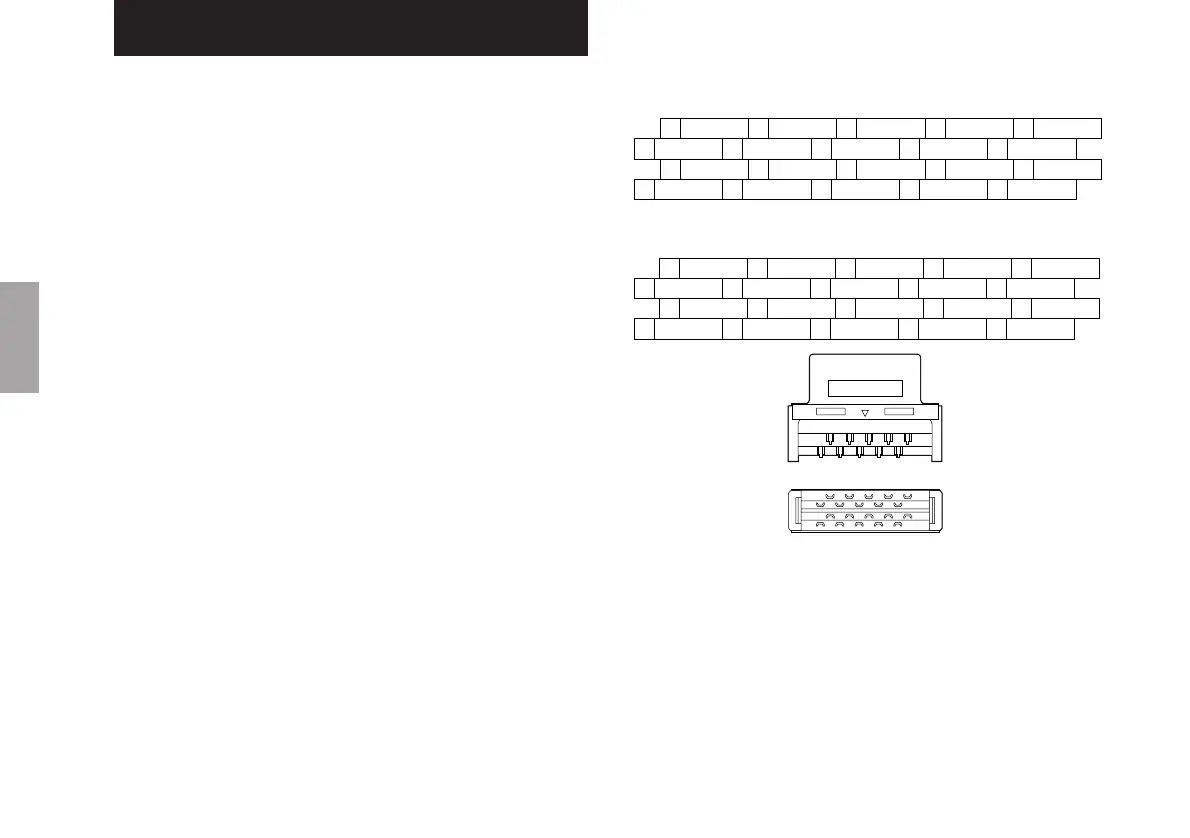

MJ100 (Voltage-differential Line Driver Output)
246810
13579
12 14 16 18 20
11 13 15 17 19
+Vcc
+Vcc+Vcc0 V
B
A
AL
Z
0 V0 V
HONDA
2468 10
13579
12 14 16 18 20
11 13 15 17 19
Fig.4-1
246810
13579
12 14 16 18 20
11 13 15 17 19
*PCA
PCA +Vcc
+Vcc+Vcc0 V
ALM *ALM
PCB PCZ
*PCB *PCZ V W
U
*V *W
*U
0 V0 V
4. Output Connector
Connector used:
Receptacle: PCR-E20LMDT (Honda Tsushin)
Accessory
Plug: PCR-E20FS (Honda Tsushin) (Fig. 4-1)
Plug case: PCS-E20LC (Honda Tsushin)
When using the accessory plug (PCR-E20FS), refer to
Fig. 4-1 and connect.
MJ110 (Open Collector Output)
! Caution
. Do not connect any cable to a pin which has no
description.
.+Vcc (power supply voltage) differs for the MJ100 and
MJ110. Do not input voltages outside the specified range
as this may result in damage to equipment. For details,
see “3-7. Supplying the power”.
. “0 V” is the circuit ground. This is not connected to the
frame ground of the unit’s case or another ground.
