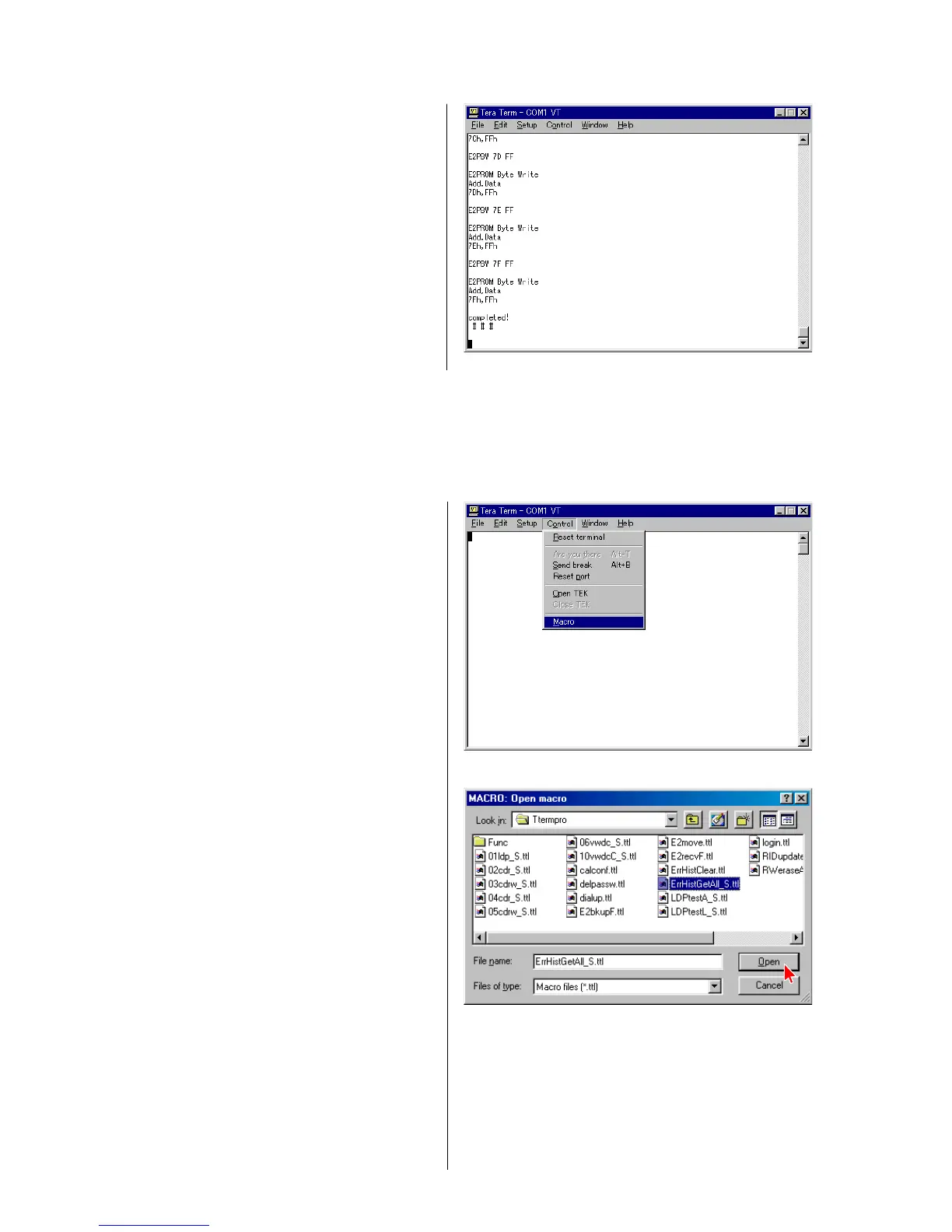

8) Confirm that the message “completed!” appears.
The EEPROM data is recovered. (Fig. 3-23)
4 Fig. 3-23
9) Perform the operation check.
3-5. Acquisition of Error History and Acquisition of Elapsed Operating Hours
Check if error has occurred or not by performing the following steps. If error has occurred, it is interpreted and saved in the specific
directory. Check contents of the error by viewing the specific directory as described below.
1) Select the menu as follows. Control → Macro, and select
ErrHistGetAll_S.ttl.
Press “Open”. (Fig. 3-24, 3-25)
4 Fig. 3-24
4 Fig. 3-25

Sony RCD-W10 Specifications

Power

North American model power requirements	120 V AC, 60 Hz
Mexican model power requirements	120 V AC, 60 Hz
Other models power requirements	110-120/220-240V AC, 50/60 Hz
Power consumption	25 W

Inputs

ANALOG IN impedance	47 kilohms
ANALOG IN rated input	500 mVrms
ANALOG IN minimum input	250 mVrms

Outputs

ANALOG OUT impedance	47 kilohms
ANALOG OUT rated output	2 Vrms
ANALOG OUT load impedance	over 10 kilohms

Weight and Dimensions

dimensions	430 × 108 × 399 mm
RCD-W50C mass	6.8 kg
RCD-W10 mass	6.0 kg
