* You can watch the selected input image when you
connect the MONITOR OUT jack to a TV
(page 19). You can operate this receiver using a
GUI (Graphical User Interface) (page 38).

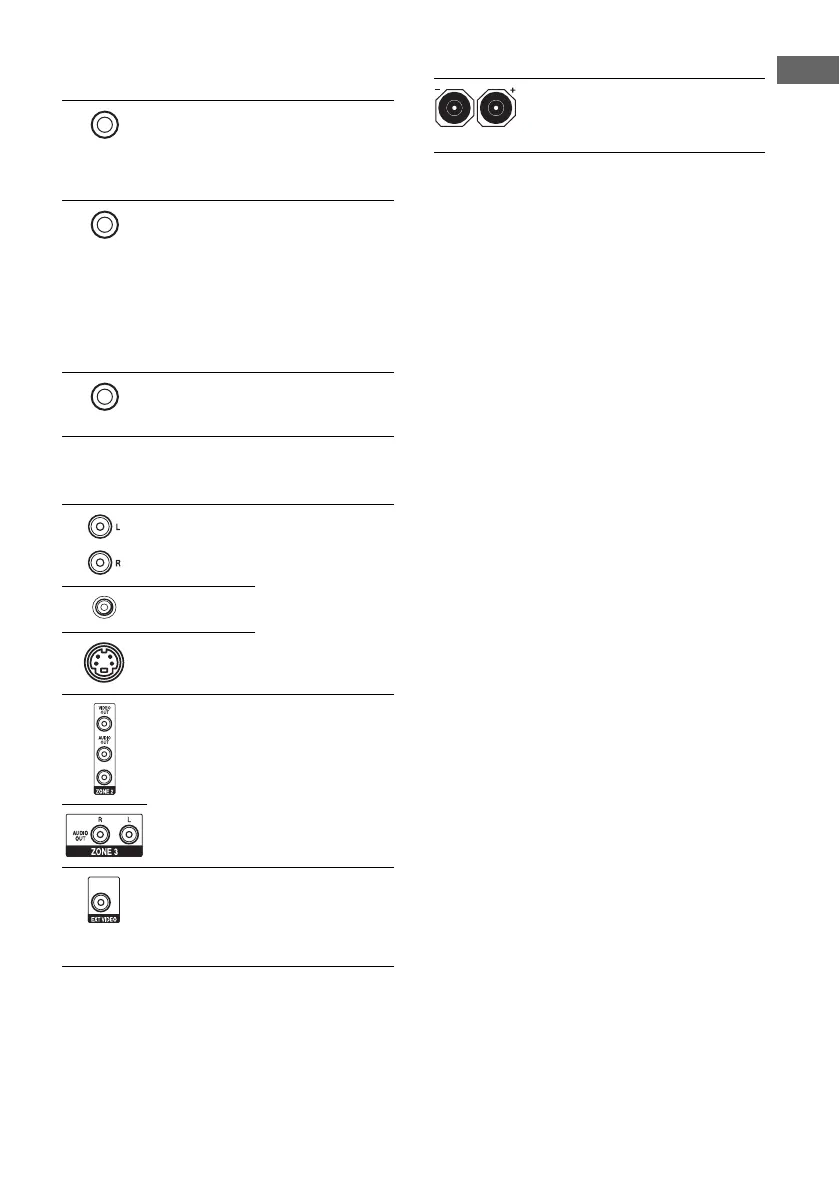

F Control jack for Sony equipment
and other external components
CTRL S IN/
OUT jacks
Connects to Sony
TV, DVD player or
VCR with
CONTROL S jack
(page 104).
TRIGGER
OUT jacks
Connects to interlock
on/off of the power
supply of other 12V
TRIGGER
compliant
components, or the
amplifier/receiver of
zone 2 or zone 3
(page 101).
IR REMOTE
IN/OUT jacks
Connects an IR
repeater (page 99,
100).
G VIDEO/AUDIO INPUT/OUTPUT
section
AUDIO IN/
OUT jacks
Connects to a VCR
or a DVD player etc.
(page 29, 30, 31, 32,
85).
VIDEO IN/
OUT jacks*
S VIDEO IN/
OUT jacks*
AUDIO IN/
OUT jack
VIDEO IN/
OUT jacks
Connects to the
component in zone 2
or zone 3 (page 98).
VIDEO IN jack Connects to the
component when
you want to watch in
PIP (Picture in
Picture) window.
H SPEAKERS section
Connects to speakers
(page 17).
