Sony STR-DA6400ES - Page 126

STR-DA6400ES
126

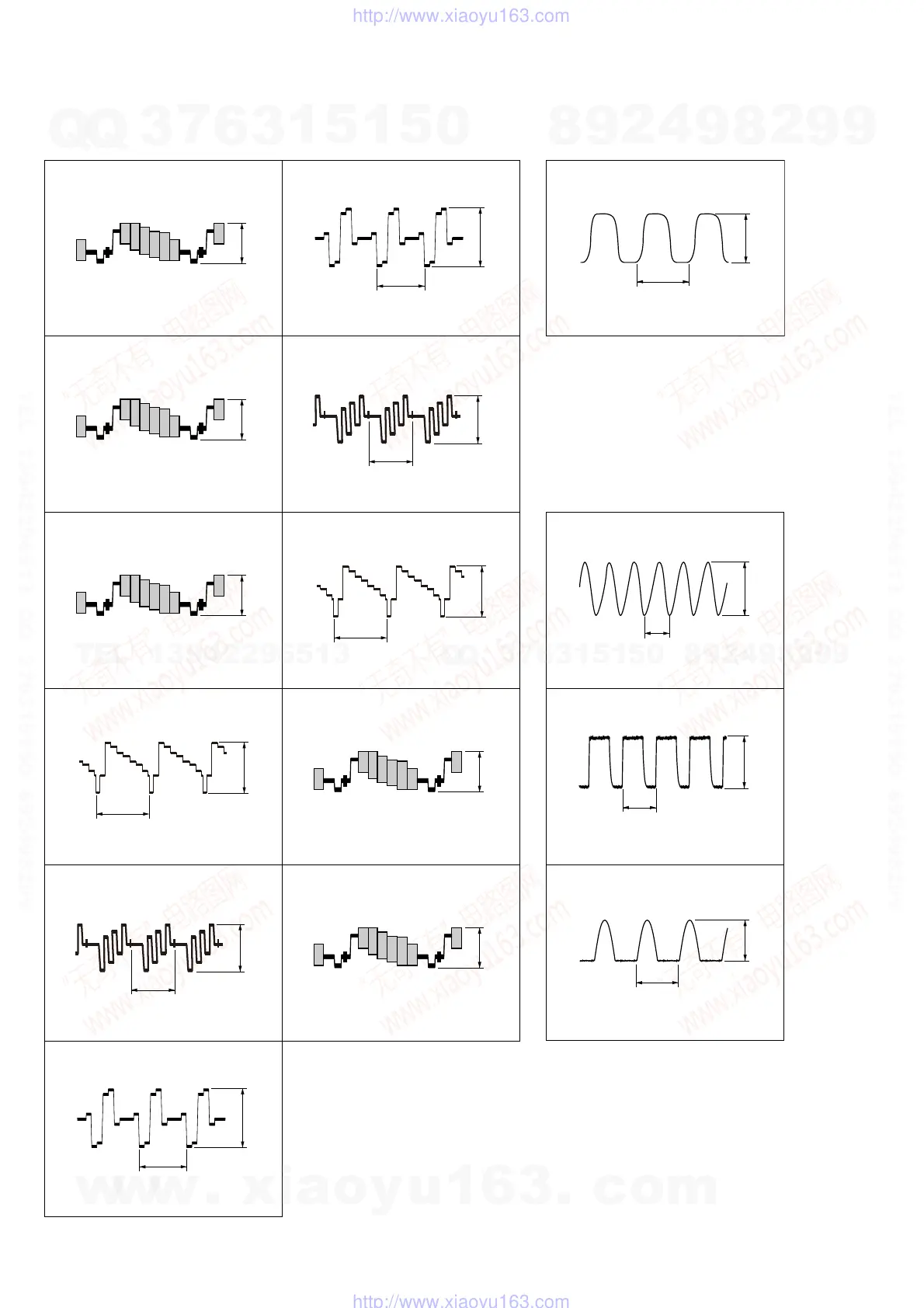

– A-VIDEO Board – – CONTROL Board –

IC2513 S (4MHz(CLK out))
1 V/DIV, 100 ns/DIV
250 ns
3.4 Vp-p
VB
IC105  (OSC OUT)
1 V/DIV, 200 ns/DIV
200 ns
3.28 Vp-p
VT
Q110, 111 (Base)
2 V/DIV, 5 μs/DIV
4.6 μs
4.64 Vp-p
VE
Q110, 111 (Collector)
20 V/DIV, 5 μs/DIV
4.55 μs
41.6 Vp-p
RB
IC6002  (VIN3)
(Color bar)
500 mV/DIV, 20 μs/DIV
1.2 Vp-p
RT
IC6002  (VIN2)
(Color bar)
500 mV/DIV, 20 μs/DIV
1.2 Vp-p
RE
IC6002  (VOUT2)
(Color bar)
1 V/DIV, 20 μs/DIV
2.4 Vp-p
RG
IC6001  (CH1IN2)
(Color bar)
500 mV/DIV, 20 μs/DIV
H
1 Vp-p
RH
IC6001  (CH2IN2)
(Color bar)
200 mV/DIV, 20 μs/DIV
H
0.6 Vp-p
RI
IC6001 RH (CH3IN2)
(Color bar)
200 mV/DIV, 20 μs/DIV
H
0.6 Vp-p
RK
IC6001 X (CH3OUT)
(Color bar)
500 mV/DIV, 20 μs/DIV
H
1.4 Vp-p
RL
IC6001 XT (CH2OUT)
(Color bar)
500 mV/DIV, 20 μs/DIV
H
1.4 Vp-p
RM
IC6001 XG (CH1OUT)
(Color bar)
1 V/DIV, 20 μs/DIV
H
2 Vp-p
X
IC6007  (CV-1)
(Color bar)
500 mV/DIV, 20 μs/DIV
0.6 Vp-p
XB
IC6007 UE (CV-OUT1)
(Color bar)
500 mV/DIV, 20 μs/DIV
1.2 Vp-p
– DISPLAY Board –
