STR-DA6400ES
8

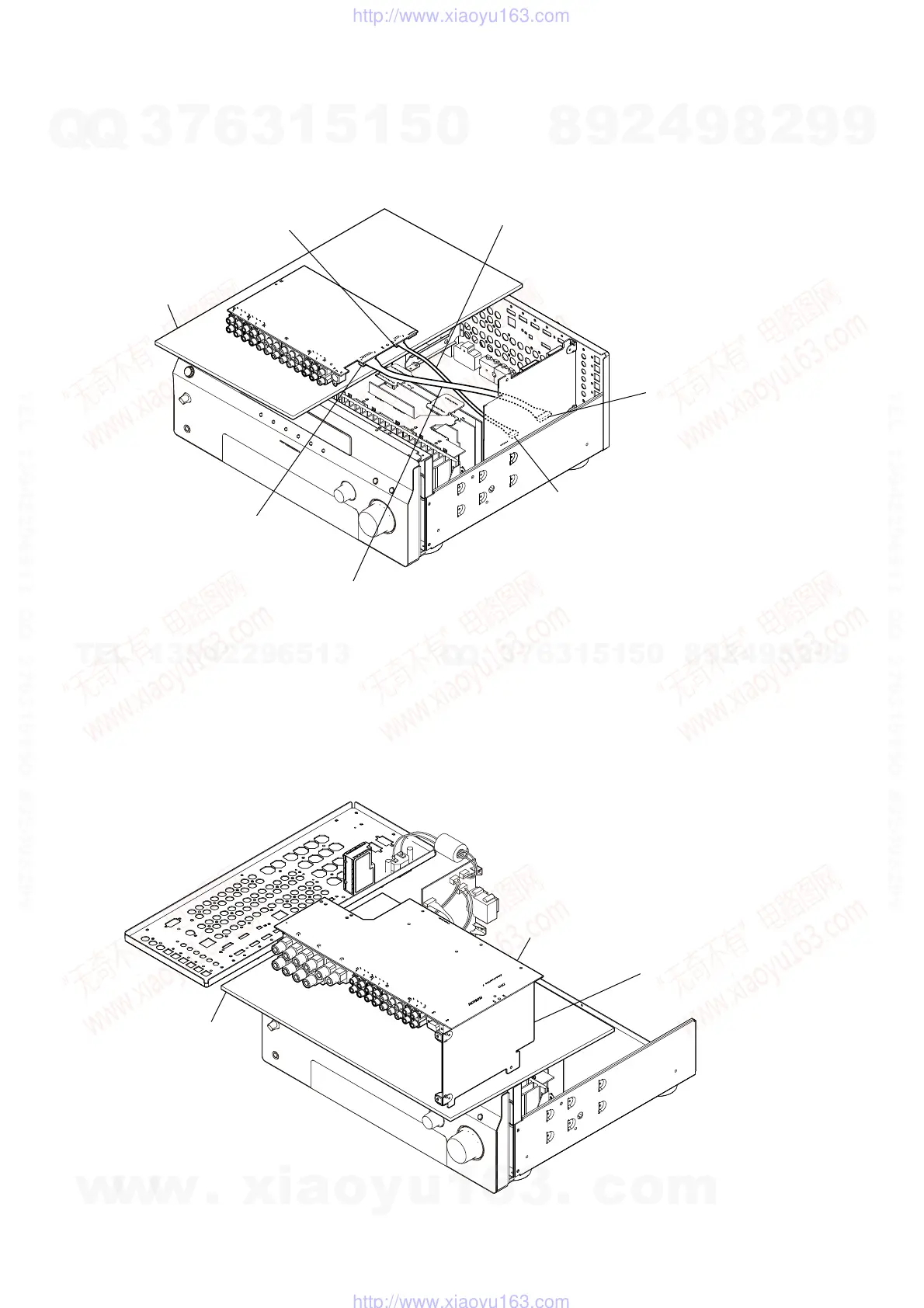

ANALOG BOARD SERVICE POSITION
In checking the ANALOG board, prepare jig (extension cable J-2501-254-A: 1.25 mm Pitch, 8 cores, Length 300 mm/J-2501-258-A: 1.25
mm Pitch, 16 cores, Length 300 mm).
Connect jig (extension cable J-2501-254-A)
to the ANALOG board (CN726) and
CONTROL board (CN2508).
ANALOG board
(CN726)
CONTROL board
(CN2503)
insulating sheet
ANALOG board
(CN601)
CONTROL board
(CN2508)
Connect jig (extension cable J-2501-258-A)
to the ANALOG board (CN601) and
CONTROL board (CN2503).
MAIN BOARD SERVICE POSITION
MAIN board
insulating sheet
CONTROL board
