STR-DA6400ES
7

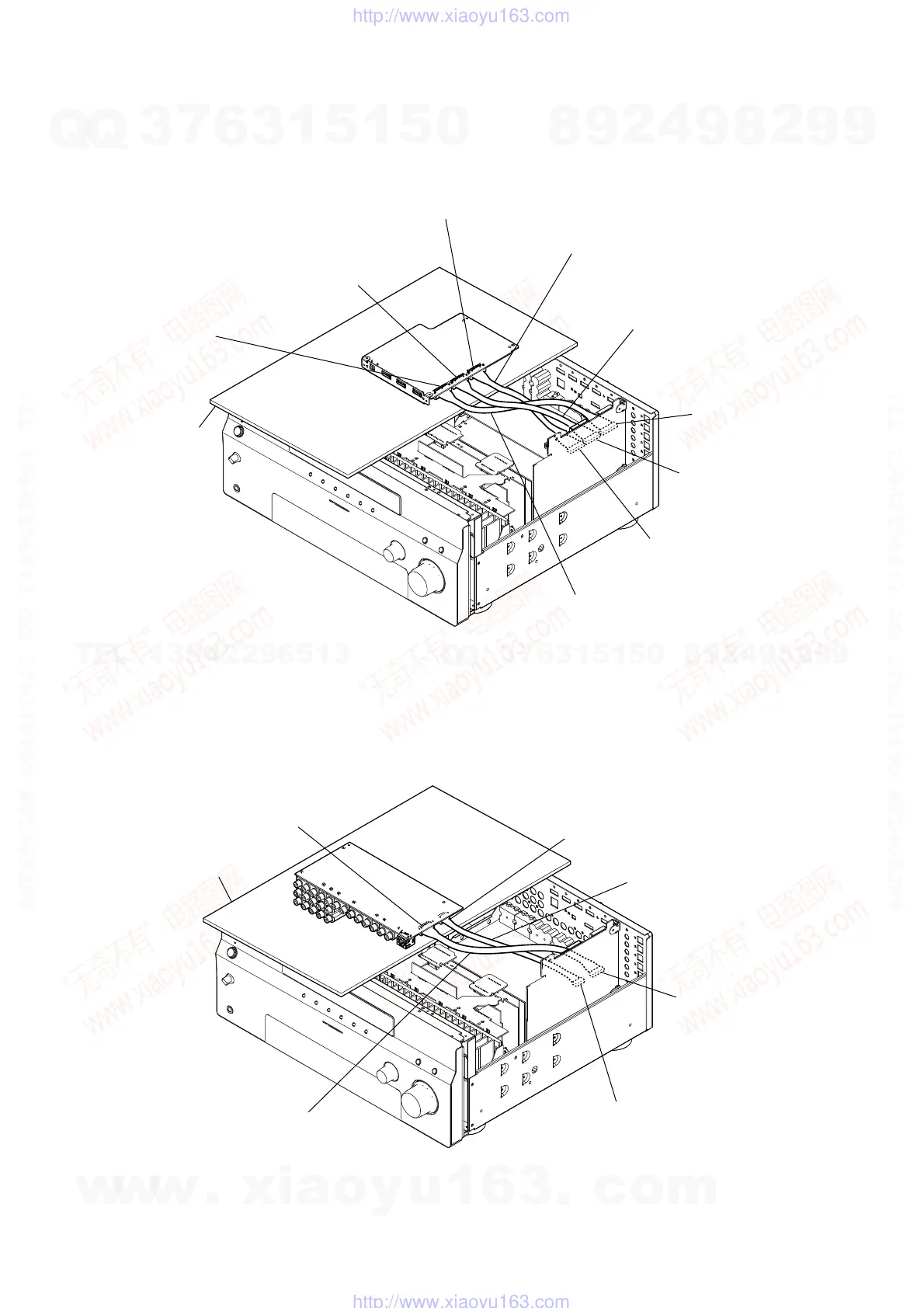

NETWORK BOARD SERVICE POSITION
In checking the DMPORT board, prepare jig
(extension cable J-2501-256-A: 1.25 mm Pitch, 12 corers, Length 300 mm/J-2501-260-A: 1.25 mm Pitch, 20 cores, Length 300 mm).
Connect jig (extension cable J-2501-260-A)
to the NETWORK board (CN6702) and
CONTOL board (CN2504).
CONTROL board
(CN2504)
insulating sheet
Connect jig (extension cable J-2501-260-A)
to the NETWORK board (CN6703) and
CONTOL board (CN2509).
CONTROL board
(CN2509)
NETWORK board
(CN6702)
CONTROL board
(CN8002)
NETWORK board
(CN6703)
NETWORK board
(CN8002)
Connect jig (extension cable J-2501-256-A)
to the NETWORK board (CN8002) and
CONTOL board (CN8002).
A-VIDEO BOARD SERVICE POSITION
In checking the A-VIDEO board, prepare jig (extension cable J-2501-255-A: 1.25 mm Pitch, 10 cores, Length 300 mm/J-2501-256-A: 1.25
mm Pitch, 12 cores, Length 300 mm).
Connect jig (extension cable J-2501-255-A)
to the A-VIDEO board (CN6002) and
CONTROL board (CN2507).
A-VIDEO board
(CN6001)
A-VIDEO board
(CN6002)
insulating sheet
Connect jig (extension cable J-2501-256-A)
to the A-VIDEO board (CN6001) and
CONTROL board (CN2505).
CONTROL board
(CN2507)
CONTROL board
(CN2505)
