STR-DA6400ES
6

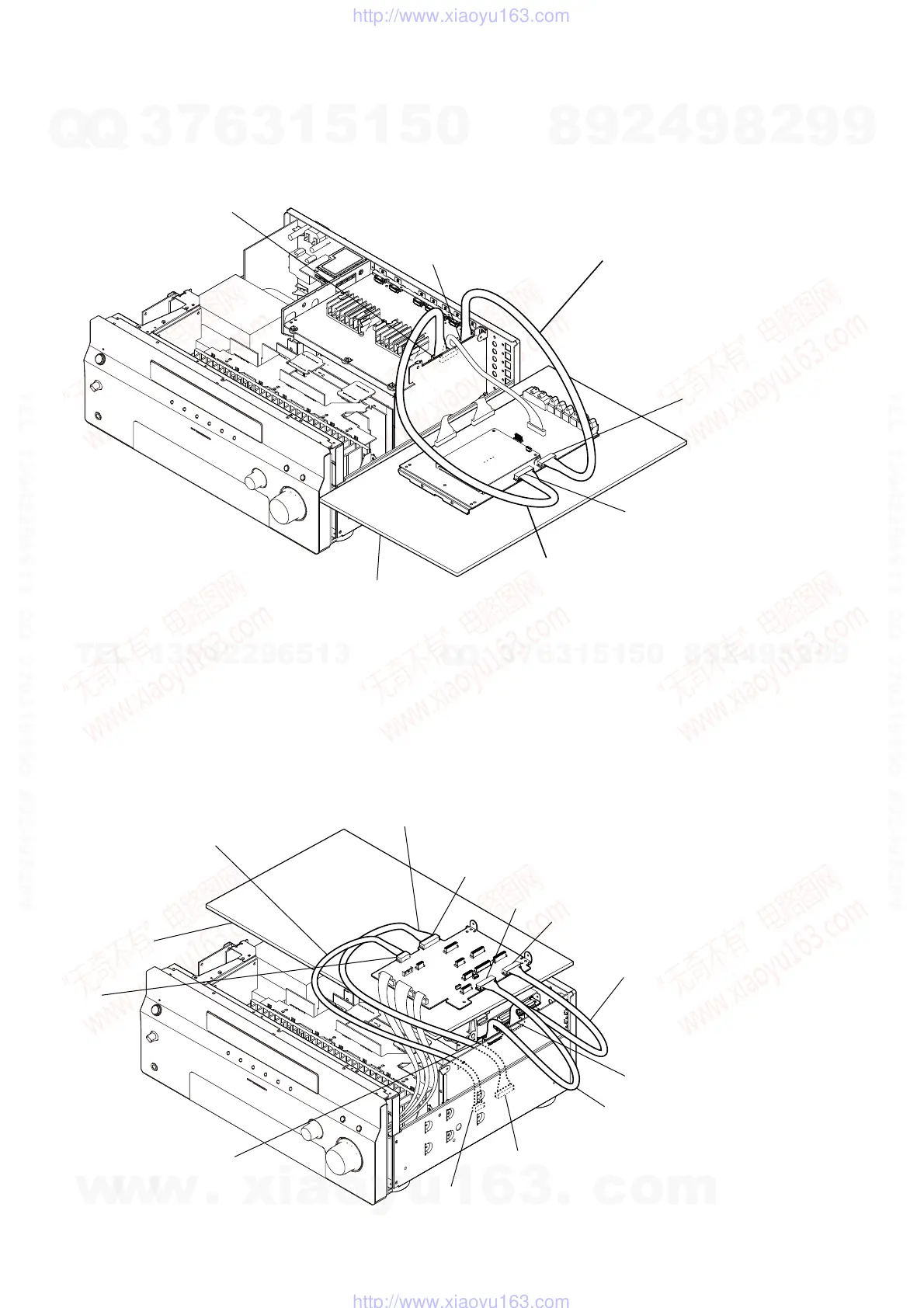

DIGITAL BOARD SERVICE POSITION
In checking the DIGITAL board, prepare jig (extension cable J-2501-259-A: 1.25 mm Pitch, 18 cores, Length 300 mm/J-2501-260-A: 1.25
mm Pitch, 20 cores, Length 300 mm).
Connect jig (extension cable J-2501-259-A)
to the DIGITAL board (CN2202)
and CONTROL board (CN2506).
CONTROL board
(CN2506)
DIGITAL board
(CN2205)
Connect jig (extension cable J-2501-260-A)
to the DIGITAL board (CN2205)
and CONTROL board (CN2501).
insulating sheet
DIGITAL board
(CN2202)
CONTROL board
(CN2501)
CONTROL BOARD SERVICE POSITION
In checking the CONTROL board, prepare jig (extension cable J-2501-255-A: 1.25 mm Pitch, 10 cores, Length 300 mm/J-2501-259-A:
1.25 mm Pitch, 18 cores, Length 300 mm/J-2501-260-A: 1.25 mm Pitch, 20 cores, Length 300 mm).
Connect jig (extension cable J-2501-260-A)
to the CONTROL board (CN2513)
and MAIN board (CN1005).
Connect jig (extension cable J-2501-255-A)
to the CONTROL board (CN2515)
and MAIN board (CN1006).
Connect jig (extension cable J-2501-259-A)
to the CONTROL board (CN2506)
and D CONNECT board (CN2404).
CONTROL board
(CN2513)
Connect jig (extension cable J-2501-260-A)
to the CONTROL board (CN2501)
and D CONNECT board (CN2406).
insulating sheet
MAIN board
(CN1006)
MAIN board
(CN1005)
CONTROL board
(CN2501)
CONTROL board
(CN2515)
D CONNECT board
(CN2405)
D CONNECT board
(CN2406)
CONTROL board
(CN2506)
