What is linked ABL function?
The ABL (Automatic Brightness Limiter) function is incorporated with the
projector. The ABL function prevents CRT burn by controlling the
brightness of the screen if it becomes too high.
If you connect the ABL LINK jacks of each projector when connecting
multiple projectors to display a malti-screen, the ABL functions on all
projectors once the ABL functions on any one projector. The linked ABL
function allows the malti-screen’s brightness uniform.
Setting up
Set ABL LINK in the ABL LINK menu to ON.
For details, see “The ABL LINK Menu” on page 54 (GB).
Using the Linked ABL Function

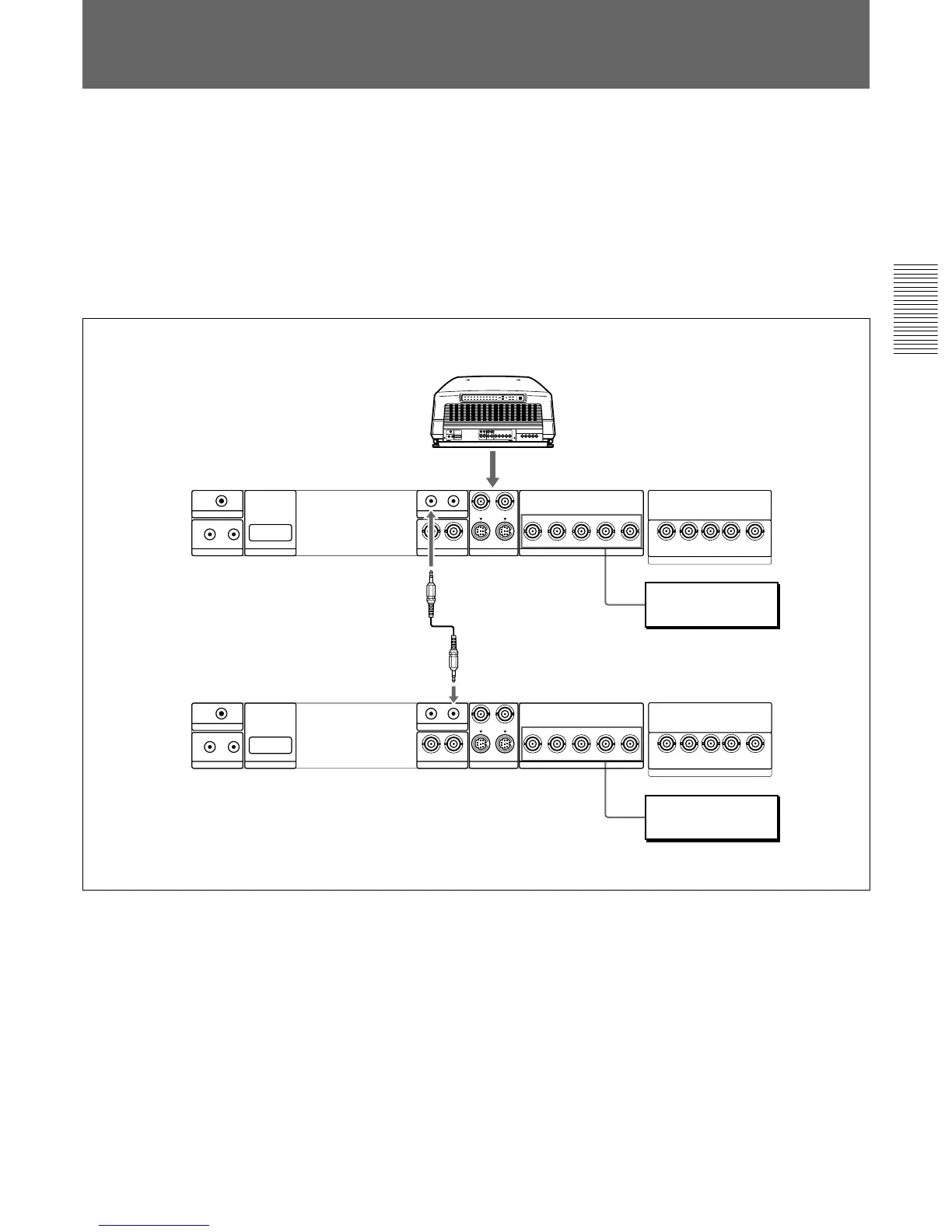

Rear
ABL LINK IN
ABL LINK OUT
Video equipment
Connecting cable with
miniplugs (not supplied)
Video equipment
Second projector
First projector
