Adjustments 63 (GB)
Adjustments

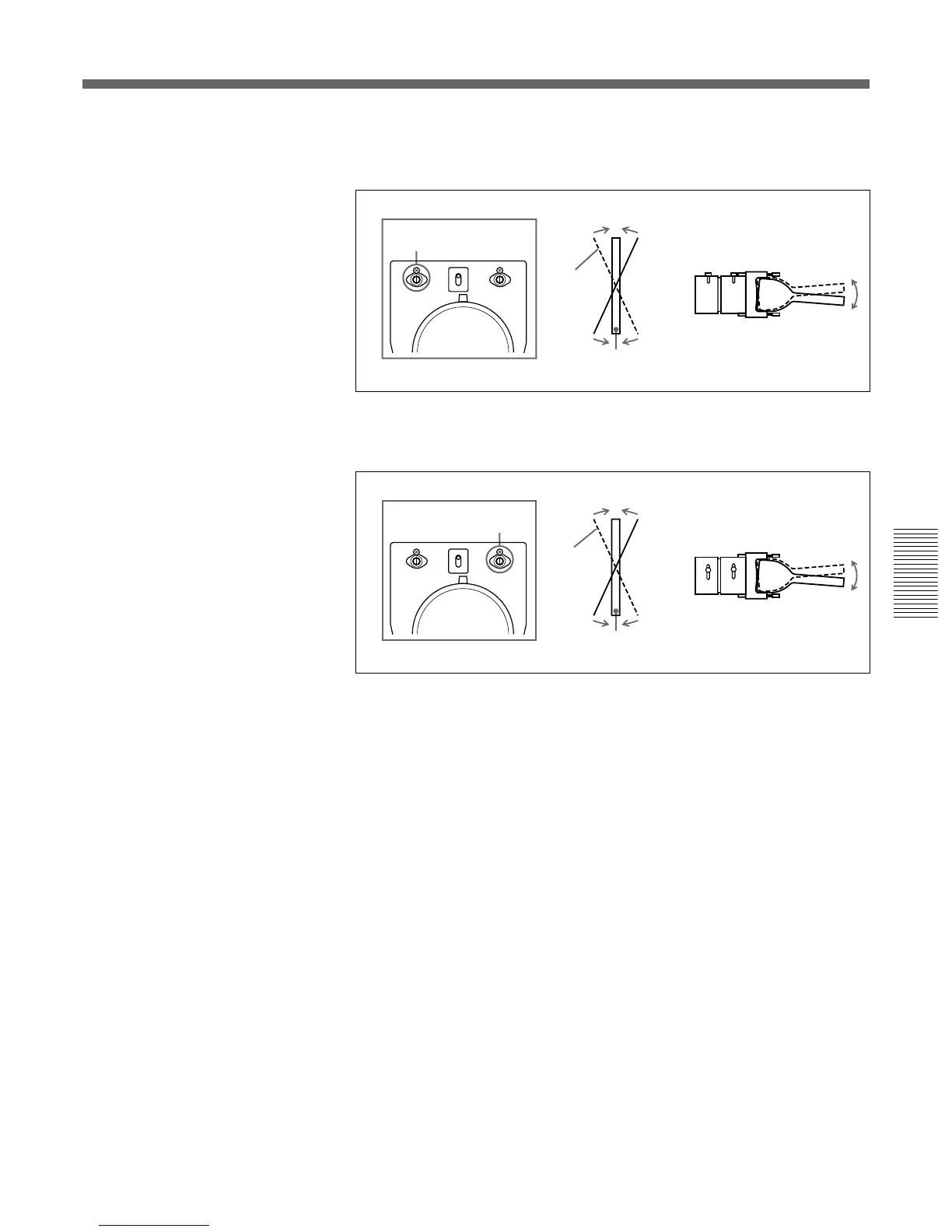

By turning the V screw, the CRT moves vertically to adjust the vertical tilt
of the focal surface.
By turning the H screw, the CRT moves horizontally to adjust the
horizontal tilt of the focal surface.
Repeat the above process until the upper and lower parts and the right and
left parts of the screen are in focus.
Proceed to the red lens focus adjustment if the green signal is
completely in focus.
Lens
B A
B
A
Moves vertically.
Moves horizontally.
D
C
D C
Right
Up
Screen (Side view)
V screw
H screw
Lens
Screen (Top view)
Focal
surface
Focal
surface
