Soredex CRANEX Novus e - Unit Dimensions; Appendix A. Technical Information

A-9
CRANEX Novus e Appendix A. Technical Information

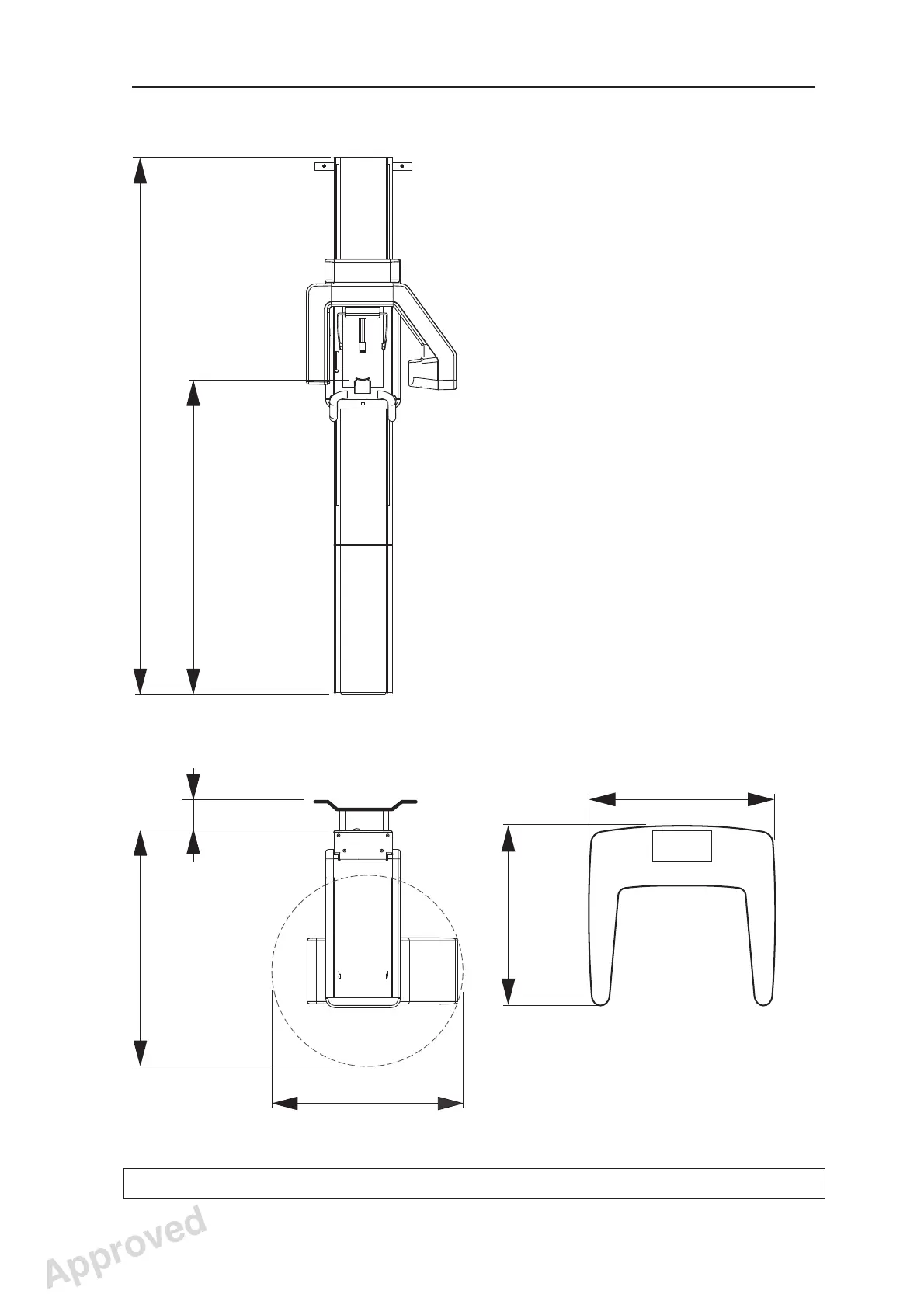

A.2 Unit dimensions
865 mm (34”)
865 mm (34”)
1085 mm (43”)
1085 mm (43”)
150 mm (6”)
150 mm (6”)
Standard
column leg
2315 mm
Short
column leg
2225 mm
(91.1”)
(87.6”)
Standard
column
leg
2315
mm
Short
column
leg
2225
mm
(91.1”)
(87.6”)
Standard
column leg
950 - 1750 mm
Short
column leg
860 - 1660 mm
(37.4 - 68.9”)
(33.9 - 65.4”)
Standard
column
leg
950
- 1750 mm
Short
column
leg
860
- 1660 mm
(37.4
- 68.9”)
(33.9
- 65.4”)
The height of the unit on the exhibition
stand is the same as the height of the
unit with the standard column leg
2315 mm (91.1”)
2315 mm (91.1”)
790 mm
(31”)
790 mm
(31”)
790 mm (31”)
Exhibition
stand
Exhibition
stand
