3.3 Taking Exposures
Panoramic - Adult, Child and Sectional

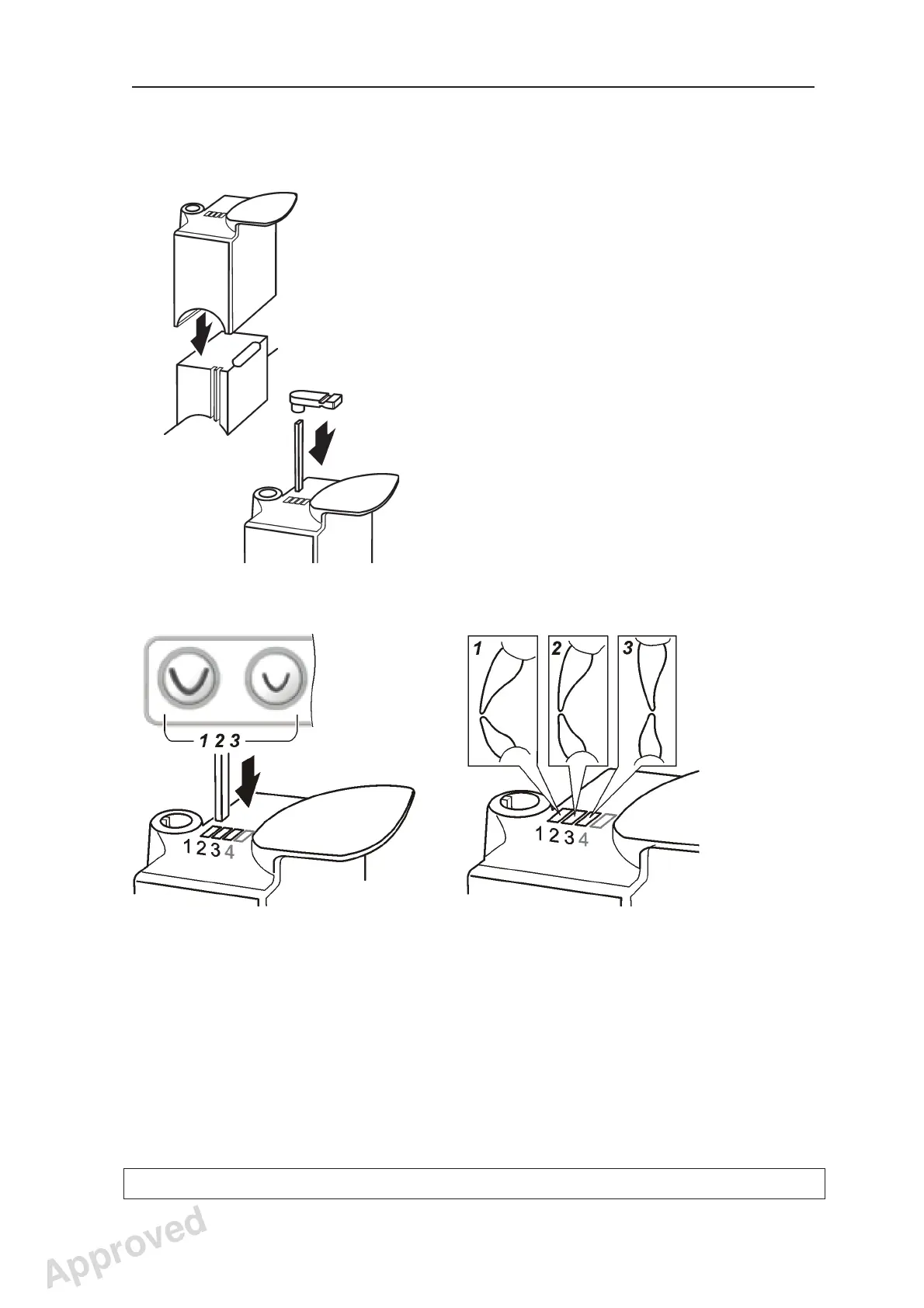

1. Slide the chin rest on to the support holder.
2. For dentate patients, attach the bite block to the
rod and then insert the rod and bite block into
the appropriate hole in the chin rest according to
the patient’s occlusion.
For normal occlusion insert the rod and bite
block into hole 2.
If the patient’s teeth protrude (angled outward),
insert the rod and bite block into hole 1.
If the patient’s teeth retrude (angled inward),
insert the rod and bite block into hole 3.
