Söring Arco-3000 - Module Arrangement Diagrams

25/08/2004 © Söring Service-Manual Arco- and RF-units
1
not valid for A-3000/ -2000
2
not valid for Arco-2000
-13-
3
not valid for MBC600
4
not valid for Arco-1000

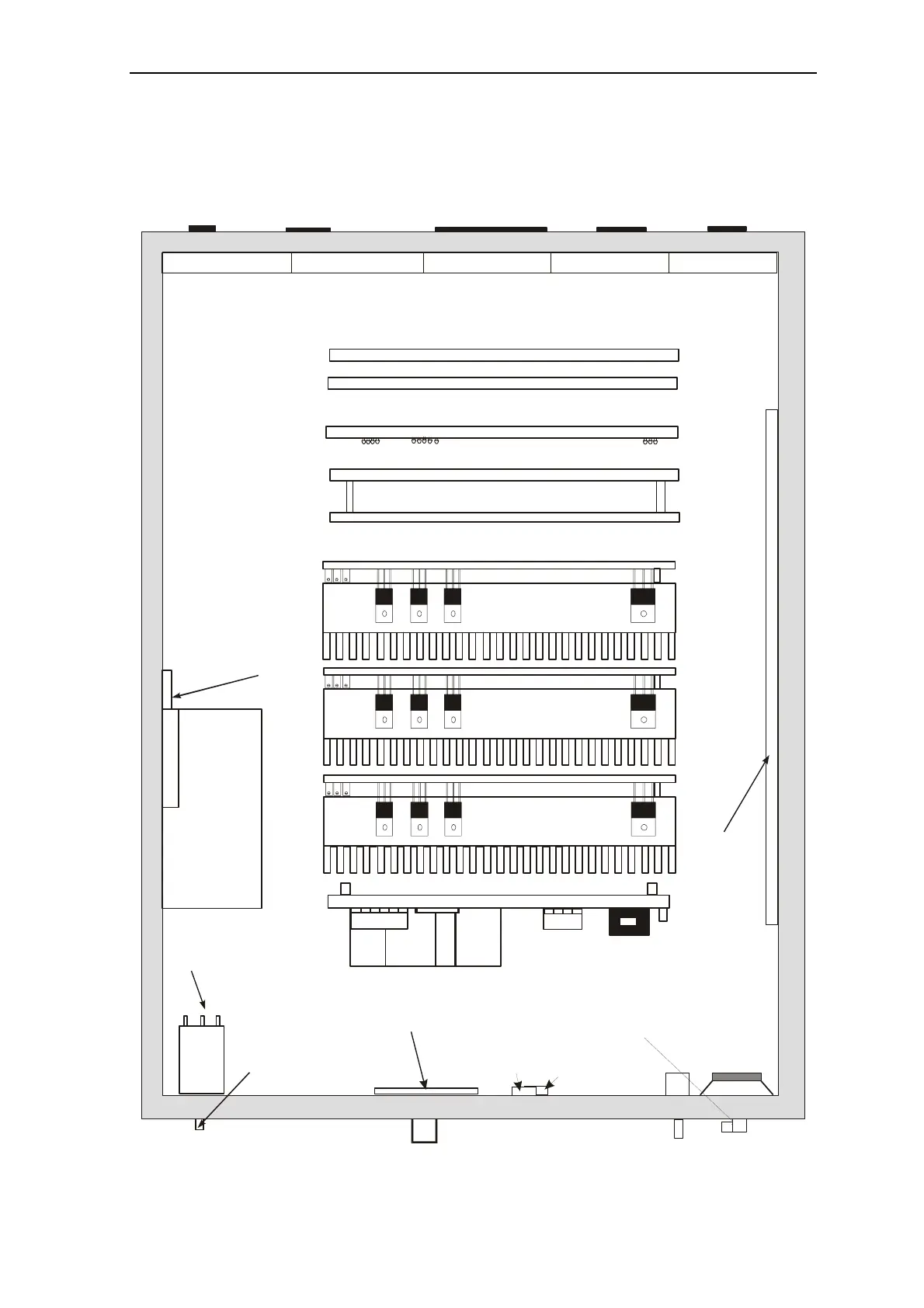

Arrangement of modules of the Arco-3000
single footswitch
Loudspeaker
mains transformer
mains filter
mains board
(low power supply,
mains relays,
screening)
Gascontrol-
board
CPU
Handpiece recognition
Frontpanel (modular design)
MG Mono
MG Mono
MG Mono
MA Argon
BI Arco 3000 / M
Groundpin
Cutmodule
Coagulatormodule
High power supply
rectifier
Mains switch
PE-socket
Monopolar- socket
Argon- socket
Gassystem
double footswitch
Gasconnection
LoudspeakerPotentiometer
Bipolar- socket
Synchroboard
with BNC socket
RF-Output Module
output unit (assignment relays,
PE-monitoring, Bipo-recognition)
Test resistor
