Söring Arco-3000 - Arrangement of Modules of the Arco-1000

25/08/2004 © Söring Service-Manual Arco- and RF-units
1
not valid for A-3000/ -2000
2
not valid for Arco-2000
-15-
3
not valid for MBC600
4
not valid for Arco-1000

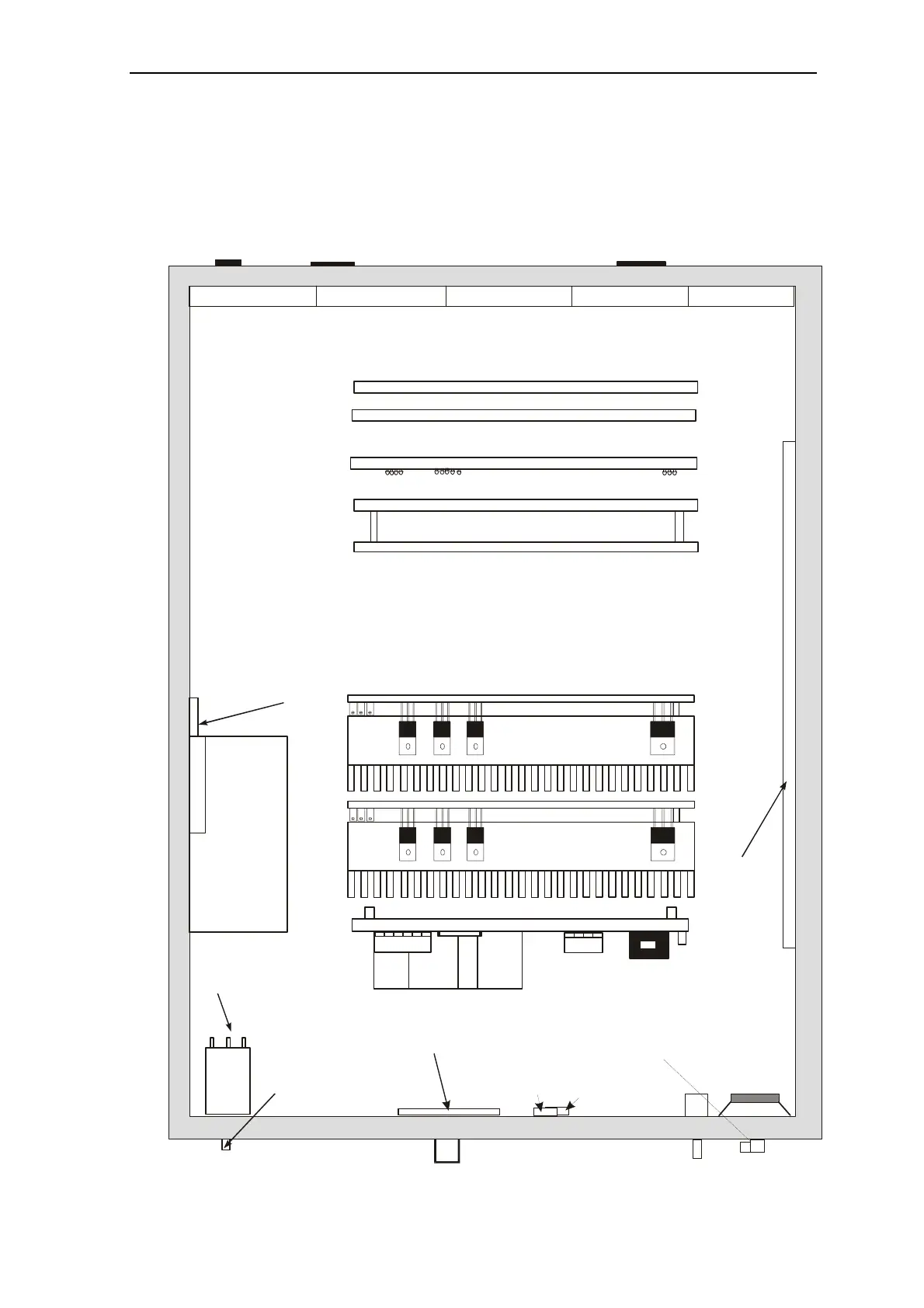

Arrangement of modules of the Arco-1000
single footswitch
Loudspeaker
mains transformer
mains filter
mains board
(low power supply,
mains relays,
screening)
Gascontrol-
board
CPU
Handpiece recognition
Frontpanel (modular design)
MG Mono
MA Argon
BI 600/2000
Groundpin
Coagulatormodule
High power supply
rectifier
Mains switch
PE-socket
Argon- socket
Gassystem
double footswitch
Gasconnection
LoudspeakerPotentiometer
Synchroboard
with BNC socket
RF-Output Module
output unit (assignment relays,
PE-monitoring, Bipo-recognition)
Test resistor
