Söring Arco-3000 - Power Diagram Cutting; Power Diagram Blend

25/08/2004 © Söring Service-Manual Arco- and RF-units
1
not valid for A-3000/ -2000
2
not valid for Arco-2000
-75-
3
not valid for MBC600
4
not valid for Arco-1000

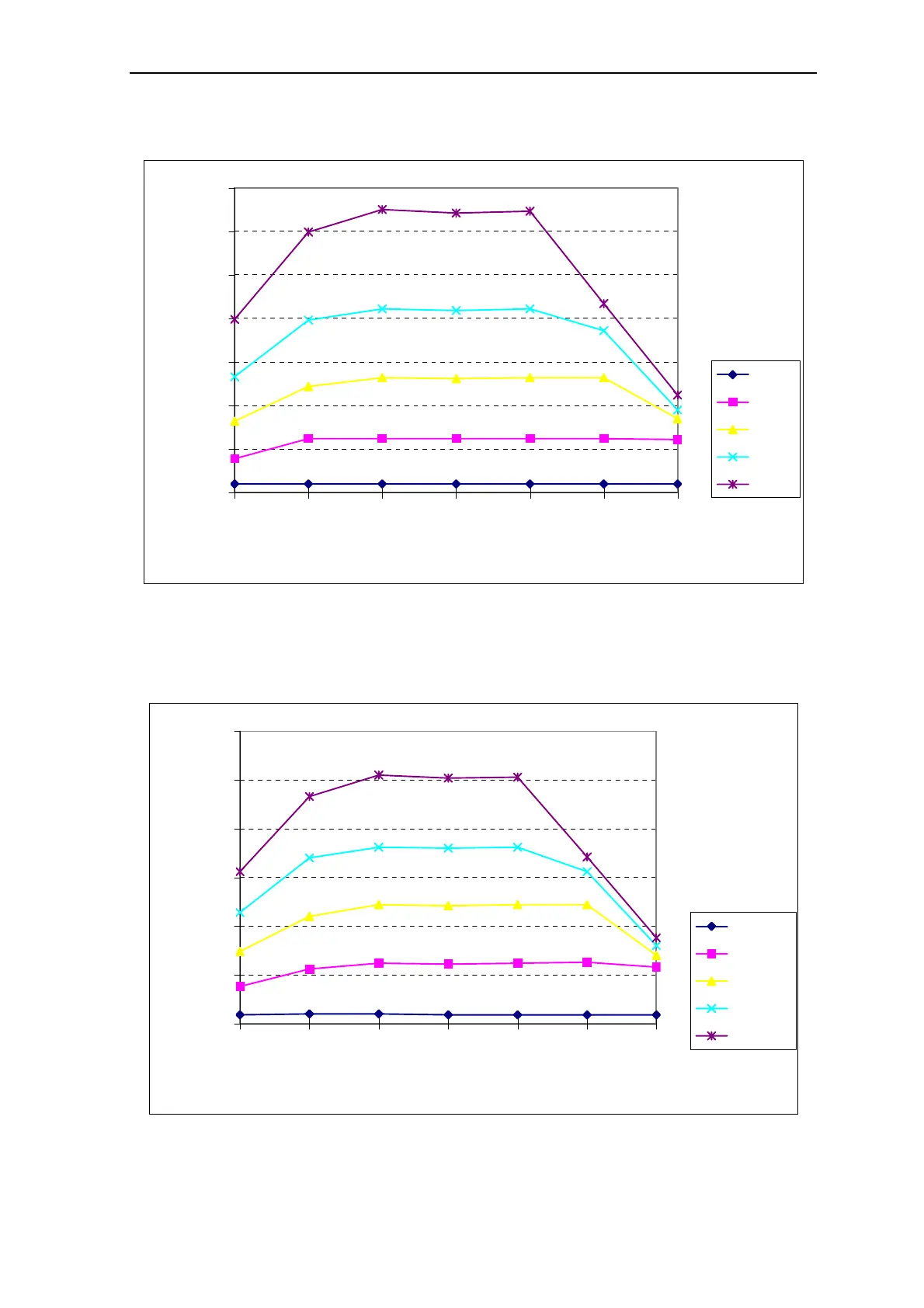

Power diagram Cutting
4
0
50
100
150
200
250
300
350
100 150 200 400 600 1000 2000
Resistance in Ohm
Power in Watt
Cut 1
Cut 2
Cut 3
Cut 4
Cut 5
Power diagram Blend
4
0
50
100
150
200
250
300
100 150 200 400 600 1000 2000
Resistance in Ohm
Power in Watt
Blend 1
Blend 2
Blend 3
Blend 4
Blend 5
