Söring Arco-3000 - Power Diagram TUR; Power Diagram Pulse

25/08/2004 © Söring Service-Manual Arco- and RF-units
1
not valid for A-3000/ -2000
2
not valid for Arco-2000
-76-
3
not valid for MBC600
4
not valid for Arco-1000

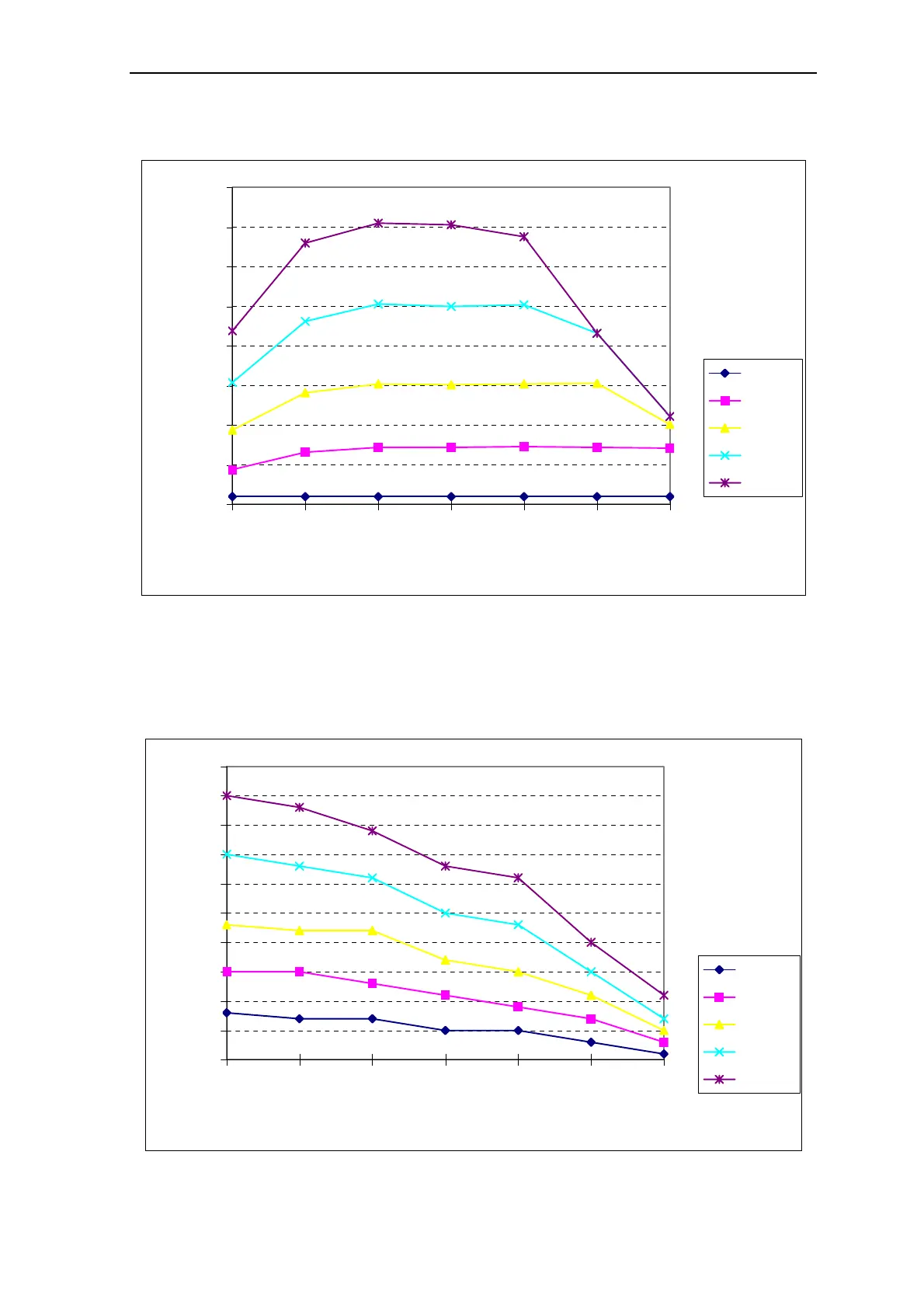

Power diagram TUR
4
0
50
100
150
200
250
300
350
400
100 150 200 400 600 1000 2000
Resistance in Ohm
Power in Watt
TUR 1
TUR 2
TUR 3
TUR 4
TUR 5
Power diagram Pulse
4
0
5
10
15
20
25
30
35
40
45
50
100 150 200 400 600 1000 2000
Resistance in Ohm
Power in Watt
Pulse 1
Pulse 2
Pulse 3
Pulse 4
Pulse 5
