Söring Arco-3000 - Power Diagram TUR-Pulse

25/08/2004 © Söring Service-Manual Arco- and RF-units
1
not valid for A-3000/ -2000
2
not valid for Arco-2000
-77-
3
not valid for MBC600
4
not valid for Arco-1000

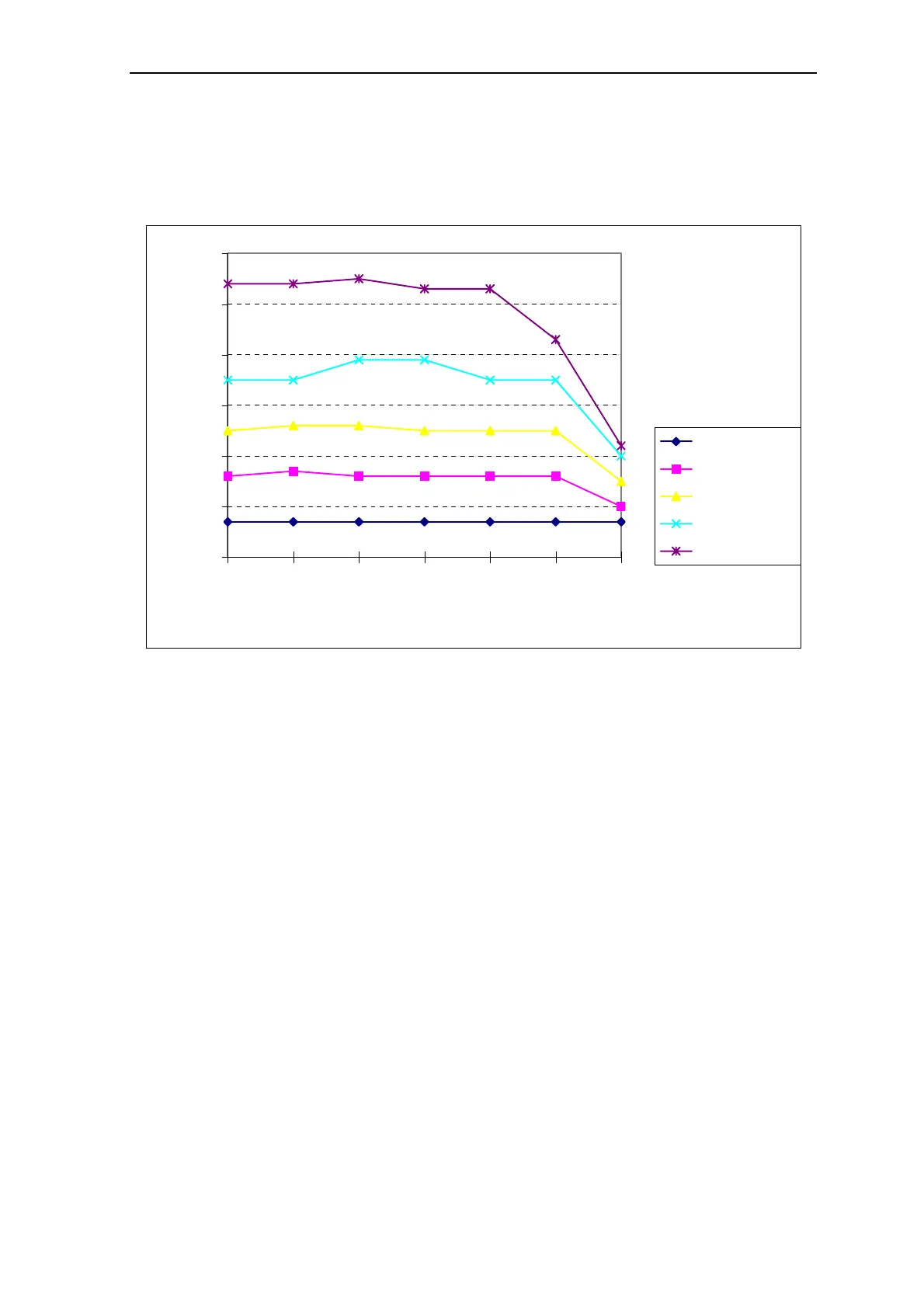

Power diagram TUR-Pulse
4
0
10
20
30
40
50
60
100 150 200 400 600 1000 2000
Resistance in Ohm
Power in Watt
TUR-Pulse 1
TUR-Pulse 2
TUR-Pulse 3
TUR-Pulse 4
TUR-Pulse 5
