Soyer BMS-8NV - Device Controls and Operating Indicators

Description of BMS-8N(V) stud welding devices
Operating Instructions Soyer Bolzenschweißtechnik 19
6.3 Overview of the controls

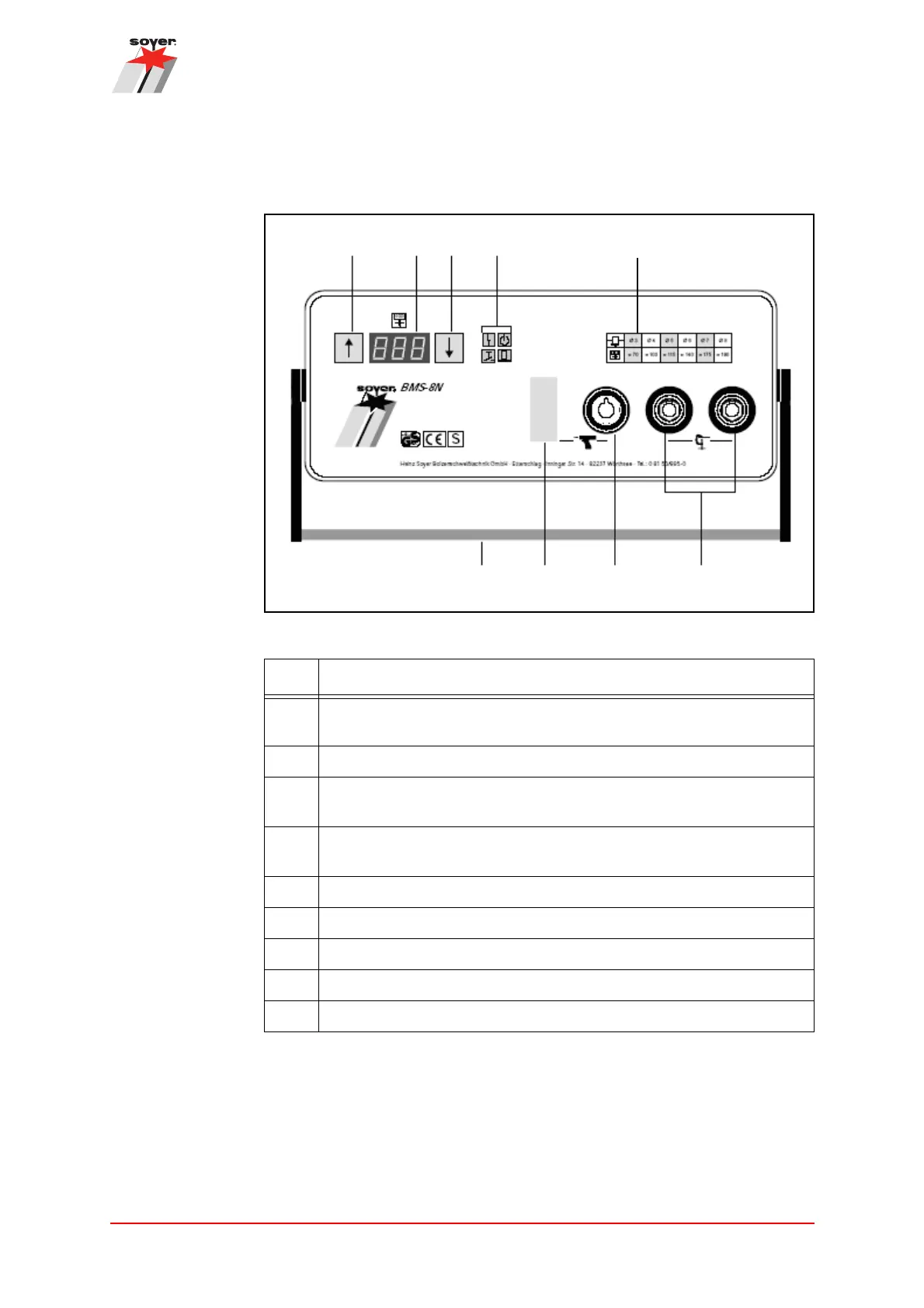

Figure 1: Overview of the front panel
Item Designation
a Up arrow key to increase the charging voltage or the stud diameter
(depending on the display settings).
b Display for showing the charging voltage or the stud diameter.
c Up arrow key to decrease the charging voltage or the stud diameter
(depending on the display settings).
d Display of operating states, see chapter “6.3.2 Displaying the operat-
ing states” on page 22.
e Support table for the selection of the charging voltage fitting the stud.
f Carrying handle.
g Socket for the connection of the control cable (stud welding gun).
h Socket for the connection of the welding cable (stud welding gun).
i Connector for the connection of the earth cable.
