7. Description of PS-0K stud welding gun

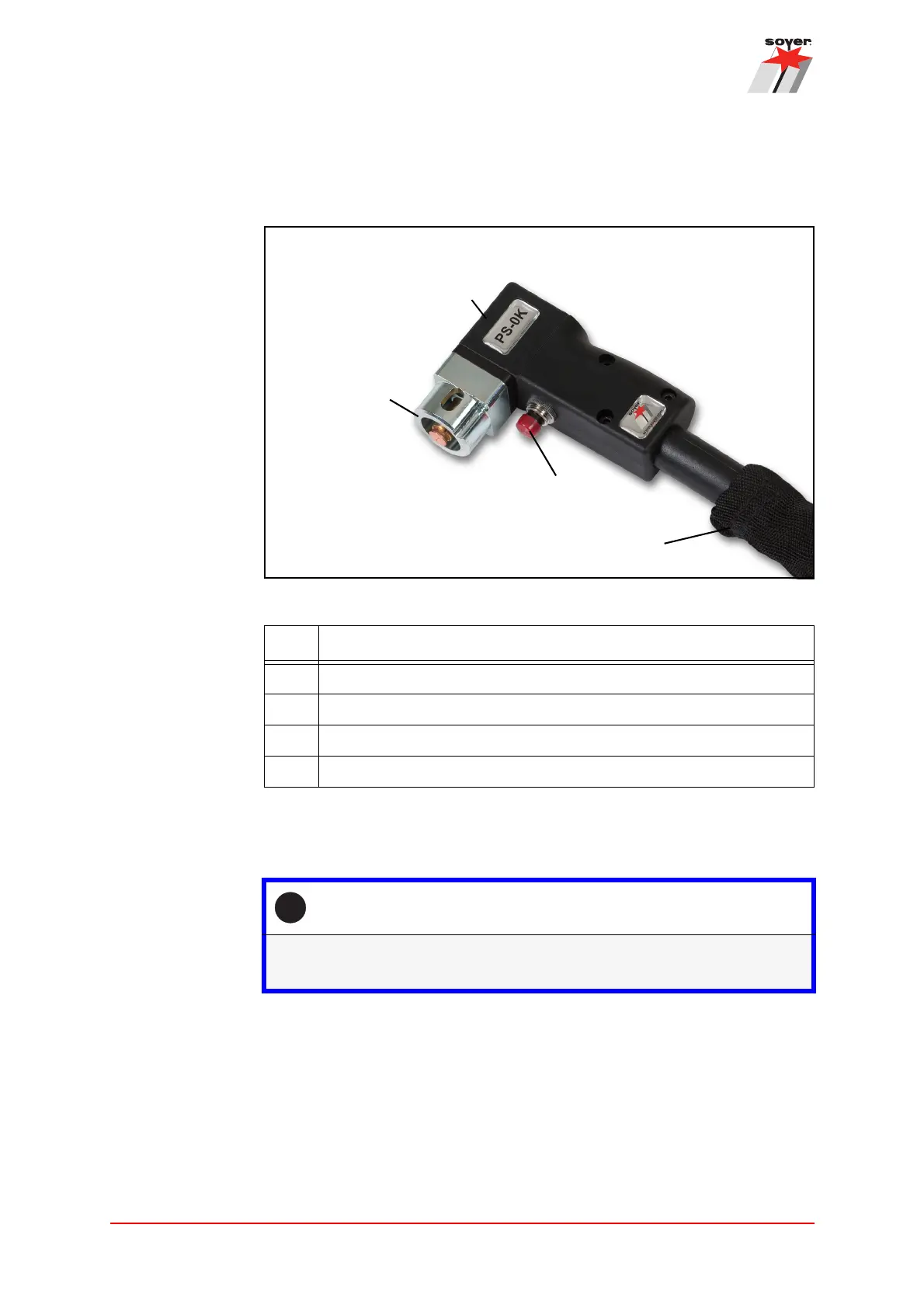

Figure 5: PS-0K stud welding gun
Due to a projection on the support tube and a spring in the gun, the stud of this
gun is pressed firmly to the workpiece (contact gun).
The stud is not lifted before welding.
Item Designation
a PS-0K stud welding gun, contact gun without lifting magnet
b Support tube
c Release button
d Power and control cable for connection to the stud welding device.
The PS-0K stud welding gun may only be operated with the stud welding
devices specified in the technical data.
