Description of the PS-3K and PS-3K Stativ stud welding guns
Operating Instructions Soyer Bolzenschweißtechnik 35
10. Description of the PS-3K and PS-3K Stativ stud
welding guns

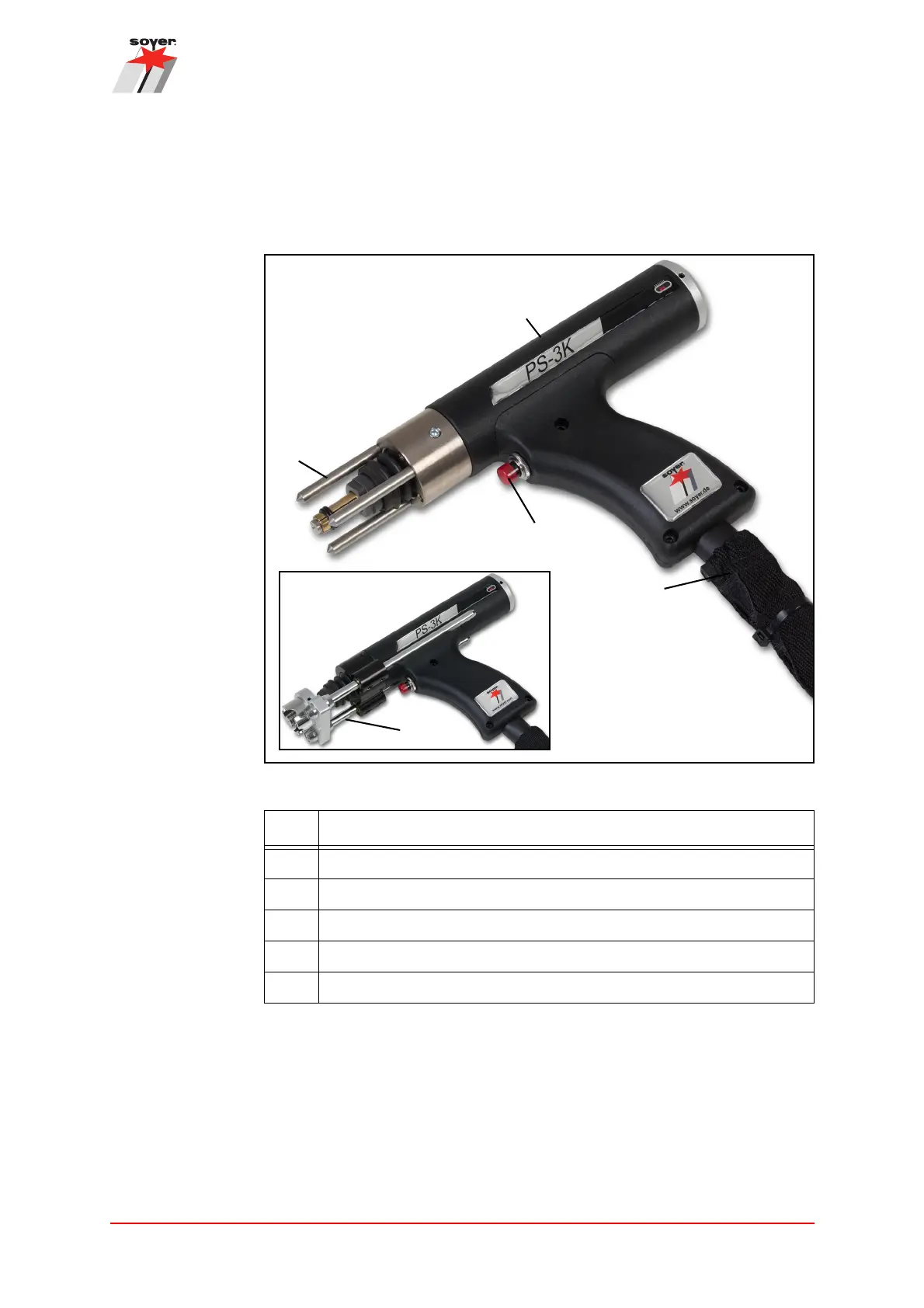

Figure 8: PS-3K and PS-3K Stativ stud welding guns
Due to a projection on the gun legs and a spring in the gun, the stud of this gun
is pressed firmly to the workpiece (contact gun).
The stud is not lifted before welding.
Item Designation
a PS-3K stud welding gun, contact gun without lifting magnet
bGun legs
c Release button
d Power and control cable for connection with the stud welding device.
e PS-3K stud welding gun with support
a
d
c
b
e
