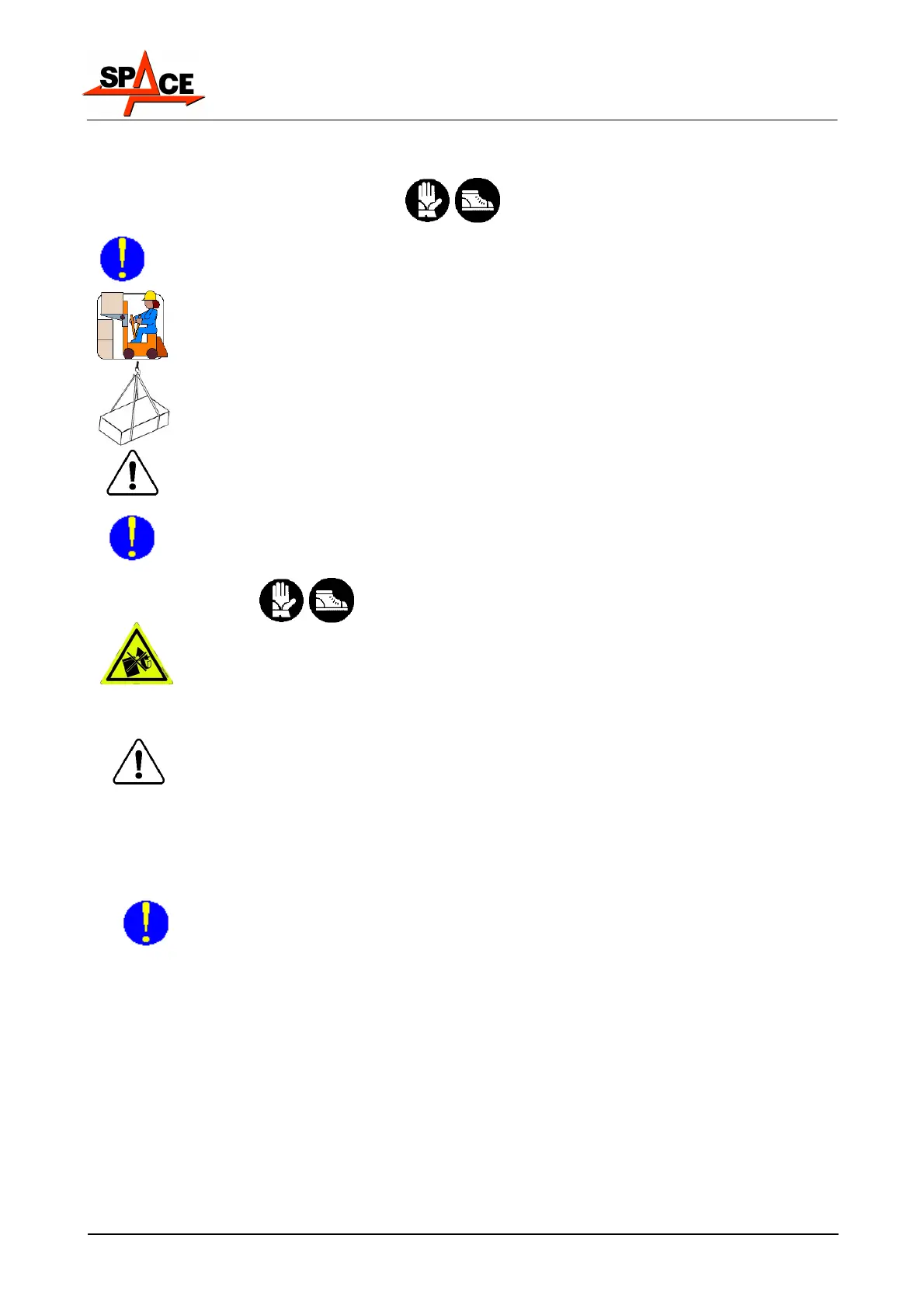

4 TRANSPORT AND INSTALLATION
4.1 Transport and unpacking
The machine is supplied packed in a box fastened to a pallet to facilitate
transport. To transport the machine to the point where it is to be installed, use a
lifting and transport mechanism such as a fork-lift truck or lift with forks.
The lifting device must have a lifting capacity equal at least to the weight of the
packed machine. During transport, prevent the lifted machine from swinging.
The machine must be stored in its packaging, in a dry and ventilated
environment (with a temperature between -25° +55°C).
Never overturn or position the packaging horizontally. The pallet must always
rest on a flat and solid surface. Do not stack other packages on top of the
packaging. Always position so the instructions can be easily read.
DURING UNPACKING, ALWAYS WEAR GLOVES TO PREVENT ANY INJURY
CAUSED BY CONTACT WITH PACKAGING MATERIAL (NAILS, ETC.).
Make sure you have received all standard parts as previously listed.
The packaging material (plastic bags, polystyrene, nails, screws, wood, etc.) must
be collected up and disposed of through authorised channels, except for the
pallet, which could be used again for subsequent machine handling.
4.2 Installation
Position the wheel balancer where this is to be used. Never lift the machine by
means of the shaft.
Install the machine in a dry, covered and well-lit place, possibly closed or
protected against the elements. Before positioning the machine, make sure the
place chosen complies with applicable safety regulations and check the
minimum distances from walls or other obstacles (see Figure 1).
The position must be such as to allow the operator to see the area around the
machine. During operation in fact, the operator must make sure there is no one
or nothing in the vicinity of the machine that could represent a hazard.
The characteristics of the machine operating environment must be maintained
within the following limits:
- temperature: 0° + 45° C ; relative humidity: 30 ÷ 90 % (without dew);
The wheel balancer can operate on any solid and flat surface.
Make sure the 4 support points are resting properly on the floor and if necessary
shim.
The machine is best secured to the floor at the 4 above anchor points (Figure 1).
Anchoring is mandatory if wheels weighing more than 30 kg are used; use floor
anchors for M8 x 80 mm screws.
• drill 4 x 10 mm dia. holes opposite the holes in the page;
• fit the anchors and install the machine so this coincides with the holes made
and then tighten the screws (torque wrench setting: about 22 Nm).
