Space ER 200 - Models Er150 - Er160 - Er165

INSTRUCTION MANUAL
SPACE s.r.l.
ER 200 - ER 220
ER150 - ER160 - ER165
Code M0076 - rev.1.6
(04/2005)
Page 6/ 40 SPACE s.r.l. – 10090 Trana (TO) Via Sangano, 48
Tel. (+39) 011/ 933.88.65 – Fax (+39) 011/ 933.88.64
e-mail: info@spacetest.com

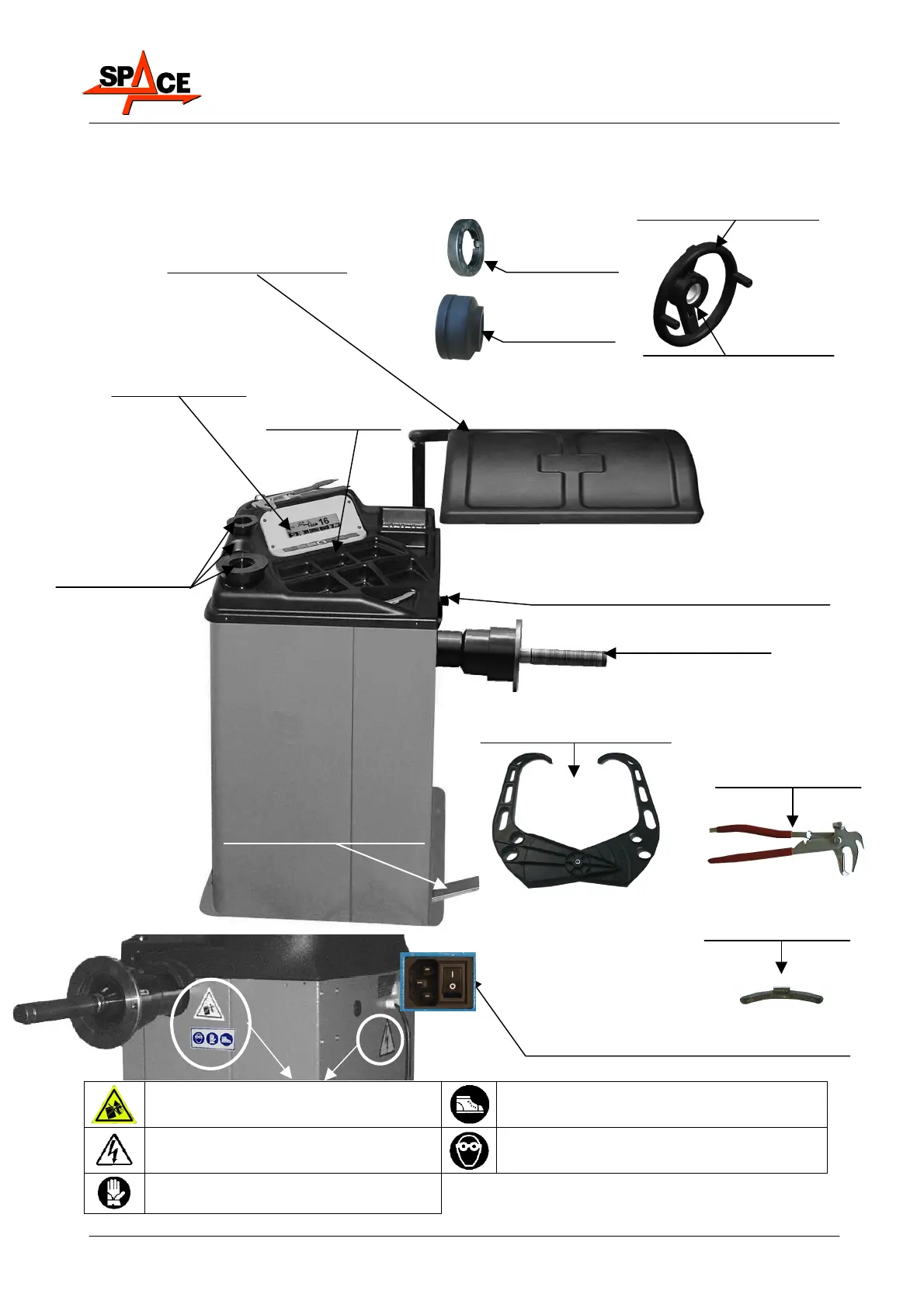

3.2 Models ER150 - ER160 - ER165
PEDALE BRAKE
(MOD. ER150 ONLY)
DISPLAY SCREEN
INTEGRATED IN THE
WEIGHT HOLDER
SHAFT
ROD WITH RULE FOR MEASURING THE
DISTANCE OF THE INSIDE FLANK OF THE RIM
(IN INITIAL POSITION)
WEIGHT HOLDER
SMALL, MEDIUM
AND LARGE CONE
PROTECTION
GUARD (RAISED)
ON MOD. ER165 ONLY
WEIGHT PLIERS
LOCKNUT
LEVER FOR QUICK
ENGAGEMENT/DISENGAGEMENT
MOD.ER160/ ER165 ONLY
PRESSURE
RING
GAUGE FOR MEASURING RIM
WIDTH
CALIBRATION
WEIGHT (100g)
PROTECTION
CAP
MASTER SWITCH (ON REAR OF WHEEL
BALANCER)
Caution: Never lift the machine by means
of the shaft
Wear work shoes
Shock hazard Wear work goggles
Wear work gloves
