5 FITTING THE WHEEL ON THE SHAFT
To achieve perfect balancing, the wheel must be carefully and properly fitted on the shaft.
Imperfect centring will inevitably cause unbalances.
Most important is that original cones and accessories are used. made specifically for
use on the wheel balancer.

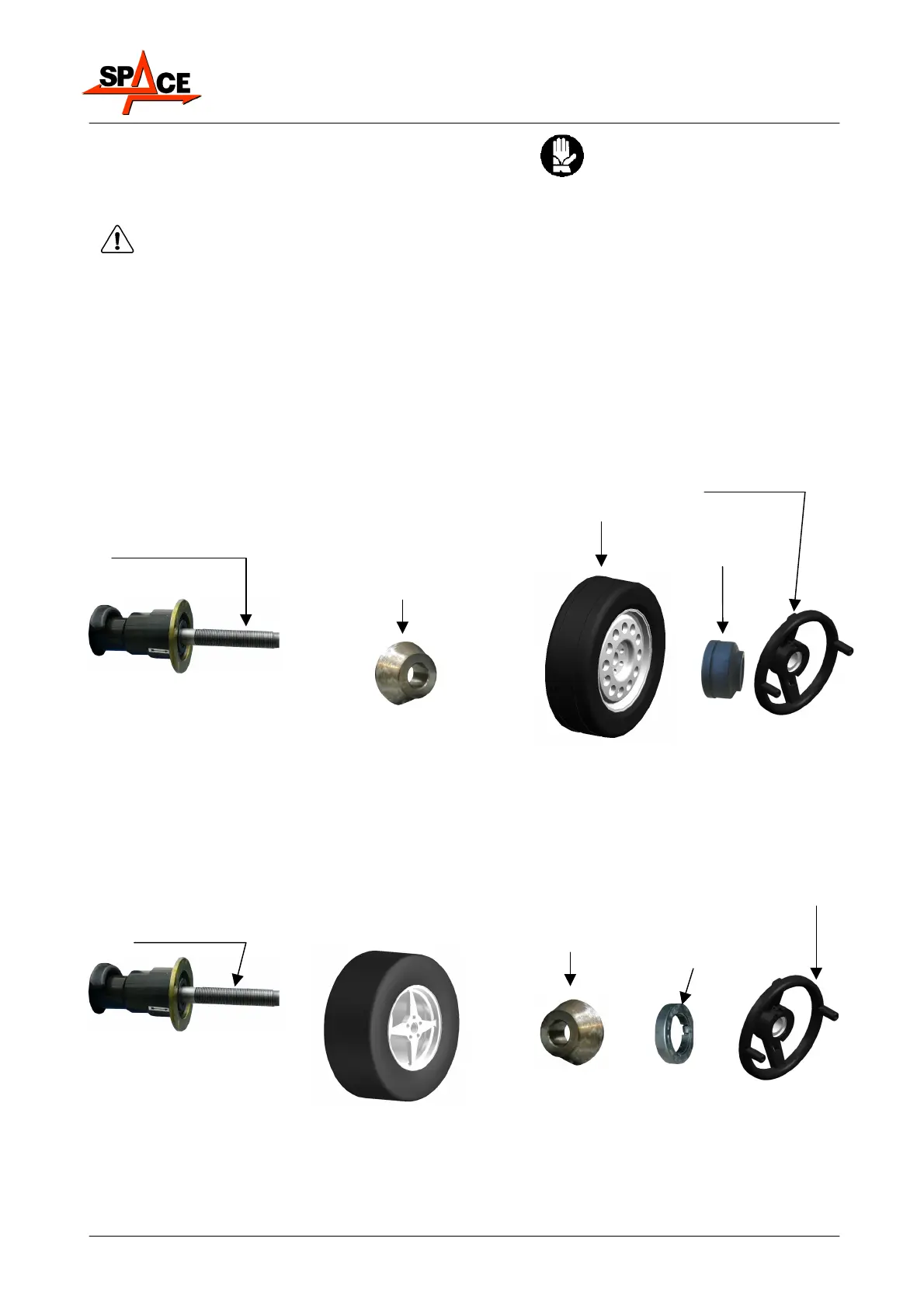

Wheel fitting using the cones provided is illustrated below.
For alternative fittings, using optional accessories, refer to the special instructions provided
separately.
1. Remove any type of
foreign body from the
wheel: already-existing
weights, stones and
mud, and make sure
the shaft and the rim
centring area are clean
before fitting the wheel
on the shaft.
2. Carefully choose the cone
most suitable for the wheel to
be balanced. These
accessories must be
selected according to the
shape of the rim.
Carefully position the wheel
using the cone (otherwise
this could seize) until this
rests against the support
flange.
3.
Fit the wheel
with the inner
side of the rim
towards the
wheel balancer
and against the
cone
.
STANDARD WHEEL
4. Fit the protection
casing in the
locknut and
fasten against the
wheel.
Some aluminium wheels, with very high centring, must be fitted with the cone outside the
wheel.
1. Clean the shaft before
fitting the wheel.
2. Fit the wheel with the
outside of the rim
towards the wheel
balancer, until the wheel
is up against the support
flange.
3. Fit the cone with
the narrowest
part turned
towards the
wheel
4. Fit the grip-ring in the
locknut and secure
the cone.
ALUMINIUM WHEEL
WHEEL FITTING
CONE
PRESSURE
RING
LOCKNUT
SHAFT
SHAFT
WHEEL FITTING CONE
LOCKNUT
PROTECTION
CAP
