10 MATCHING PROCEDURE (Rim-tyre optimisation)
Only for models ER220 / ER160 / ER165
The Matching procedure offsets strong unbalance, reducing the weight quantity to be fitted
on the wheel to achieve balancing. This procedure permits reducing unbalance as much as
possible by offsetting the tyre unbalance with that of the rim.

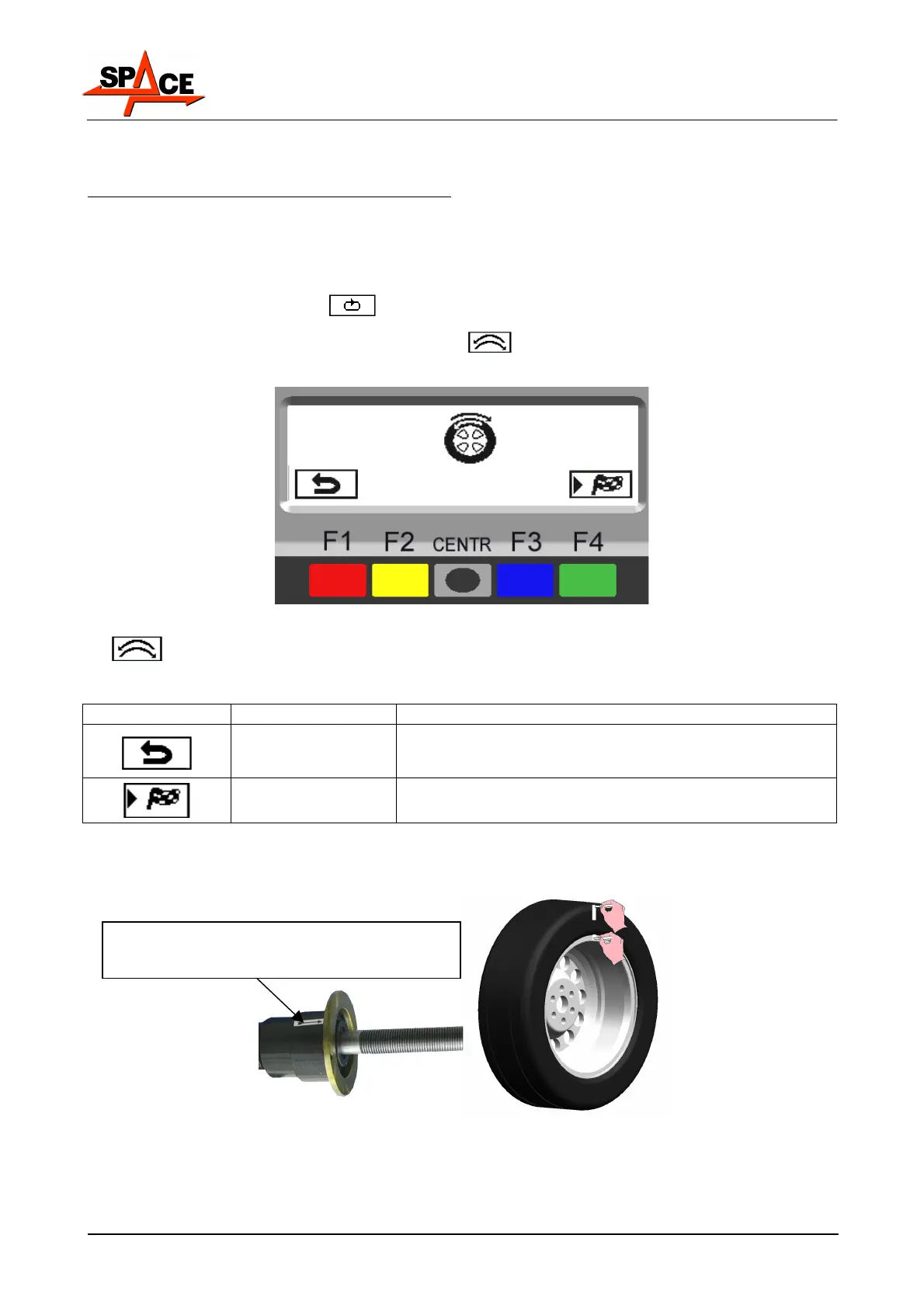

After displaying any unbalance measurement (see example in Figure 19 on page 20) press the
key corresponding to the icon
. The display screen will show a new key sequence.
Press the key relating to the MATCHING function (*).The system displays the page in Figure
39. The
display screen instructs to perform rim-tyre rotation.
Figure 39
(*) : The MATCHING operation can only be performed if the static unbalance is > 30g.
If it is less than this, the key relating to this operation is not displayed.
ICON KEY DESCRIPTION
RED (F1) Return to page before measurements
GREEN (F4) In models ER220/ER160/ER165, performs spin
Make a reference mark, using chalk for instance, of the position of the rim and tyre,
remaining in line with the arrow on the flange, so as to be able to fit the rim back on in the
same position.
Make a reference mark on the rim and tyre, in
line with the arrow on the flange
.
