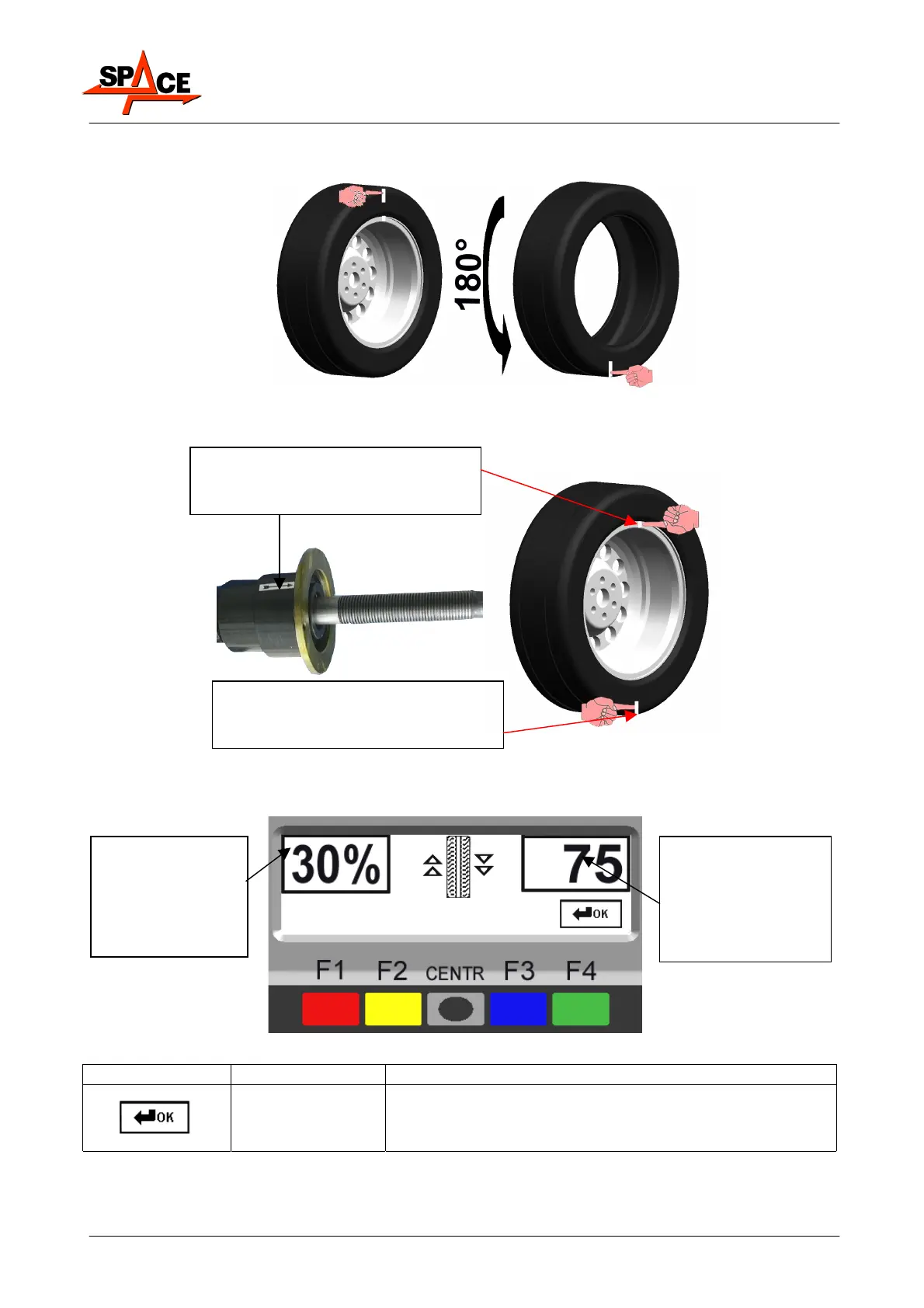

Remove the wheel from the wheel balancer. Remove the tyre and turn it on the rim by 180°.
Fit the wheel back on the wheel balancer, positioning the reference mark on the rim in line
with the arrow on the flange.
Perform the second spin by pressing the “F4 key”. At the end of the spin, the following page
appears on the display screen:
Figure 40
ICON KEY DESCRIPTION
GREEN (F4)
Displays the page with unbalance values again
.
First static unbalance
in grams. This can
be reduced by
making a further
rotation of the wheel
and rim
Percentage of
possible unbalance
reduction
compared to first
wheel situation
POSITION THE REFERENCE MARK IN
LINE WITH THE ARROW ON THE
FLANGE.
POSITION THE REFERENCE MARK ON
THE OPPOSITE SIDE TO THE ARROW
ON THE FLANGE
