Cancel the previously made reference marks.

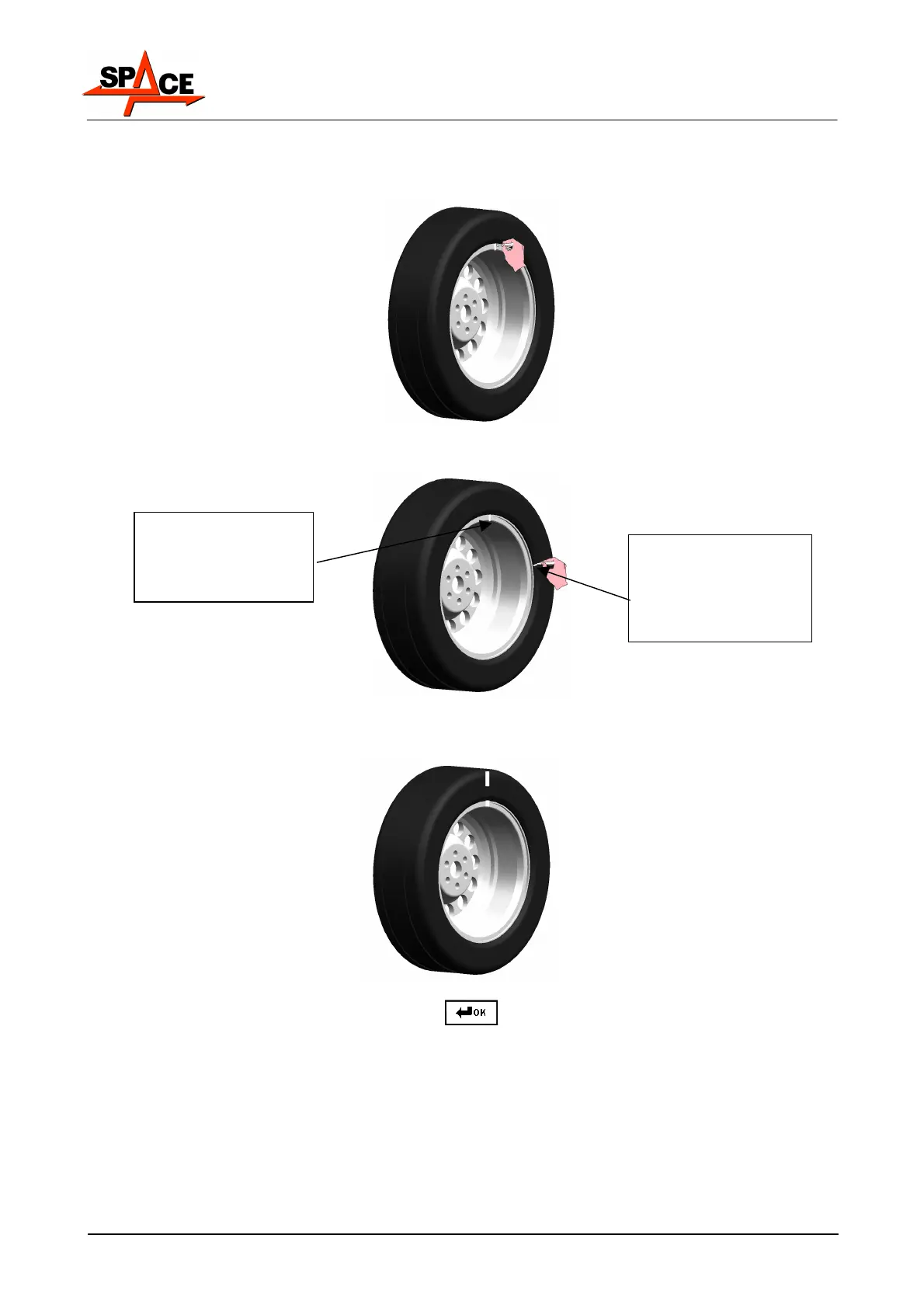

Position the wheel following the arrows on the display screen. Look at the arrows on the left.
When they are fully coloured (see para. 7.3.2 on page 21) make the first reference mark on
the rim.
Turn the wheel again until second position is reached. Look at the arrows on the right. When
these are completely coloured, make the second reference mark on the tyre.
Remove the wheel from the wheel balancer. Remove the wheel and turn the tyre on the rim so
the two points coincide with the wheel when fitted back on the wheel balancer. The two
reference marks must be in line with the arrow on the flange.
Press the green key corresponding to icon
on the keyboard. The system will again
display the page with previous unbalance values.
Now the outstanding minimum unbalance can be corrected using the weights at disposal.
FIRST REFERENCE
MARK ON THE TYRE
after second wheel
spin.
SECOND
REFERENCE MARK
ON THE TYRE
after second wheel
spin.
