The "acquired dimension" indication is given by the second measurement point indication
arrow, which goes from white to black.
Enter the wheel diameter (Figure 12) by selecting the “PLUS”
or “MINUS” key
until the desired value is achieved. Press the "CENTRE key" to confirm.

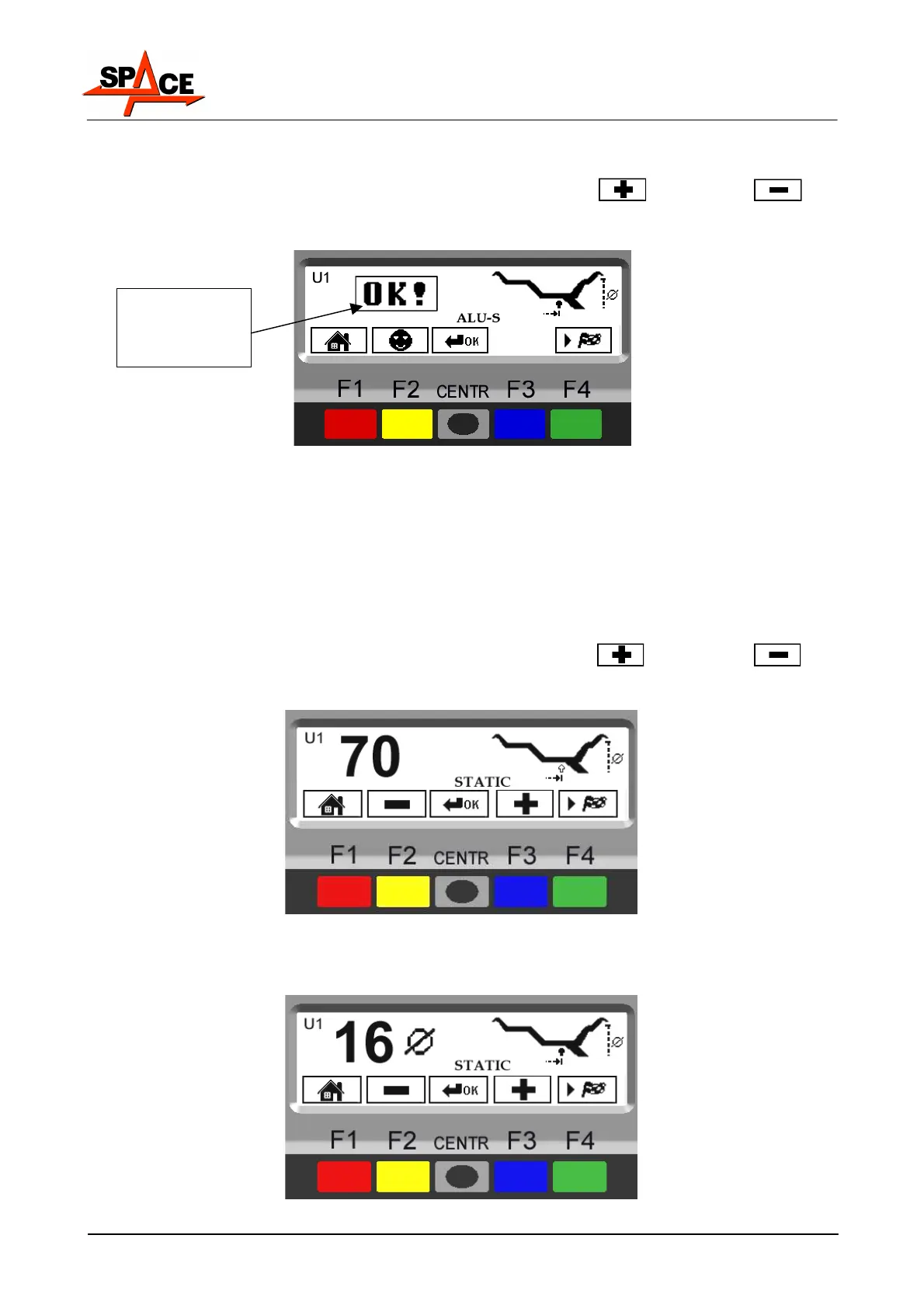

The program will show the page in Figure 13.
Figure 13
To display all the measurements entered, press the "CENTRE key" several times.
Press the “F4 key” to start the spin.
7.1.3 Manual setting of wheel dimensions for static correction
Select the STATIC function as described in para. 7.4 on page 22 and press the "CENTRE key"
to confirm and enter the measurements.
The display screen shows Figure 14.
Move the graduated scale to the position where the weight is to be fitted. Read the value to be
set on the scale. Enter the distance by selecting the “PLUS”
or “MINUS” key
until the desired value is achieved.
Press the “CENTRE key” to confirm.
Figure 14
The "dimension acquired" indication is shown by the measurement point indication arrow
which goes from white to black.
Figure 15
Dimensions
entered and
confirmed
